GB
3

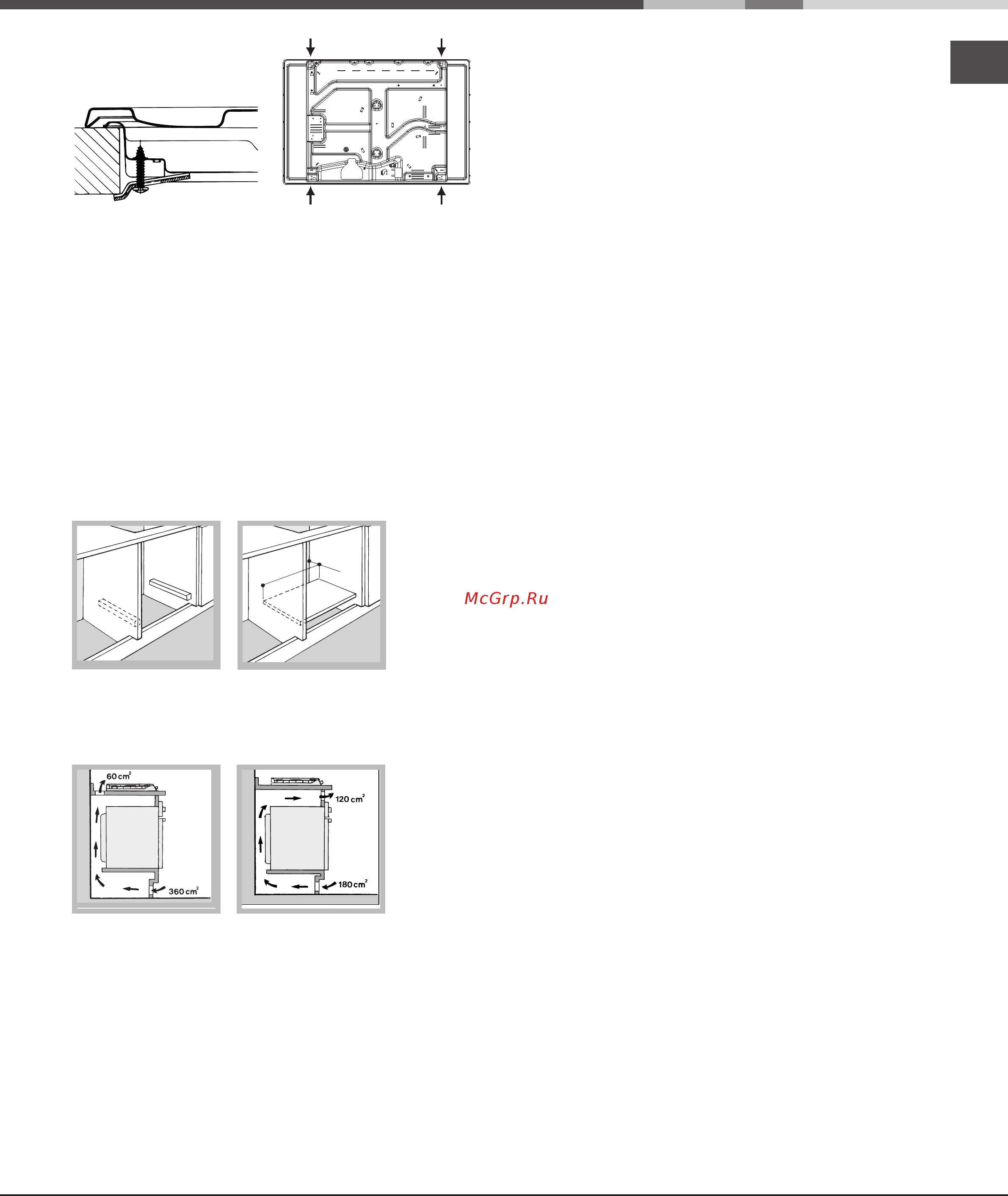

Hooking position Back
for top H=40 mm
! Use the hooks contained in the “accessory pack”
• Wherethehobisnotinstalledoverabuilt-inoven,a
wooden panel must be installed as insulation. This
must be placed at a minimum distance of 20 mm
from the lower part of the hob.
Ventilation
To ensure adequate ventilation, the back panel of
the cabinet must be removed. It is advisable to install
the oven so that it rests on two strips of wood, or on a
completelyflatsurfacewithanopeningofatleast45x
560 mm (see diagrams).
When
installing
the
cooktop
above
abuilt-
in oven
without
forced
ventilation,
ensure that there are air inlets and outlets for ventilating
the interior of the cabinet adequately.
Electrical connection
Hobsequippedwithathree-polepowersupplycable
are designed to operate with alternating current at the
voltage and frequency indicated on the data plate (this
is located on the lower part of the appliance). The earth
wire in the cable has a green and yellow cover. If the
applianceistobeinstalledaboveabuilt-inelectric
oven, the electrical connection of the hob and the
oven must be carried out separately, both for electrical
safetypurposesandtomakeextractingtheoven
easier.
Connecting the supply cable to the mains
Install a standardised plug corresponding to the load
indicated on the data plate.
The appliance must be directly connected to the mains
usinganomnipolarcircuit-breakerwithaminimum
contact opening of 3 mm installed between the
applianceandthemains.Thecircuit-breakermustbe
suitable for the charge indicated and must comply with
current electrical regulations (the earthing wire must
notbeinterruptedbythecircuit-breaker).Thesupply
cable must not come into contact with surfaces with
temperatures higher than 50°C.
! The installer must ensure that the correct electrical
connection has been made and that it is compliant with
safety regulations.
Before connecting to the power supply, make sure that:
• Theapplianceisearthedandtheplugiscompliant
with the law.
• Thesocketcanwithstandthemaximumpowerofthe
appliance, which is indicated on the data plate.
• Thevoltageisintherangebetweenthevalues
indicated on the data plate.
• Thesocketiscompatiblewiththeplugofthe
appliance. If the socket is incompatible with the
plug, ask an authorised technician to replace it. Do
notuseextensioncordsormultiplesockets.
! Once the appliance has been installed, the power
supply cable and the electrical socket must be easily
accessible.
! The cable must not be bent or compressed.
! The cable must be checked regularly and replaced
by authorised technicians only (see Assistance).
! The manufacturer declines any liability should these
safety measures not be observed.
Gas connection
The appliance should be connected to the main
gas supply or to a gas cylinder in compliance with
current national regulations. Before carrying out the
connection, make sure the cooker is compatible with
the gas supply you wish to use. If this is not the case,
follow the instructions indicated in the paragraph
“Adapting to different types of gas.”
When using liquid gas from a cylinder, install a
pressure regulator which complies with current national
regulations.
! Check that the pressure of the gas supply is
consistent with the values indicated in Table 1 (“Burner
and nozzle specifications”). This will ensure the safe
operation and longevity of your appliance while
maintaining efficient energy consumption.
Connection with a rigid pipe (copper or steel)
! Connection to the gas system must be carried out in
such a way as not to place any strain of any kind on
the appliance.
There is an adjustable L-shapedpipefittingonthe
appliance supply ramp and this is fitted with a seal
in order to prevent leaks. The seal must always be
replaced after rotating the pipe fitting (seal provided
with appliance). The gas supply pipe fitting is a
threaded 1/2 gas cylindrical male attachment.
560 mm.
45 mm.
