Connecting a flexible jointless stainless steel pipe
to a threaded attachment
The gas supply pipe fitting is a threaded 1/2 gas
cylindrical male attachment.
These pipes must be installed so that they are never
longerthan2000mmwhenfullyextended.Once
connection has been carried out, make sure that the
flexiblemetalpipedoesnottouchanymovingparts
and is not compressed.
! Only use pipes and seals that comply with current
national regulations.
Checking the tightness of the connection
! When the installation process is complete, check the
pipe fittings for leaks using a soapy solution. Never use
a flame.
Adapting to different types of gas
To adapt the hob to a different type of gas other than
default type (indicated on the rating plate at the base
of the hob or on the packaging), the burner nozzles
should be replaced as follows:
1. Remove the hob grids and slide the burners off their
seats.
2. Unscrew the nozzles using a 7 mm socket
spanner, and replace them with nozzles for the
new type of gas (see table 1 “Burner and nozzle
characteristics”).
3. Reassemble the parts following the above procedure
in the reverse order.
4. Once this procedure is finished, replace the old
rating sticker with one indicating the new type of gas
used. Sticker are available from any of our Service
Centres.

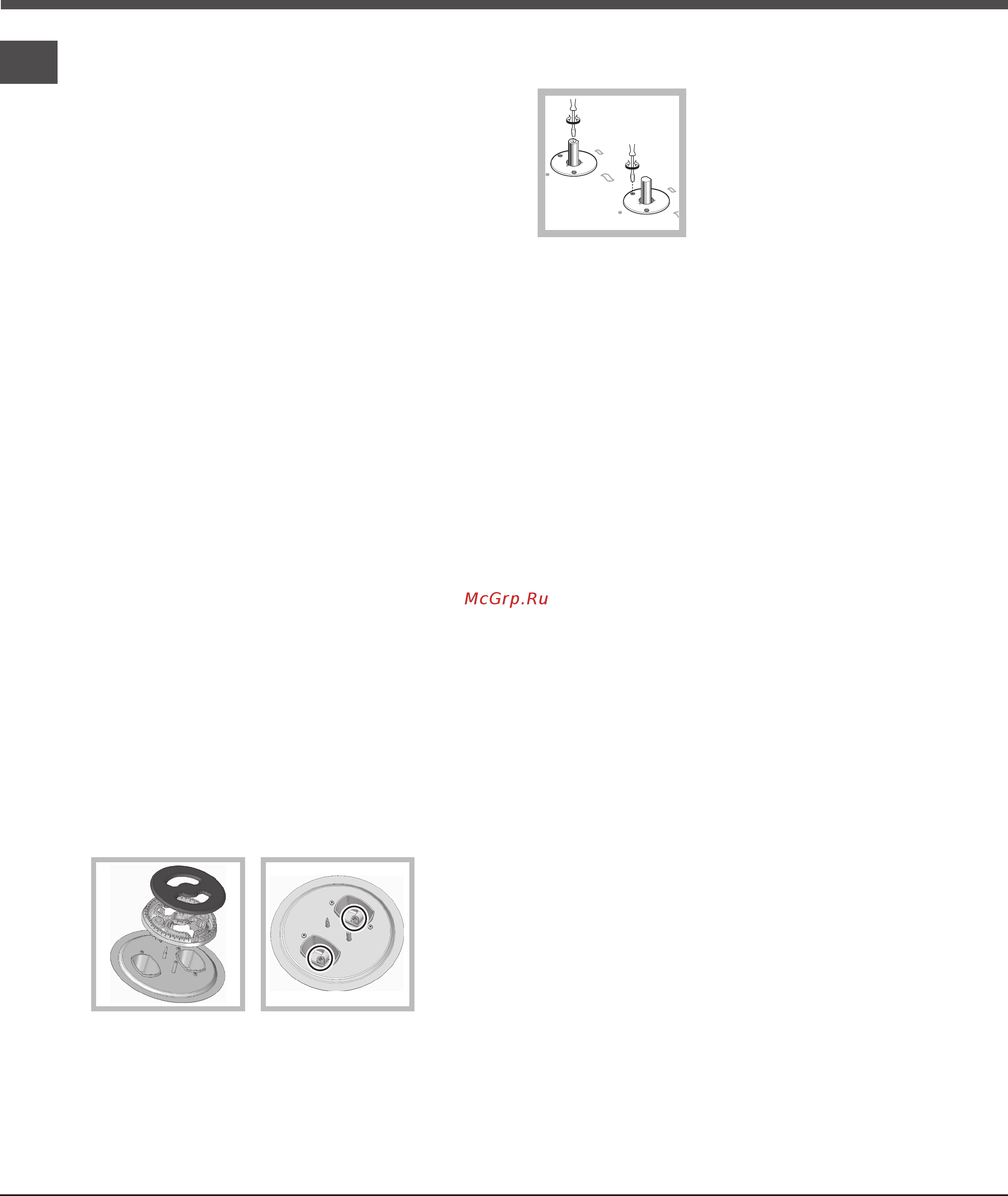

Replacing the Triple ring burner nozzles
1. Remove the pan supports and lift the burners out of
their housing. The burner consists of two separate
parts (see pictures).
2. Unscrew the nozzles using a 7 mm socket spanner.
Replace the nozzles with models that are configured
for use with the new type of gas (see Table 1). The
two nozzles have the same hole diameter.
3. Replace all the components by completing the
above operations in reverse order.
• Adjustingtheburners’primaryair:
Does not require adjusting.
• Settingtheburnerstominimum:
1. Turn the tap to the low flame position.
2. Remove the knob and adjust
the adjustment screw, which is
positionedinornexttothetap
pin, until the flame is small but
steady.
3. Having adjusted the flame to the required low
setting, while the burner is alight, quickly change the
positionoftheknobfromminimumtomaximumand
vice versa several times, checking that the flame
does not go out.
4. Some appliances have a safety device
(thermocouple) fitted. If the device fails to work
when the burners are set to the low flame setting,
increase this low flame setting using the adjusting
screw.
5. Once the adjustment has been made, replace the
sealsontheby-passesusingsealingwaxora
similar substance.
! If the appliance is connected to liquid gas, the
regulation screw must be fastened as tightly as
possible.
! Once this procedure is finished, replace the old rating
sticker with one indicating the new type of gas used.
Stickers are available from any of our Service Centres.
! Should the gas pressure used be different (or vary
slightly) from the recommended pressure, a suitable
pressure regulator must be fitted to the inlet pipe (in
order to comply with current national regulations).
