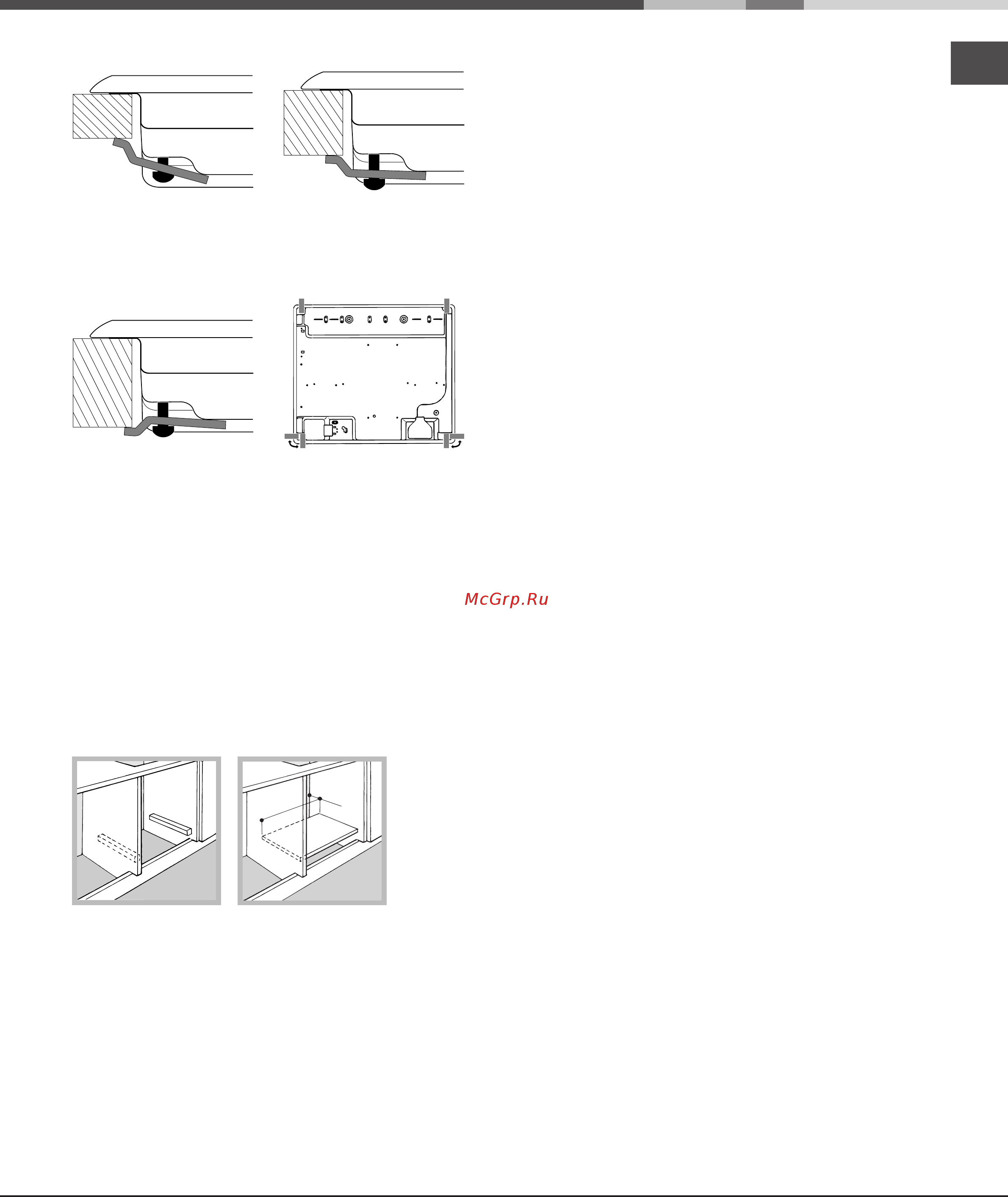

Hook fastening diagram Hooking position for top H 20 mm Connecting the supply cable to the mains Hooking position for top H 30 mm Front GB Install a standardised plug corresponding to the load indicated on the data plate The appliance must be directly connected to the mains using an omnipolar circuit breaker with a minimum contact opening of 3 mm installed between the appliance and the mains The circuit breaker must be suitable for the charge indicated and must comply with current electrical regulations the earthing wire must not be interrupted by the circuit breaker The supply cable must not come into contact with surfaces with temperatures higher than 50 C The installer must ensure that the correct electrical connection has been made and that it is compliant with safety regulations Before connecting to the power supply make sure that The appliance is earthed and the plug is compliant with the law The socket can withstand the maximum power of the appliance which is indicated on the data plate Hooking position for top H 40 mm Back Use the hooks contained in the accessory pack The voltage is in the range between the values indicated on the data plate The socket is compatible with the plug of the appliance If the socket is incompatible with the plug ask an authorised technician to replace it Do not use extension cords or multiple sockets Where the hob is not installed over a built in oven a wooden panel must be installed as insulation This must be placed at a minimum distance of 20 mm from the lower part of the hob Once the appliance has been installed the power supply cable and the electrical socket must be easily accessible Ventilation The cable must not be bent or compressed To ensure adequate ventilation the back panel of the cabinet must be removed It is advisable to install the oven so that it rests on two strips of wood or on a completely flat surface with an opening of at least 45 x 560 mm see diagrams The cable must be checked regularly and replaced by authorised technicians only see Assistance The hob can only be installed above built in ovens with a cooling ventilation system Electrical connection Hobs equipped with a three pole power supply cable are designed to operate with alternating current at the voltage and frequency indicated on the data plate this is located on the lower part of the appliance The earth wire in the cable has a green and yellow cover If the appliance is to be installed above a built in electric oven the electrical connection of the hob and the oven must be carried out separately both for electrical safety purposes and to make extracting the oven easier The manufacturer declines any liability should these safety measures not be observed Gas connection The appliance should be connected to the main gas supply or to a gas cylinder in compliance with current national regulations Before carrying out the connection make sure the cooker is compatible with the gas supply you wish to use If this is not the case follow the instructions indicated in the paragraph Adapting to different types of gas When using liquid gas from a cylinder install a pressure regulator which complies with current national regulations Check that the pressure of the gas supply is consistent with the values indicated in Table 1 Burner and nozzle specifications This will ensure the safe operation and longevity of your appliance while maintaining efficient energy consumption Connection with a rigid pipe copper or steel Connection to the gas system must be carried out in such a way as not to place any strain of any kind on the appliance 3
