41 -
Operating additional equipment
Rotating the TV set for Spheros R 32/37
Spheros R 32/37 have a connection for a rotating stand control.
If the TV set is mounted on a motor unit, you can use the remote control to
adjust it to your seating location accordingly.
Rotate the TV set when no menu or PIP is being displayed.
Note: Make sure there are no objects in the TV’s area of rotation that might
obstruct the rotation or be knocked down due to the rotating motion.
Setting the range of rotation (basic adjustment)
Here you can determine the range of rotation maximum +/- 40 degrees) of the
TV set by adjusting the maximum right and left stop.

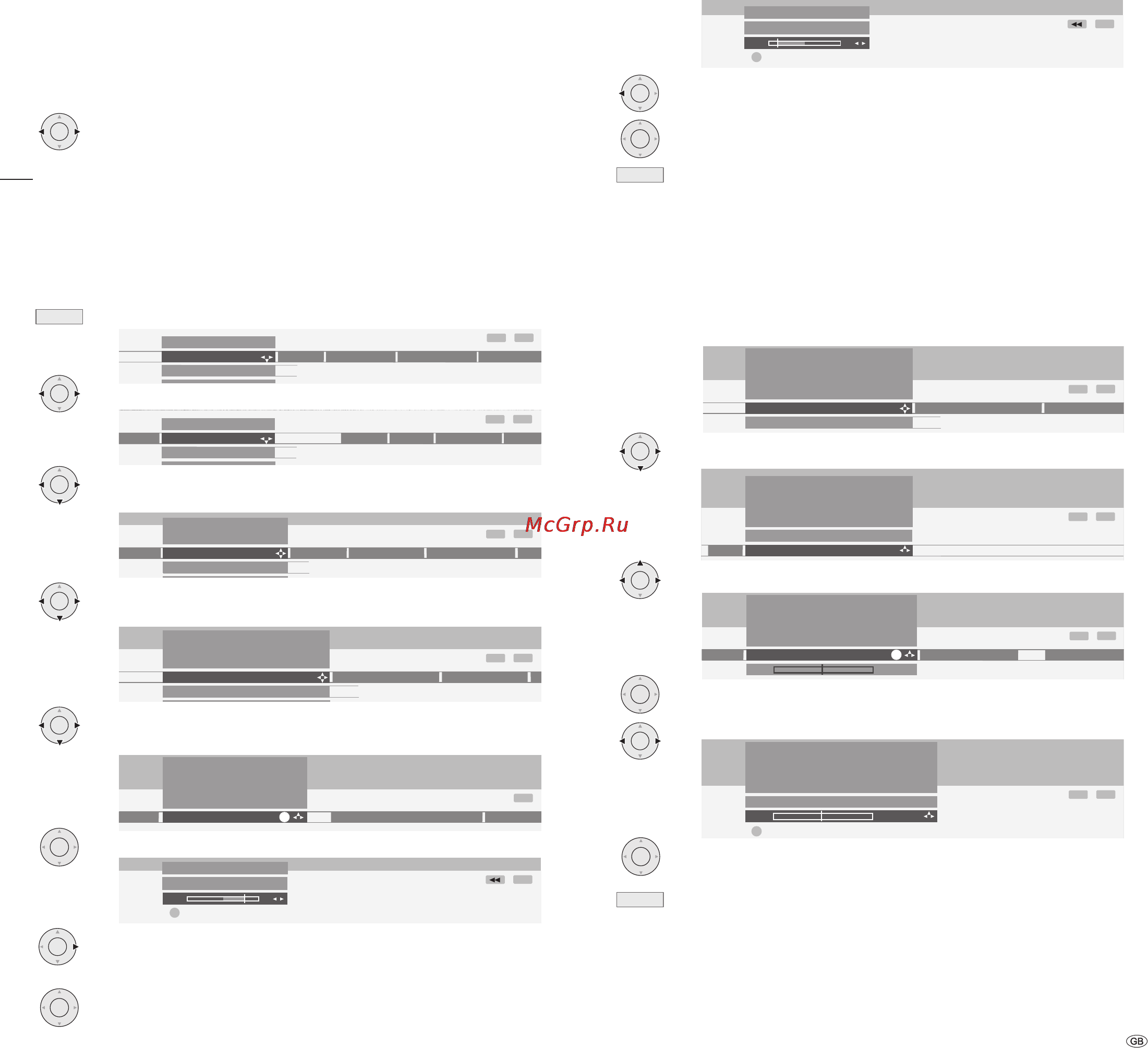

Call up the TV menu.
Select “Settings” with .
Select the menu line below with and select
“Miscellaneous” with .
Select the menu line below with and select
“Rotate TV” with .
Select the menu line below with and select
“Basic adjustment” with ...
... and confi rm with OK.
Turn your TV with as far to the right as the location of the
set allows. This will be the maximum right hand position in
future.
Confi rm with OK.
Turn your TV with as far to the left as the location of the set
allows. This will be the maximum left hand position in future.
End the basic adjustment with OK.
Close the menu.
Setting the position of the TV set when switched off
You can set the position the TV set is to assume once it is switched off (switch-
off position must be activated for this):
Call the menu item “Activate switch-off position” in the
TV menu – Settings – Miscellaneous – Rotate TV.
Move down with and select “yes” with .
Move up with and select “Set switch-off position” with .
use OK to go down and use the arrow buttons to set the
desired switch-off position. The TV set rotates in the process.
use OK to save the position set.
Close the menu.
If the TV set is switched off using the blue on/off button on the remote control
or by using the indicator fi eld on the set (Spheros R26/32), the set will rotate to
the position defi ned.
When it is switched back on, it returns to the position last set manually.
