- 64

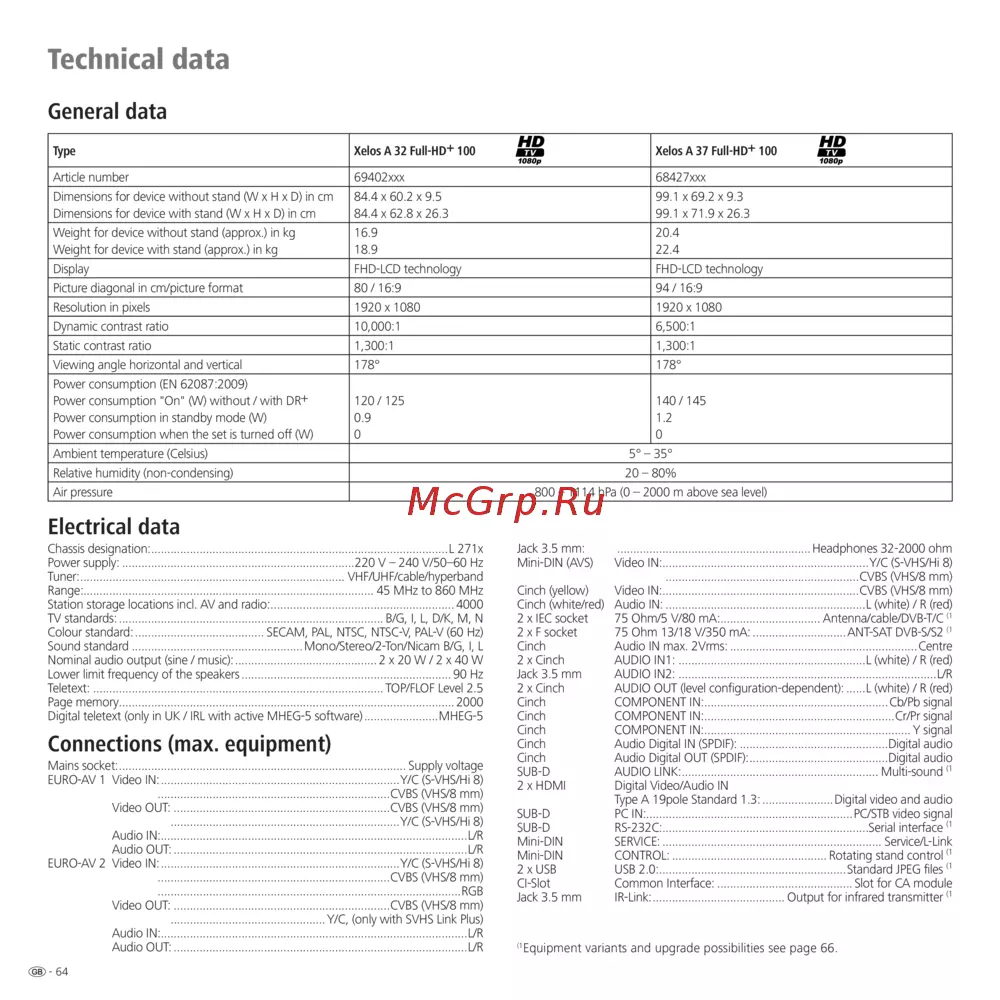

Technical data
Jack 3.5 mm: ............................................................ Headphones 32-2000 ohm
Mini-DIN (AVS) Video IN: ................................................................Y/C (S-VHS/Hi 8)
............................................................CVBS (VHS/8 mm)
Cinch (yellow) Video IN: .............................................................CVBS (VHS/8 mm)
Cinch (white/red) Audio IN: ..............................................................L (white) / R (red)
2 x IEC socket 75 Ohm/5 V/80 mA: ............................... Antenna/cable/DVB-T/C
(1
2 x F socket 75 Ohm 13/18 V/350 mA: .............................ANT-SAT DVB-S/S2
(1
Cinch Audio IN max. 2Vrms: ..........................................................Centre
2 x Cinch AUDIO IN1: ..........................................................L (white) / R (red)
Jack 3.5 mm AUDIO IN2: ................................................................................L/R
2 x Cinch AUDIO OUT (level configuration-dependent): ......L (white) / R (red)
Cinch COMPONENT IN: .........................................................Cb/Pb signal
Cinch COMPONENT IN: ...........................................................Cr/Pr signal
Cinch COMPONENT IN: ................................................................ Y signal
Cinch Audio Digital IN (SPDIF): ..............................................Digital audio
Cinch Audio Digital OUT (SPDIF): ...........................................Digital audio
SUB-D AUDIO LINK: ............................................................. Multi-sound
(1
2 x HDMI Digital Video/Audio IN
Type A 19pole Standard 1.3: ......................Digital video and audio
SUB-D PC IN:................................................................PC/STB video signal
SUB-D RS-232C:................................................................Serial interface
(1
Mini-DIN SERVICE: .................................................................... Service/L-Link
Mini-DIN CONTROL: ................................................ Rotating stand control
(1
2 x USB USB 2.0: ..........................................................Standard JPEG files
(1
CI-Slot Common Interface: .......................................... Slot for CA module
Jack 3.5 mm IR-Link: ......................................... Output for infrared transmitter
(1
Electrical data
Chassis designation: ............................................................................................L 271x
Power supply: ........................................................................220 V – 240 V/50–60 Hz
Tuner: .................................................................................. VHF/UHF/cable/hyperband
Range:.......................................................................................... 45 MHz to 860 MHz
Station storage locations incl. AV and radio: ......................................................... 4000
TV standards: .................................................................................. B/G, I, L, D/K, M, N
Colour standard: ........................................ SECAM, PAL, NTSC, NTSC-V, PAL-V (60 Hz)
Sound standard ..................................................... Mono/Stereo/2-Ton/Nicam B/G, I, L
Nominal audio output (sine / music): ............................................ 2 x 20 W / 2 x 40 W
Lower limit frequency of the speakers ................................................................. 90 Hz
Teletext: .......................................................................................... TOP/FLOF Level 2.5
Page memory ........................................................................................................2000
Digital teletext (only in UK / IRL with active MHEG-5 software) .......................MHEG-5
Connections (max. equipment)
Mains socket: ......................................................................................... Supply voltage
EURO-AV 1 Video IN: ..........................................................................Y/C (S-VHS/Hi 8)
........................................................................CVBS (VHS/8 mm)
Video OUT: ...................................................................CVBS (VHS/8 mm)
.......................................................................Y/C (S-VHS/Hi 8)
Audio IN: ...............................................................................................L/R
Audio OUT: ...........................................................................................L/R
EURO-AV 2 Video IN: ..........................................................................Y/C (S-VHS/Hi 8)
........................................................................CVBS (VHS/8 mm)
..............................................................................................RGB
Video OUT: ...................................................................CVBS (VHS/8 mm)
................................................ Y/C, (only with SVHS Link Plus)
Audio IN: ...............................................................................................L/R
Audio OUT: ...........................................................................................L/R
General data
Type Xelos A 32 Full-HD
+
100 Xelos A 37 Full-HD
+
100
Article number 69402xxx 68427xxx
Dimensions for device without stand (W x H x D) in cm
Dimensions for device with stand (W x H x D) in cm
84.4 x 60.2 x 9.5
84.4 x 62.8 x 26.3
99.1 x 69.2 x 9.3
99.1 x 71.9 x 26.3
Weight for device without stand (approx.) in kg
Weight for device with stand (approx.) in kg
16.9
18.9
20.4
22.4
Display FHD-LCD technology FHD-LCD technology
Picture diagonal in cm/picture format 80 / 16:9 94 / 16:9
Resolution in pixels 1920 x 1080 1920 x 1080
Dynamic contrast ratio 10,000:1 6,500:1
Static contrast ratio 1,300:1 1,300:1
Viewing angle horizontal and vertical 178° 178°
Power consumption (EN 62087:2009)
Power consumption "On" (W) without / with DR
+
Power consumption in standby mode (W)
Power consumption when the set is turned off (W)
120 / 125
0.9
0
140 / 145
1.2
0
Ambient temperature (Celsius) 5° – 35°
Relative humidity (non-condensing) 20 – 80%
Air pressure 800 – 1114 hPa (0 – 2000 m above sea level)
(1
Equipment variants and upgrade possibilities see page 66.
