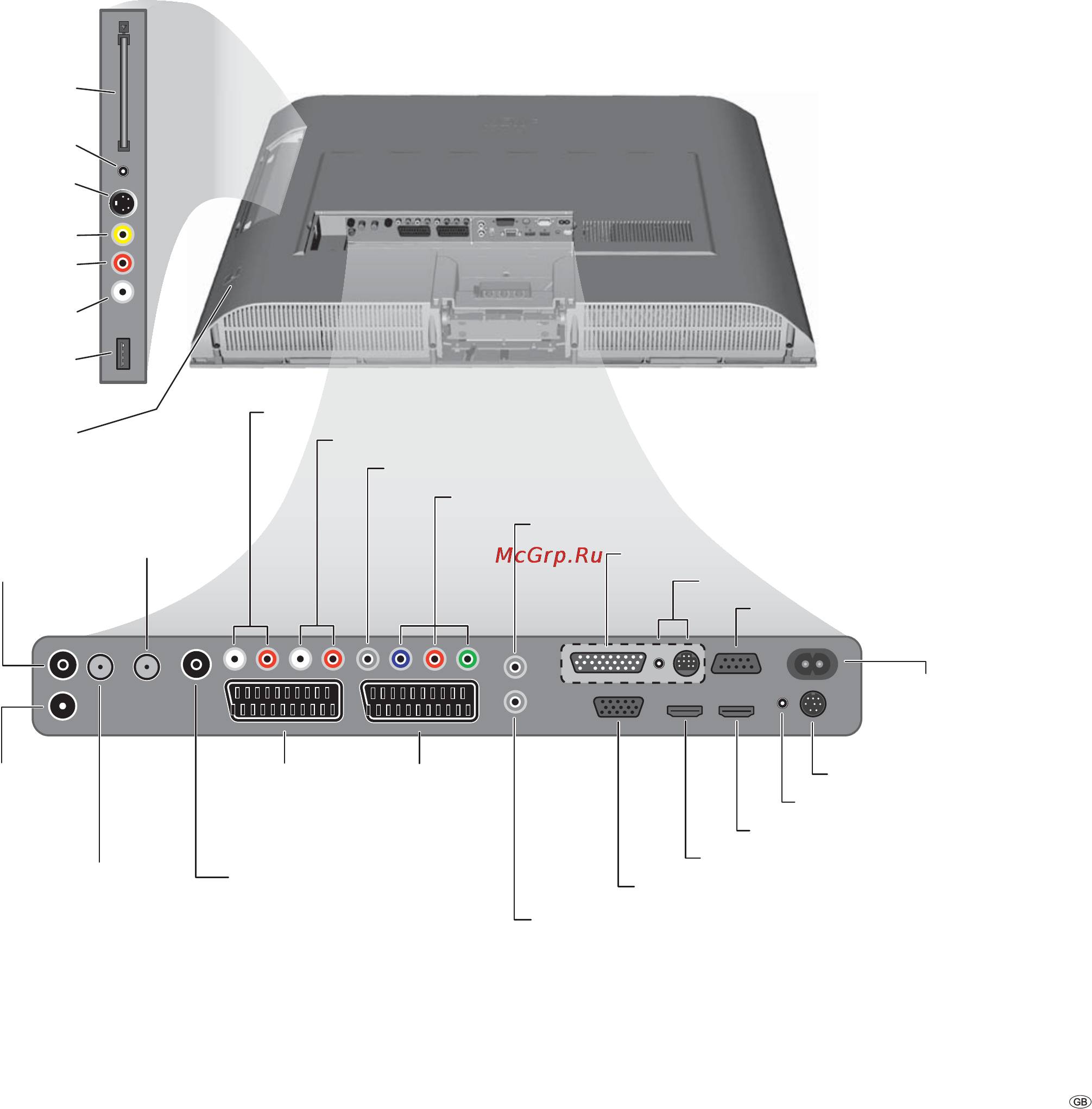

5 -
ANT OUT
(1
Connect antenna
output with ANT-TV
(tuner 1)
ANT-TV
Antenna/cable
analogue/digital
(Tuner 1)
mains switch
CONTROL
(1
- rotating stand control
(2
or IR-Link
(2
RS-232C
(1
- serial interface
AUDIO IN1 L/R - audio input left/right (analogue)
AUDIO OUT L/R - audio output left/right (analogue)
ANT SAT2
(1
Satellite antenna
(Sat tuner 2)
ANT2
(1
Antenna/cable
analogue/digital
(Tuner 2)
AV1
Euro-AV
socket 1
AV2 (RGB)
Euro-AV
socket 2
220-240V~ 50/60Hz
mains connection
SERVICE - service socket
PC IN - VGA/XGA input
HDMI2 - HDMI (DVI) input 2
AUDIO DIGITAL IN - digital audio input
AUDIO DIGITAL OUT - digital audio output
SD/HD-COMPONENT IN Cb/Pb–Cr/Pr–Y - component video inputs
Headphones
connection
S-VHS connection (AVS)
(e.g. for camcorder)
Video in (AVS)
Audio in right (AVS)
Audio in left (AVS)
AUDIO IN1 C - centre audio input (analogue)
AUDIO LINK
(1
- surround audio outputs (analogue)
(2
or IR-Link
(2
HDMI1 - HDMI (DVI) input 1
USB connection
(USB stick/card reader)
ANT SAT
(1
Satellite antenna
(Sat tuner 1)
AUDIO IN2 - audio input (analogue)
Common Interface
(CI-Slot)
Connections rear side of the device – Xelos A 32
(1
See pages 66 and 67 for equipment and upgrade possibilities.
(2
The exact configuration of the connections depends on the upgrade kits used (see Accessories pages 66 and 67).
Factory setting:
AV2: DVD recorder
You can change this during the
initial installation (page 12) or in
the connection wizard (page 44).
Before you connect other devices
or make any changes, please start
the connection wizard (page 44)
and the sound components wizard
(page 51), and then follow the
instructions that are displayed on
the TV set.
