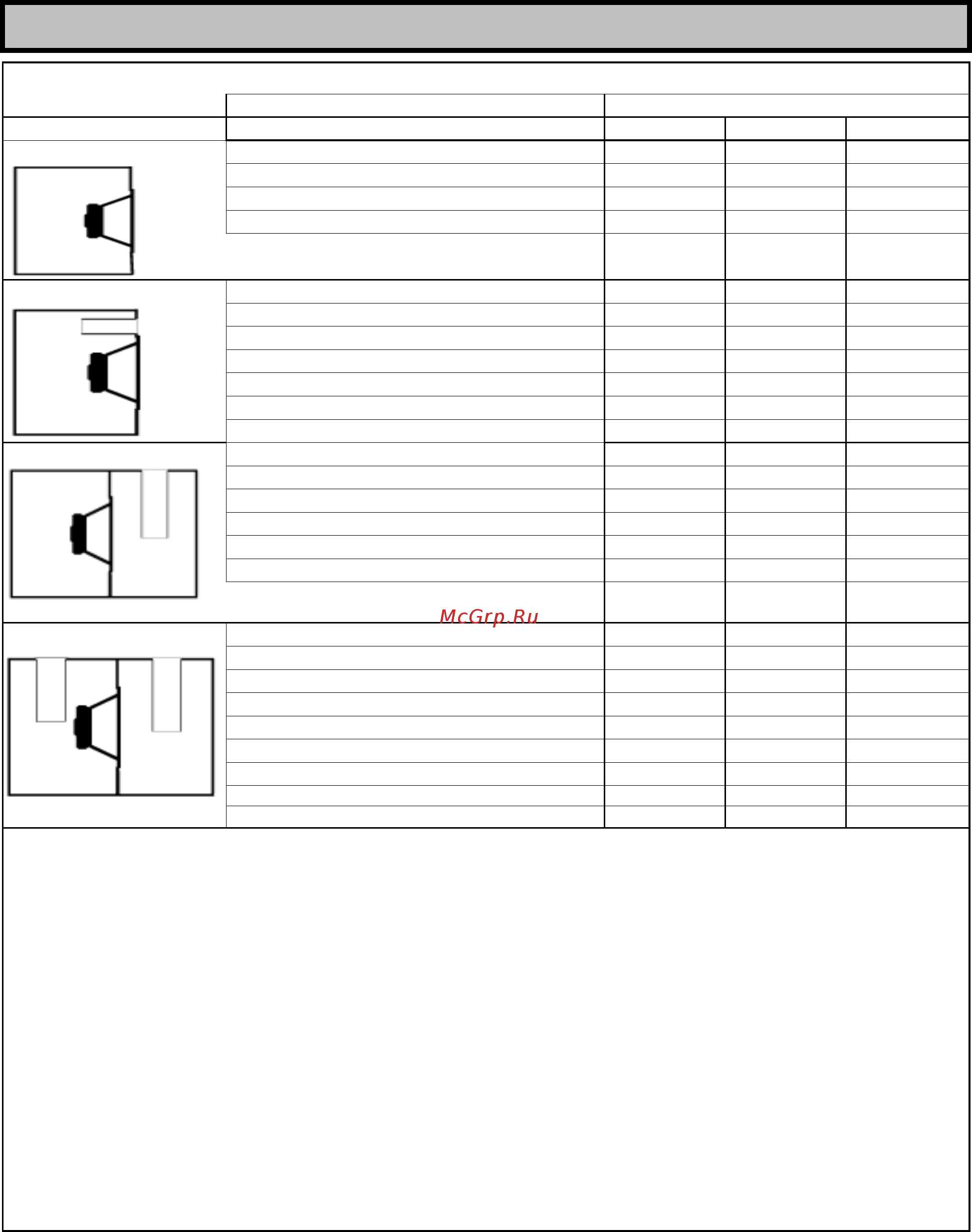

ENCLOSURE RECOMMENDATIONS
woofer-displacement:
box type optimisation for: loud normal low / definition
sealed net box volume [Liter] * - 10 15
free field SPL at 90 Hz [dB/Wm] - 87 86,5
mech. power handling [Watt RMS] - 100 130
low cut frequency (free flield) Flow [Hz] - 45 38
vented net box volume [Liter] *+** 15 20 25
port diameter x length [cm] 5 x 17 6 x 23 6 x 22
free field SPL at 90 Hz [dB/Wm] 89 88 87
mech. power handling [Watt RMS] 100 100 100
high cut frequency for subsonic filter[Hz] 30 28 27
power handling with subsonic filter [W] 130 130 130
low cut frequency (free flield) Flow [Hz] 40 34 30
single vented band pass net box volume [Liter] * V1 - 9 13
net box volume [Liter] ** V2 - 9 10
port diameter x length [cm] in V2 - 8,5 x 25 8,5 x 29
free field SPL at 90 Hz [dB/Wm] - 88,5 87
mech. power handling [Watt RMS] - 130 130
low cut frequency (free flield) Flow [Hz] - 38 33
V 1 V 2
double vented band pass net box volume [Liter] * + ** V1 13 15 20
port diameter x length [cm] in V1 5 x 23 5 x 27 5 x 23
net box volume [Liter] ** V2 11 11 11
port diameter x length [cm] in V2 10 x 20 8,5 x 16 10 x 29
free field SPL at 90 Hz [dB/Wm] 91,5 90 89
mech. power handling [Watt RMS] 100 100 100
high cut frequency for subsonic filter[Hz] 29 27 25
power handling with subsonic filter [W]
130
130
130
V 1 V 2 low cut frequency (free flield) Flow [Hz] 45 40 34
*): add additional 1,9 L for woofer!
**): calculate and add volume displacement of port(s)
formula: outer diameter [dm] square times 3,14 devided by 4, times length [dm]
ports should be rounded (aeroports)! In cases where round tubes don't fit,
channels with same cross-section (rounded at both ends) may be built.
damping: sealed encl. Fill loosely with poly-padding, vented encl.: 2 walls covered by acoustic foam.
enclosure wall thickness: MDF/Multilayer: 19 to 22 mm. Woofer screwed by metric thread knock-in nuts.
Subsonic-Filter: high pass filter of 3rd order or higher
mounting size:
mounting hole diameter: 183 mm
mounting depth: 111 mm
magnet diameter: 134 mm
recomm. freeplay behind magnet: > 20 mm
if flange gets lowered into baffle: without - with rubber gasket
grinding diameter: 206 mm 212 mm
grinding depth: 14 mm 16 mm
ALPINE SWE-843E 20 cm Subwoofer
0,9 Liter
