2
TABLE OF CONTENTS
UNPACKING THE SPEAKERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
PLACEMENT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
WALL SURFACE-MOUNTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
WALL CORNER-MOUNTING . . . . . . . . . . . . . . . . . . . . . . . . . . 6
WALL/CEILING CORNER-MOUNTING . . . . . . . . . . . . . . . . . . 8
HALF-ROUND WALL-MOUNTING. . . . . . . . . . . . . . . . . . . . . . . . . 10
3/4-ROUND WALL-MOUNTING. . . . . . . . . . . . . . . . . . . . . . . . . . . 14
STAND-MOUNTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
FOUR-SPEAKER-ARRAY INSTALLATION. . . . . . . . . . . . . . . . . . . 18
UNPACKING THE BRACKET AND CABLE KIT. . . . . . . . . . . 18
MAINTENANCE AND SERVICE. . . . . . . . . . . . . . . . . . . . . . . . . . . 27
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
JBL CONTROL NOW
™
LOUDSPEAKERS
For more than 60 years, we have been providing JBL
®
audio equipment for top
concert halls, recording studios and movie theaters around the world, becoming
the hands-down choice of leading recording artists and sound engineers. With
JBL Control NOW
™
loudspeakers, innovative technologies such as titanium-
laminate dome tweeters, PolyPlas
™
transducer reinforcement and a patented,
controlled-directivity Bi-Radial
®
horn are available to you.
JBL Control NOW speakers are unique in their ability to deliver excellent
performance over an extremely wide listening area. Therefore, the conventional
placement guidelines outlined below can often be relaxed somewhat to offer
you the flexibility of placing the speakers where they best integrate into your
living environment, without sacrificing performance.

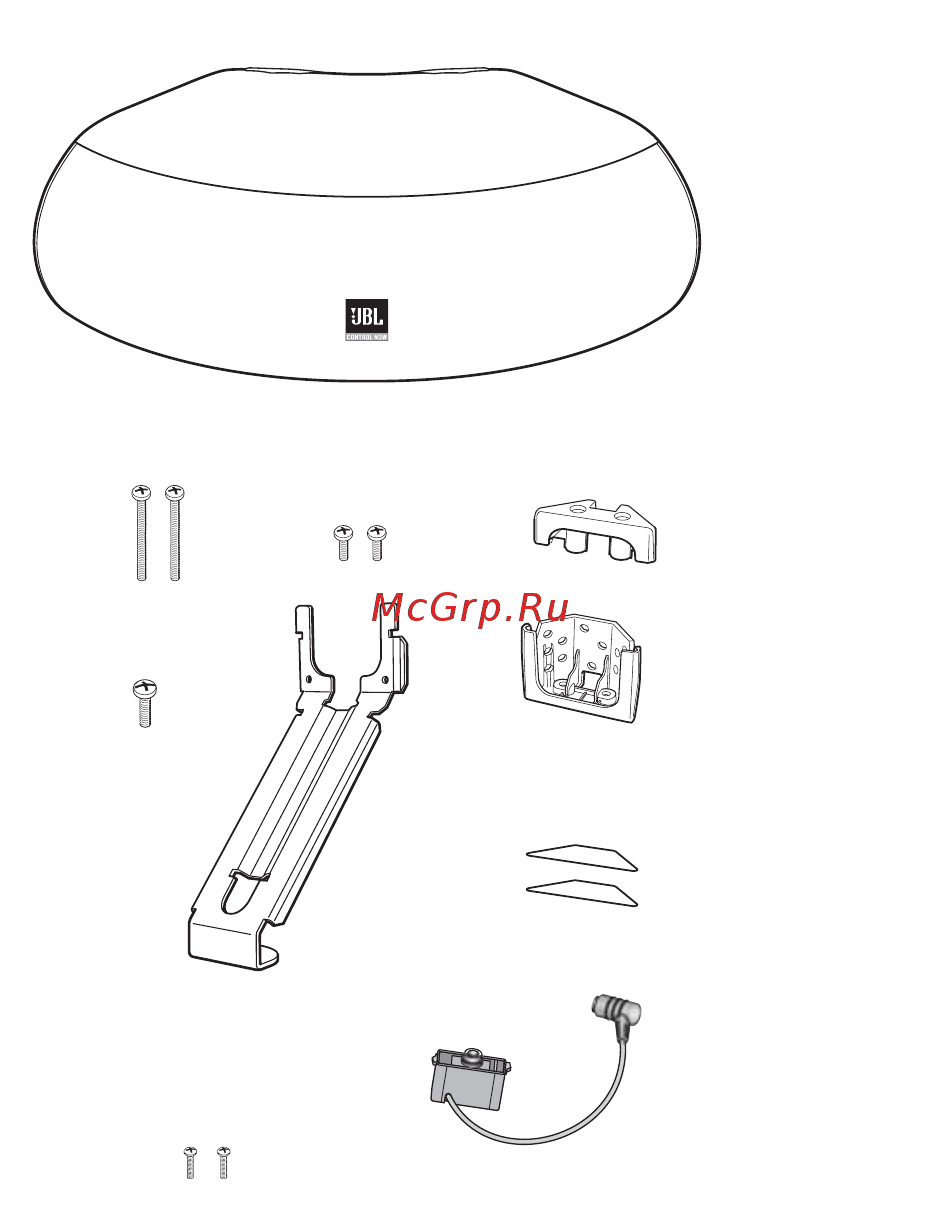

UNPACKING THE SPEAKERS
If you suspect damage from transit, report it immediately to your dealer.
Keep the shipping carton and packing materials for future use.
JBL Control NOW Speaker
Multiunit Wiring Adapter
Corner/Wall-Mount-Bracket
Cap
Corner/Wall-Mount
Bracket
Bracket Covers(2)
Stand-Mount
Bracket
#10-32 x 2"
(2)
Screws
#10-32 x 1/2"
(2)
Screws
#8-32 x 1/2"
Screws
(2)
#1/4-20 x 1"
(1)
Screw
Included:
JBLP2605_CN_CNAW_PM-OM 4/23/08 12:57 PM Page 2
