CONNECTING AND SETTING UP YOUR JBL ONBEAT™ AIR

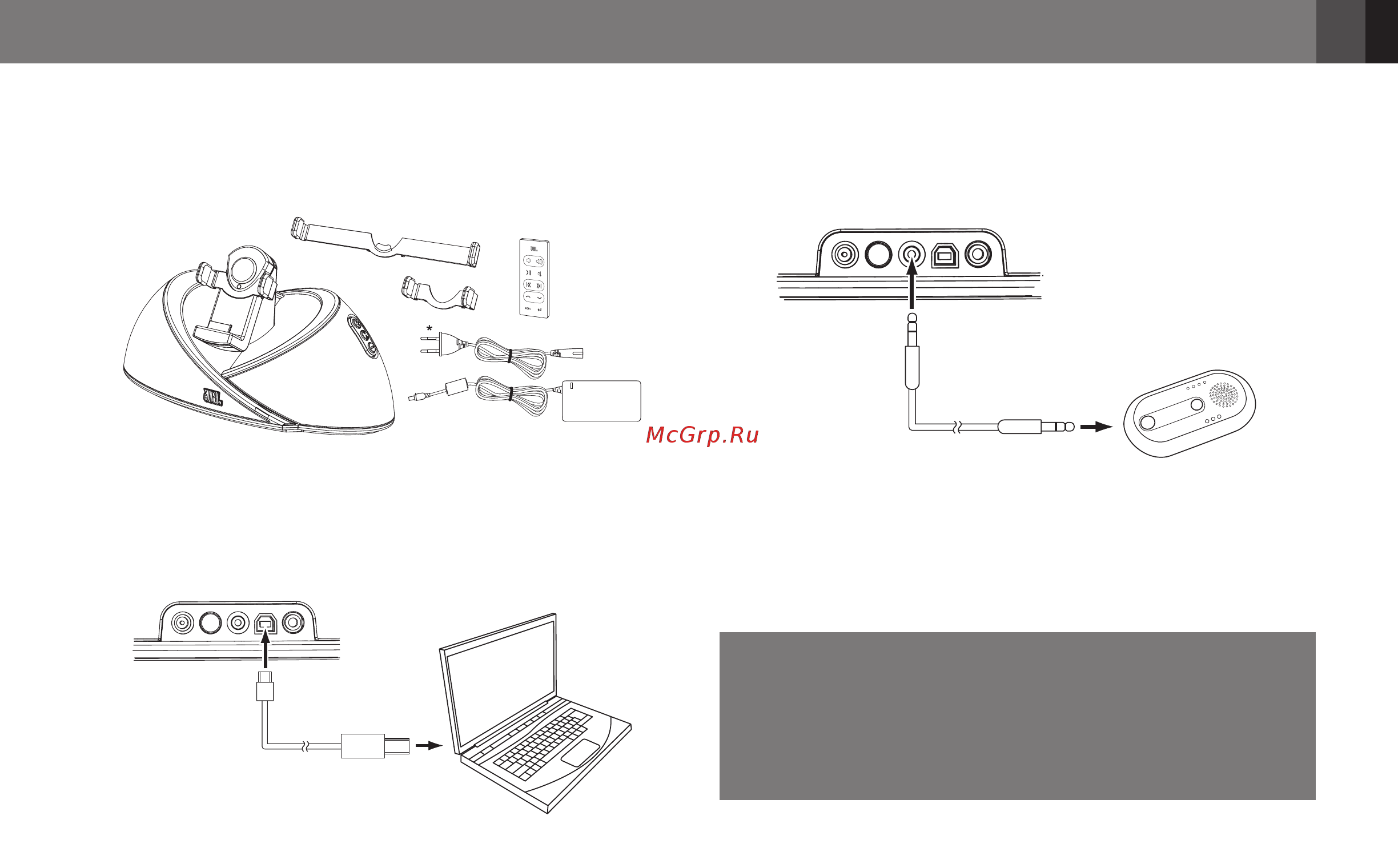

Carefully unpack your speaker dock, and conﬁrm that all the items shown here 1.

are included: JBL OnBeat™ Air, power supply, AC cord*, remote control, iPod/

iPhone adapter clip and iPad adapter clip.

* AC cord varies by region.

Connect a USB 2. Type B cable (not included) to the JBL OnBeat Air USB port

and to a USB port on the computer where your iTunes library is located. This

connection allows you to sync a docked iPod/iPhone/iPad device with iTunes

(see Synchronizing with Your iTunes Library, on page 9).

USB

VIDEO OUT

AUDIO IN

DC IN

POWER

USB Type B

If you are going to use your 3. JBL OnBeat Air speaker dock with another audio

source, plug one end of a 3.5mm (1/8") stereo cable (not included) into the JBL

OnBeat Air Audio In connector, and plug the other end into the audio source’s

audio out or headphone out connector.

USB

VIDEO OUT

AUDIO IN

DC IN

POWER

3.5mm (1/8”) cable

IMPORTANT: If you play audio through a docked iPod, iPhone or iPad

device and an audio source connected to the Audio In connector at

the same time, you will hear both of their outputs mixed through the

JBL OnBeat Air speaker dock. To hear only one source, you will need to turn off

the other source (the one you do not want to hear) manually.

IMPORTANT NOTE FOR ALL ELECTRONIC PRODUCTS:

Before inserting or unplugging audio cables from the

device’s Audio In jack, it is good practice to turn off the

device ﬁrst. This practice will prolong the life of your unit,

help protect it from static electricity and prevent potential

damage.
