Timberk TEC.PS1 ML 15 IN (OG) [3/16] Take 2 legs out of a package box 2 turn over the unit so that its lower part was at the top 3 attach legs to the lower part of the unit from the left and right sides so that the mounting holes coincide with holes on the unit s case 4 fasten mounting screws in the present holes exerting enough force check security of

Содержание

Похожие устройства

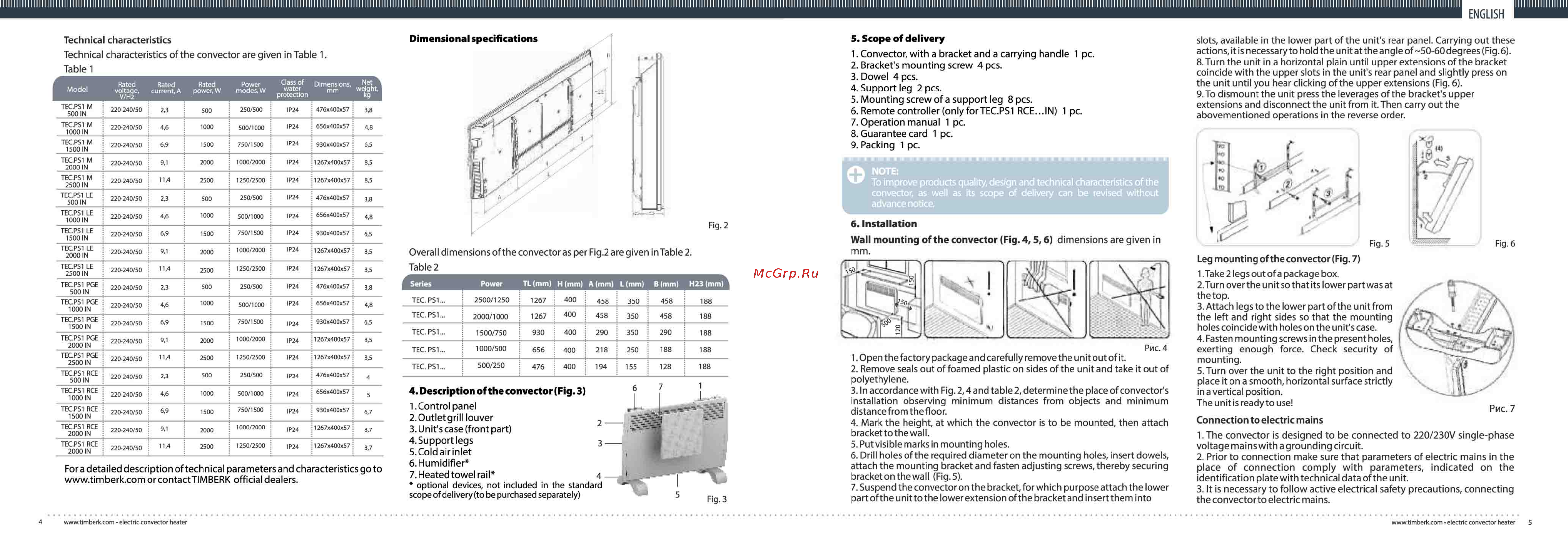

IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIHIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIH iniiiiiiiiiiiiiiii ENGLISH Technical characteristics 5 Scope of delivery Technical characteristics of the convector are given in Table 1 1 Convector with a bracket and a carrying handle 1 pc 2 Bracket s mounting screw 4 pcs 3 Dowel 4 pcs 4 Support leg 2 pcs 5 Mounting screw of a support leg 8 pcs 6 Remote controller only for TEC PS1 RCE IN 1 pc 7 Operation manual 1 pc 8 Guarantee card 1 pc 9 Packing 1 pc Table 1 r Model Rated voltage V Hz Rated current A Rated power W Power modes W Class of water protection TEC PS1 M 500 IN 220 240 50 2 3 500 250 500 IP24 476x400x57 TEC PS1 M 1000 IN 220 240 50 4 6 1000 500 1000 IP24 656x400x57 4 8 TEC PS1 M 1500 IN 220 240 50 6 9 1500 750 1500 IP24 930x400x57 6 5 TEC PS1 M 2000 IN 220 240 50 9 1 2000 1000 2000 IP24 1267x400x57 8 5 TEC PS1 M 2500 IN 220 240 50 11 4 2500 1250 2500 IP24 1267x400x57 8 5 IP24 476x400x57 3 8 TEC PS1 LE 500 IN 220 240 50 2 3 500 250 500 TECPS1 LE 1000 IN 220 240 50 4 6 1000 500 1000 IP24 656x400x57 4 8 TEC PS1 LE 1500 IN 220 240 50 6 9 1500 750 1500 IP24 930x400x57 6 5 TEC PS1 LE 2000 IN 220 240 50 9 1 2000 1000 2000 IP24 1267x400x57 8 5 TEC PS1 LE 2500 IN 220 240 50 11 4 2500 1250 2500 IP24 1267x400x57 8 5 TEC PS1 PGE 500 IN 220 240 50 2 3 500 250 500 IP24 476x400x57 3 8 TEC PS1 PGE 1000 IN 220 240 50 4 6 1000 500 1000 IP24 656x400x57 4 8 TEC PS1 PGE 1500 IN 6 Installation 1500 750 1500 IP24 930x400x57 6 5 2000 1000 2000 IP24 1267x400x57 8 5 220 240 50 6 9 TEC PS1 PGE 2000 IN 220 240 50 9 1 TEC PS1 PGE 2500 IN 220 240 50 TEC PS1 RCE 500 IN 220 240 50 2 3 500 250 500 IP24 476x400x57 TEC PS1 RCE 1000 IN 220 240 50 4 6 1000 500 1000 IP24 656x400x57 TEC PS1 RCE 1500 IN 220 240 50 6 9 1500 750 1500 IP24 930x400x57 6 7 TEC PS1 RCE 2000 IN 220 240 50 9 1 2000 1000 2000 IP24 1267x400x57 8 7 TECPS1 RCE 2000 IN 220 240 50 11 4 2500 1250 2500 IP24 1267x400x57 8 7 11 4 2500 1250 2500 IP24 1267x400x57 For a detailed description of technical parameters and characteristics go to www timberk com orcontactTIMBERK official dealers 4 3 8 slots available in the lower part of the unit s rear panel Carrying out these actions it is necessary to hold the unit at the angle of 50 60 degrees Fig 6 8 Turn the unit in a horizontal plain until upper extensions of the bracket coincide with the upper slots in the unit s rear panel and slightly press on the unit until you hear clicking of the upper extensions Fig 6 9 To dismount the unit press the leverages of the bracket s upper extensions and disconnect the unit from it Then carry out the abovementioned operations in the reverse order www timberk com electric convector heater Wall mounting of the convector Fig 4 5 6 dimensions are given in mm Overall dimensions of the convector as per Fig 2 are given inTable 2 Table 2 Power TL mm TEC PS1 2500 1250 1267 400 458 350 458 188 TEC PS1 2000 1000 1267 400 458 350 458 188 TEC PS1 1500 750 930 400 290 350 290 188 TEC PS1 1000 500 656 400 218 250 188 188 TEC PSI 500 250 Г Series H mm A mm L mm В mm H23 mm 8 5 476 400 4 5 4 Description of the convector Fig 3 1 Control panel 2 Outlet grill louver 3 Unit s case front part 4 Support legs 5 Coldairinlet 6 Humidifier 7 Heated towel rail optional devices not included in the stanc scope of delivery to be purchased separately 194 155 128 188 Рис 4 1 Open the factory package and carefully remove the unitout of it 2 Remove seals out of foamed plastic on sides of the unit and take it out of polyethylene 3 In accordance with Fig 2 4 and table 2 determine the place of convector s installation observing minimum distances from objects and minimum distancefrom the floor 4 Mark the height at which the convector is to be mounted then attach bracket to the wall 5 Put visible marks in mounting holes 6 Drill holes of the required diameter on the mounting holes insert dowels attach the mounting bracket and fasten adjusting screws thereby securing bracket on the wall Fig 5 7 Suspend the convector on the bracket for which purpose attach the lower part of the unit to the lower extension of the bracket and insert them into Fig 6 Leg mounting of the convector Fig 7 1 Take 2 legs out of a package box 2 Turn over the unit so that its lower part was at the top 3 Attach legs to the lower part of the unit from the left and right sides so that the mounting holes coincide with holes on the unit s case 4 Fasten mounting screws in the present holes exerting enough force Check security of mounting 5 Turn over the unit to the right position and place it on a smooth horizontal surface strictly in a vertical position The unit is ready to use Connection to electric mains I The convector is designed to be connected to 220 230V single phase voltage mains with a grounding circuit 2 Prior to connection make sure that parameters of electric mains in the place of connection comply with parameters indicated on the identification plate with technical data of the unit 3 It is necessary to follow active electrical safety precautions connecting the convectorto electric mains www timberk com electric convector heater 5
