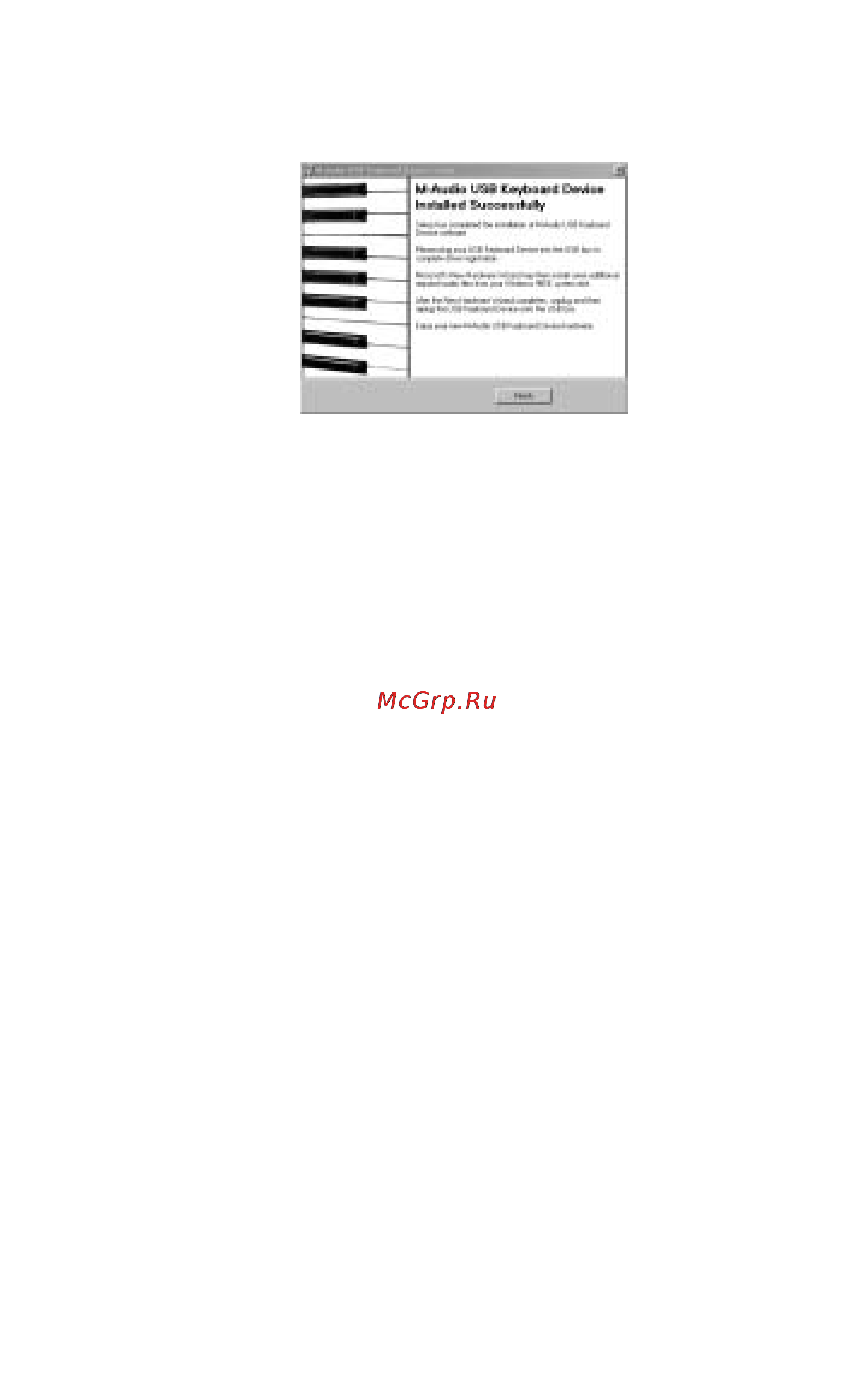

5. A dialog box will appear, stating that the installation has succeeded. Click
“Finish” to complete the driver installation.
6. Plug the Radium MIDI interface into your USB port. Be sure to either have
the power supply connected and power switch set to 9V, or if not using
power supply, be sure to set the power switch to USB Power. Upon doing
so, the computer will find and install the necessary drivers.
Windows Me or 98SE Installation is now complete.
Mac OS X
USB Driver Installation
The drivers for MacOS X are found on the Driver CD which comes with the
product.You may also wish to check the MIDISPORT drivers page of our website
to make sure you have the most recent version. The driver may be labeled
“Keystation” or “M-Audio USB”.The OSX Installer Package icon looks like a cube
of Jello rising out of a cardboard box and usually ends with the suffix “.pkg”.
To install the OSX driver:
1. Double-click on the installer package.
2. Click on the lock icon and enter the administrator password you chose
when you installed OSX.
3. Follow the prompts to install the software.
Your Radium is ready for use. Refer to the sections “Setting Up Your MIDI Studio”
and “Using the KEYSTATION in your Application Software” for more information.
Mac OS 9
USB Driver Installation
You must first install Opcode’s OMS. This is available on the MIDISPORT drivers
page of our website, or can be installed from the driver CD by opening the OMS
folder and then double clicking the OMS install icon.
10
