Advanced Functions in Edit Mode

Octave Buttons Options

TheOctave“<”and“>”buttonscanbeassignedtocontroloneofsixpossibleMIDIfunctions:

•OctaveShift •ProgramChange •BankMSB

•Transpose •BankLSB •MIDIChannelChange

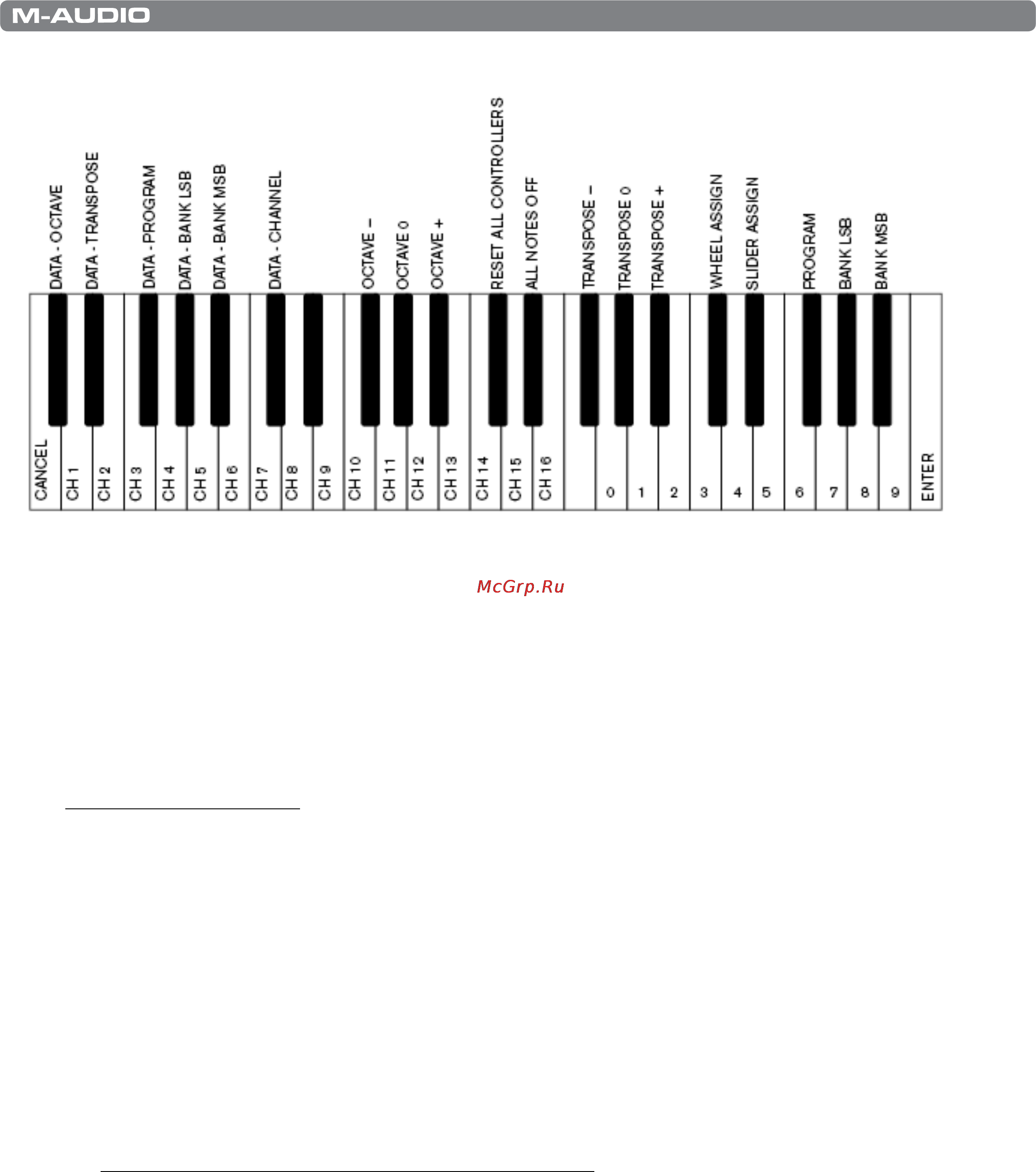

Inthediagramabove,therstsixblackkeysarelabeled“DATA=OCTAVE,DATA=TRANSPOSE,DATA=PROGRAM,DATA

=BANKLSB,DATA=BANKMSB,andDATA=CHANNEL.”Thesekeysareusedtoselectthedesiredalternatefunctionofthe

Octave buttons.

To select an alternate function:

1. Press the Edit Mode button.

2. Press the black key that represents the function you want to assign to the Octave buttons. KeyStudio will exit Edit

mode as soon as you push one of these keys.

PLEASE NOTE: Some of the functions that the Octave buttons can be used for cannot send out a value less than zero.

When used to control these functions, both lights above the buttons will remain on, regardless of the current setting of

that function.

The available functions of the octave buttons are:

Octave Shift

TheOctave“<”and“>”buttonscontroloctaveshiftbydefault.However,ifthesekeyshavebeenprogrammedtocontrol

another function, you may wish to re-assign them to control octave shift once again.

To assign the Octave “<” and “>” buttons to control octave shift:

1. Press the Edit Mode button.

  2. PresstheblackkeyaboveC1(C#1),representingDATA=OCTAVE.KeyStudiowillexitEditmodeassoonas

C#1 has been pressed.
