To switch the fan on, simply press one of the push buttons (1. 2 or 3). To stop it, press the 0
push button.
OSCILLATION
Simply press down on the button located vertically at the rear of the motor. To stop the oscil%
lation action, pull the button back up to its initial position.
SETTING THE TILT ANGLE
Slack off the knurled screw on the ball joint, move the fan to the desired angle, then tighten
the knurled screw down again.
MAINTENANCE
1. Always unplug the fan before performing any maintenance work.
2. Carefully clean the fan prior to storing.
3. When storing the fan during the winter months, be sure to keep it in a dry location protect%
ed from damp.
4. While using the fan, be sure to keep it clean by periodically wiping it with a cloth soaked in
soapy water.
5. Never use detergents or solvents.
6. Always follow the assembly procedure with care when re%assembling the fan.
SPECIFICATION
Power 50 W
Voltage 220%230 V ~ 50 Hz
Blade%diameter 16” (40 cm.)
3%speed control
SERVICE LIFE OF THE FAN NOT LESS THAN 5 YEARS
4
ENGLISH
СХЕМА ВЕНТИЛЯТОРА
РУССКИЙ
1913.qxd 03.12.03 14:53 Page 8
Содержание
- Модель vt 1913 1
- English 2
- Русский 2
- Assembl y instructions column mast 1 assemble the crossed feet 2 fit the column base onto the crossed feed using the four screws as shown opposite 3 remove the adjustment ring 4 slip the decorative cover onto the column and rest it on the crossed feet 5 pull the extension tube upwards to the desired height and then firmly tighten down the adjustment ring 3

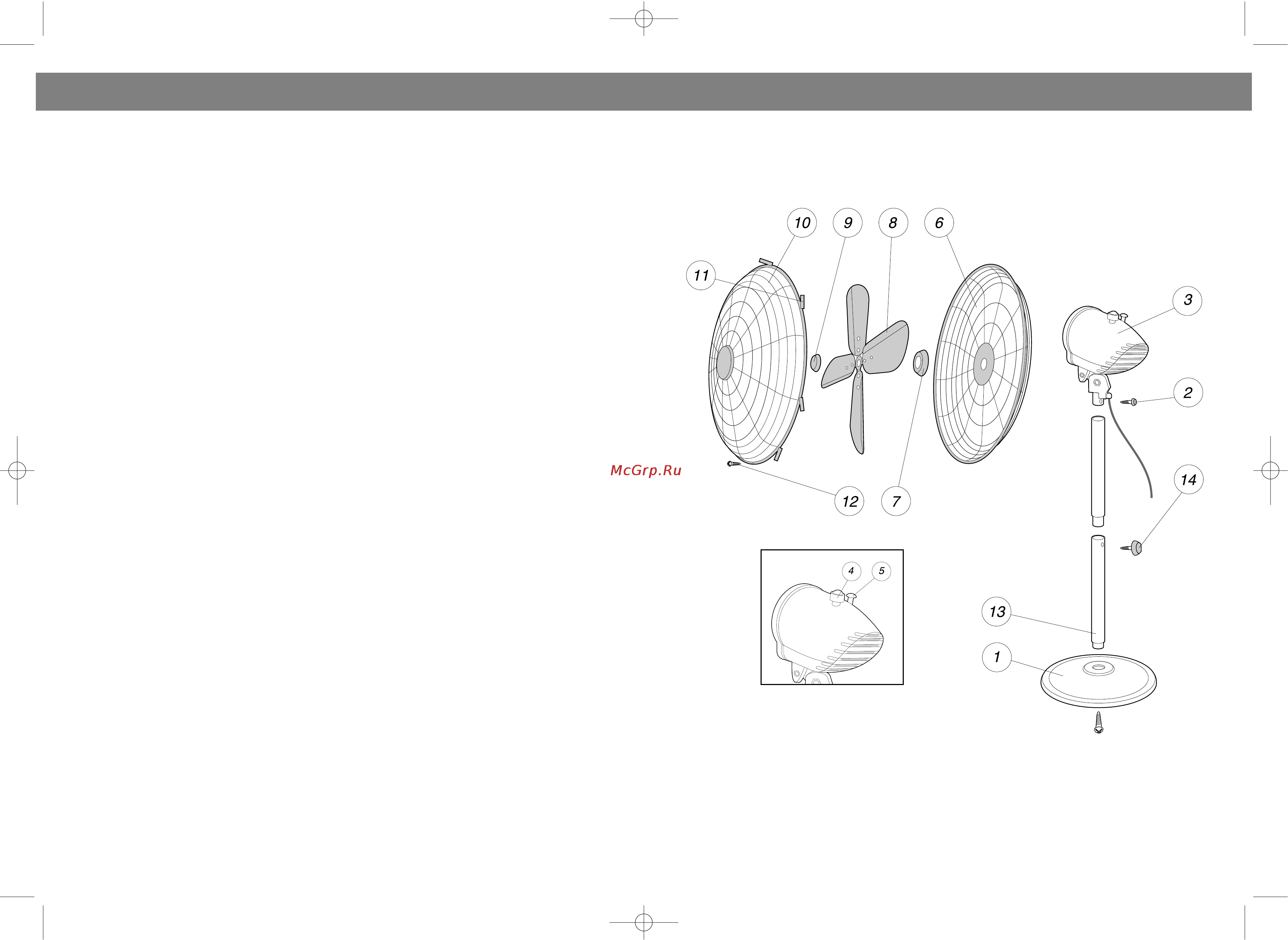

- Base 2 oscillator shaft 3 motor 4 switch 0 1 2 3 5 swivel knob 6 rear grill 7 connecting nut for the rear grill 3
