MSI 870S-G54 [50/83] Integrated peripherals

BIOS Setup

MS-7599

Chapter 3

3-11

BIOS Setup

MS-7599

Chapter 3

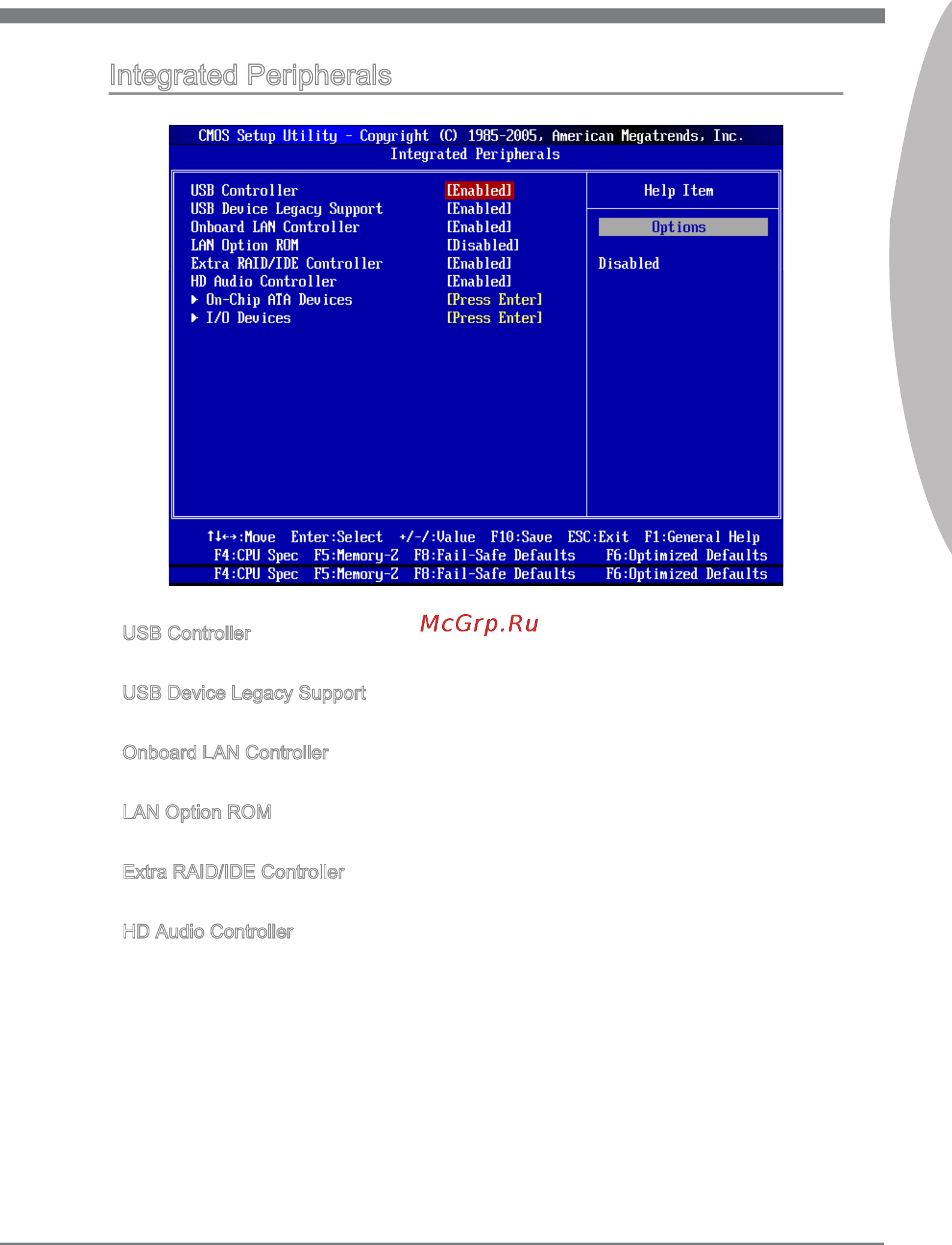

Integrated Perpherals

USB Controller

Ths settng allows you to enable/dsable the onboard USB 1.1/ 2.0 controller.

USB Devce Legacy Support

Select [Enabled] f you need to use a USB-nterfaced devce n the operatng system.

Onboard LAN Controller

Ths settng allows you to enable/dsable the onboard LAN controller.

LAN Opton ROM

Ths tem s used to decde whether to nvoke the Boot ROM of the onboard LAN.

Extra RAID/IDE Controller

Ths settng s used to enable/dsable the extra RAID/ IDE controller.

HD Audo Controller

Ths settng s used to enable/dsable the onboard audo controller.

▶
