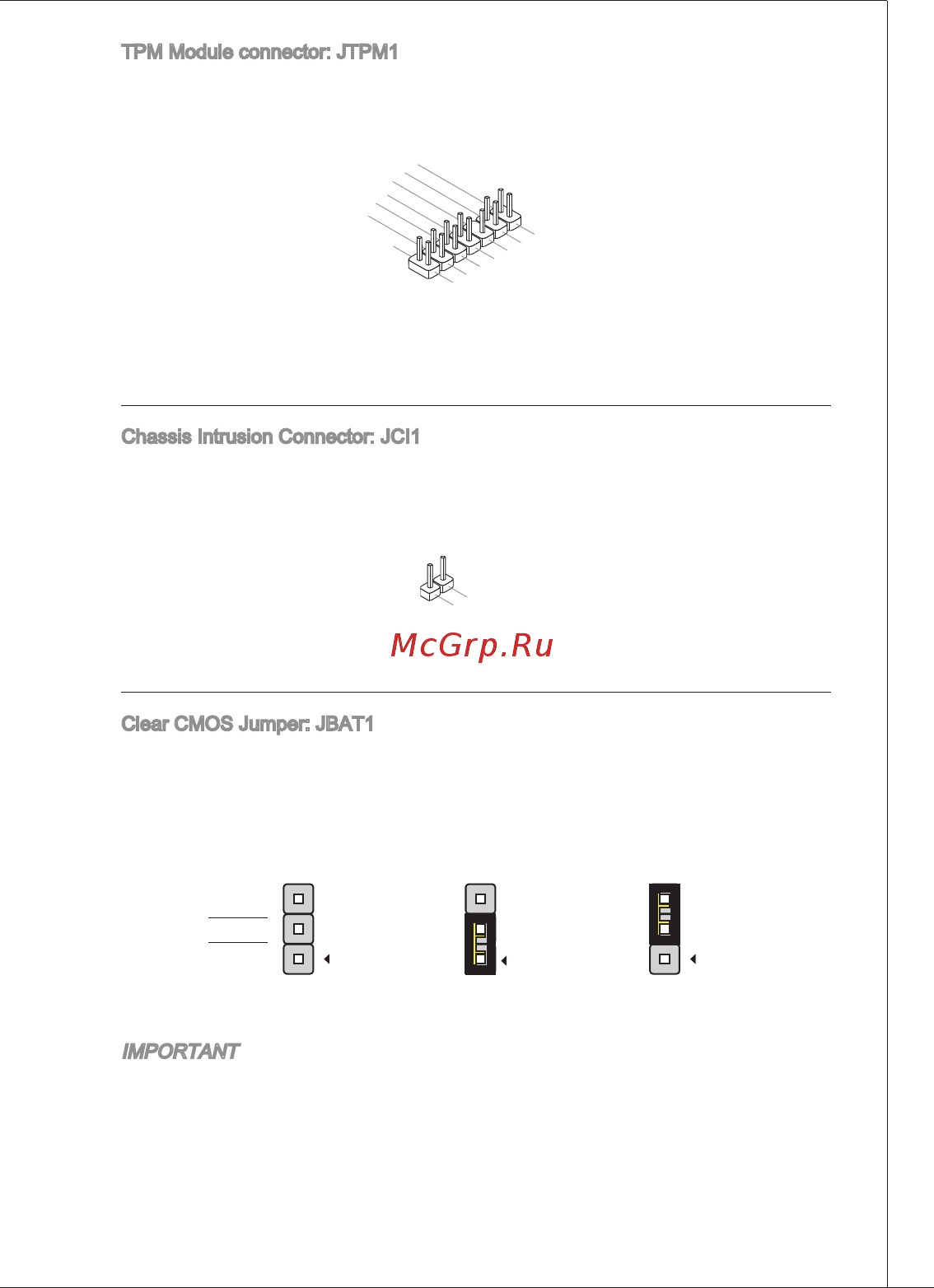

MS 7641 TPM Module connector JTPM1 This connector connects to a TPM Trusted Platform Module module Please re fer to the TPM security platform manual for more details and usages Chassis Intrusion Connector JCI1 This connector connects to the chassis intrusion switch cable If the chassis is opened the chassis intrusion mechanism will be activated The system will record this status and show a warning message on the screen To clear the warning you must enter the BIOS utility and clear the record Clear CMOS Jumper JBAT1 There is a CMOS RAM on board with an external battery power supply to preserve the system configuration data With the CMOS RAM the system can automatically boot OS every time it is turned on If you want to clear the system configuration set the jumper to clear data IMPORTANT You can dear CMOS by shorting 2 3 pin while the system is off Then return to 1 2 pin position Avoid dearing the CMOS while the system is on it win damage the mainboard 19
