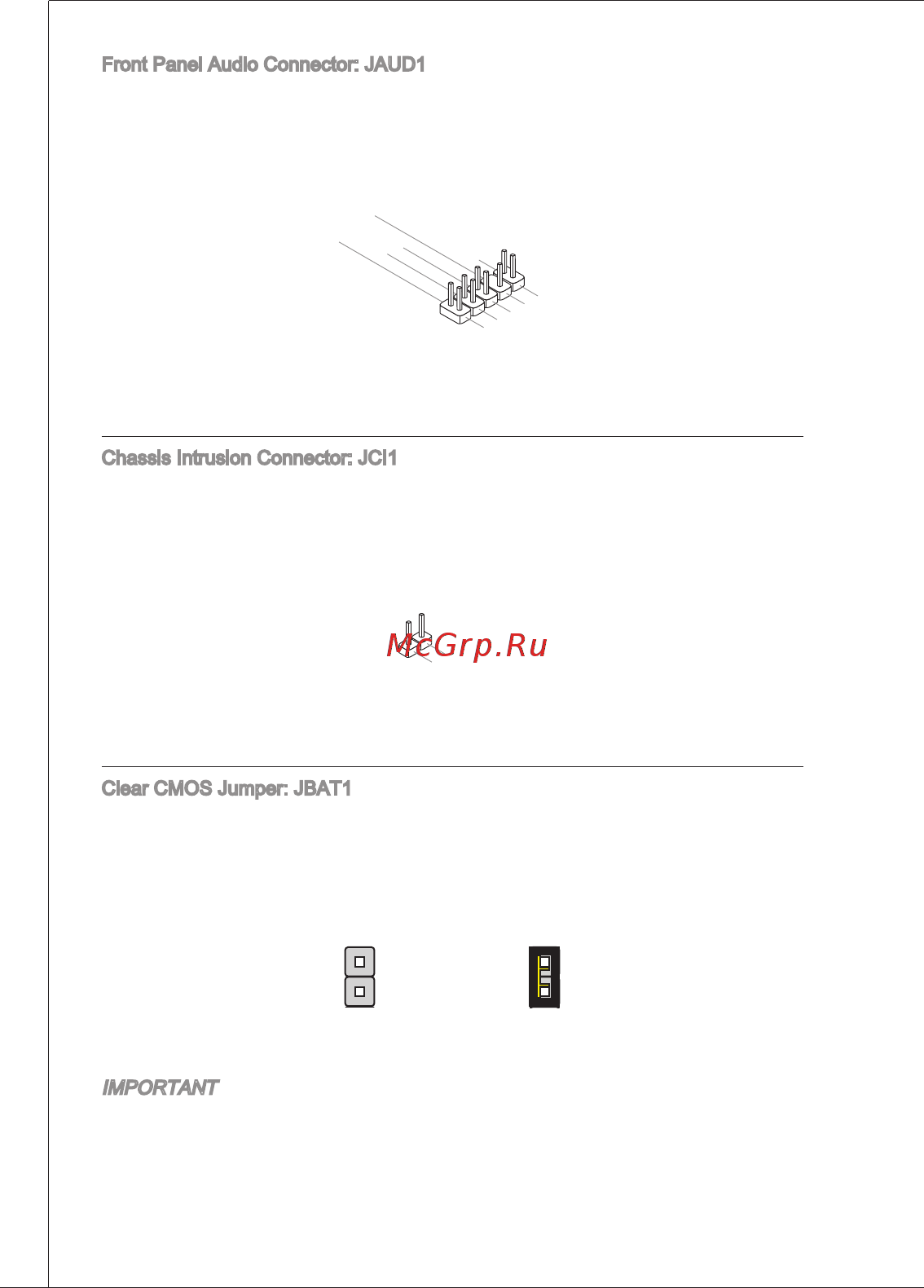

Front Panel Audio Connector JAUD1 This connector allows you to connect the front panel audio and is compliant with Intel Front Panel VO Connectivity Design Guide Chassis Intrusion Connector JCI1 This connector connects to the chassis intrusion switch cable If the chassis is opened the chassis intrusion mechanism will be activated The system will record this status and show a warning message on the screen To clear the warning you must enter the BIOS utility and clear the record Clear CMOS Jumper JBAT1 There is a CMOS RAM on board with an external battery power supply to preserve the system configuration data With the CMOS RAM the system can automatically boot OS every time it is turned on If you want to clear the system configuration please temporarily short these two pins to clear data by using a metal object Keep Data Clear Data IMPORTANT You can dear CMOS by touching two pins once with a metal object while the system is off Avoid dearing the CMOS while the system is on it will damage the mainboard
