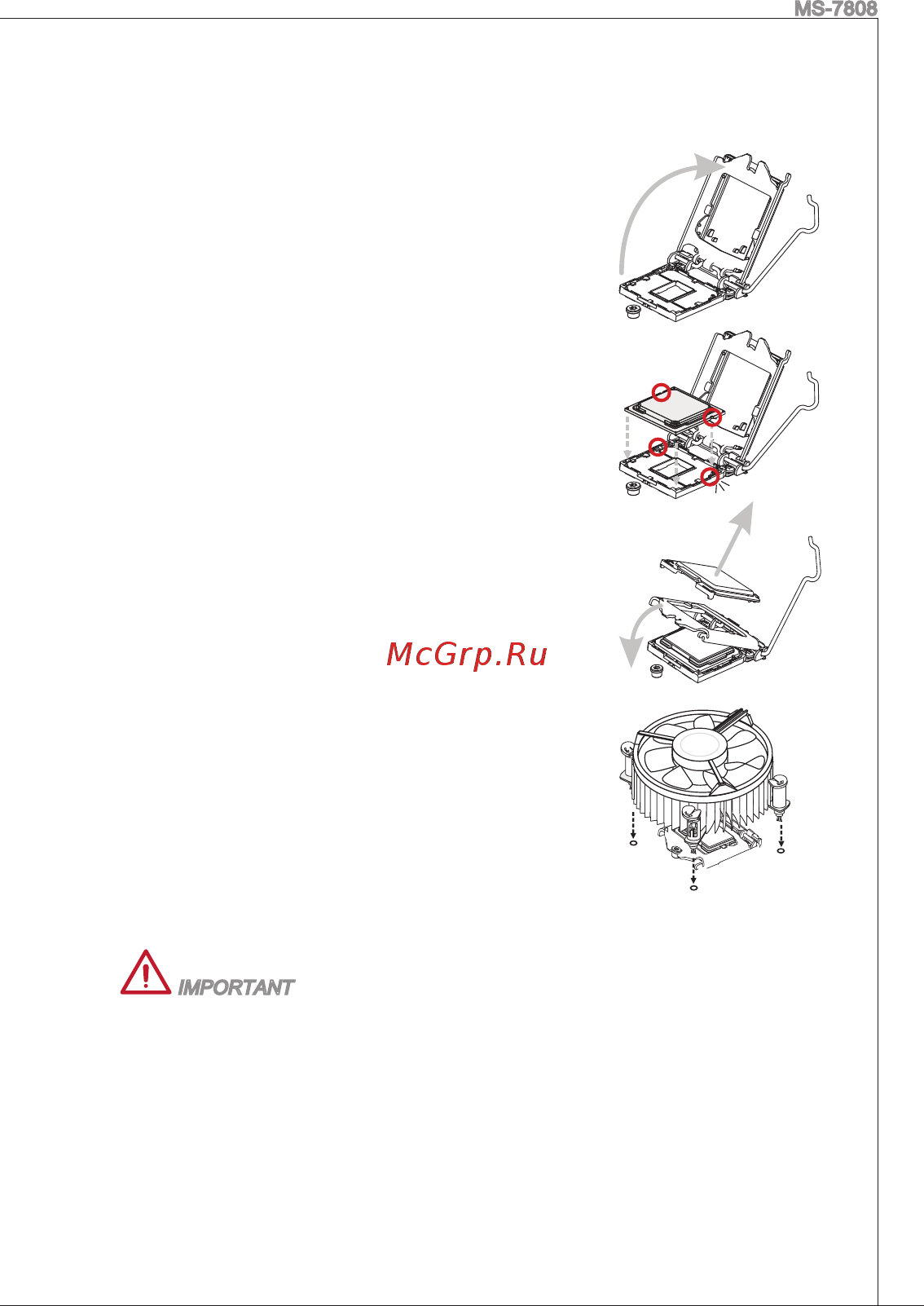

MS 7808 Follow the steps below to install the CPU cooler correctly 1 Unhook and lift the loading lever to the fully open position 2 The loading plate should automatically lift up as the loading lever is pushed to the fully open position Do not touch any of the CPU socket pins 3 Line up the CPU to fit the CPU socket Be sure to hold the CPU by the base with the metal contacts facing downward The alignment keys on the CPU will line up with the edges of the CPU socket to ensure a correct fit 4 Close the loading plate and remove the plastic protective cap 5 Inspect the CPU to check if it is properly seated in the socket Press the loading lever down and lock it under the retention tab 6 Evenly spread a thin layer of thermal paste or thermal tape on the top of the CPU This will help in heat dissipation and prevent CPU overheating 7 Locate the CPU fan connector on the mainboard 8 Place the heatsink on the mainboard with the fan s wires facing towards the fan connector and the hooks matching the holes on the mainboard 9 Push down on the heatsink until the four clips get wedged into the holes on the mainboard Press the four hooks down to fasten the cooler As each hook locks into position a click should be heard 10 Inspect the mainboard to ensure that the clip ends have been properly locked in place 11 Finally attach the CPU fan cable to the CPU fan connector on the mainboard IMPORTANT Do not touch the CPU socket pins Confirm that the CPU cooler has formed a tight seal with the CPU before boot ing your system Whenever the CPU is not installed always protect the CPU socket pins by cov ering the socket with the plastic cap Please refer to the documentation in the CPU cooler package for more details about CPU cooler installation 15
