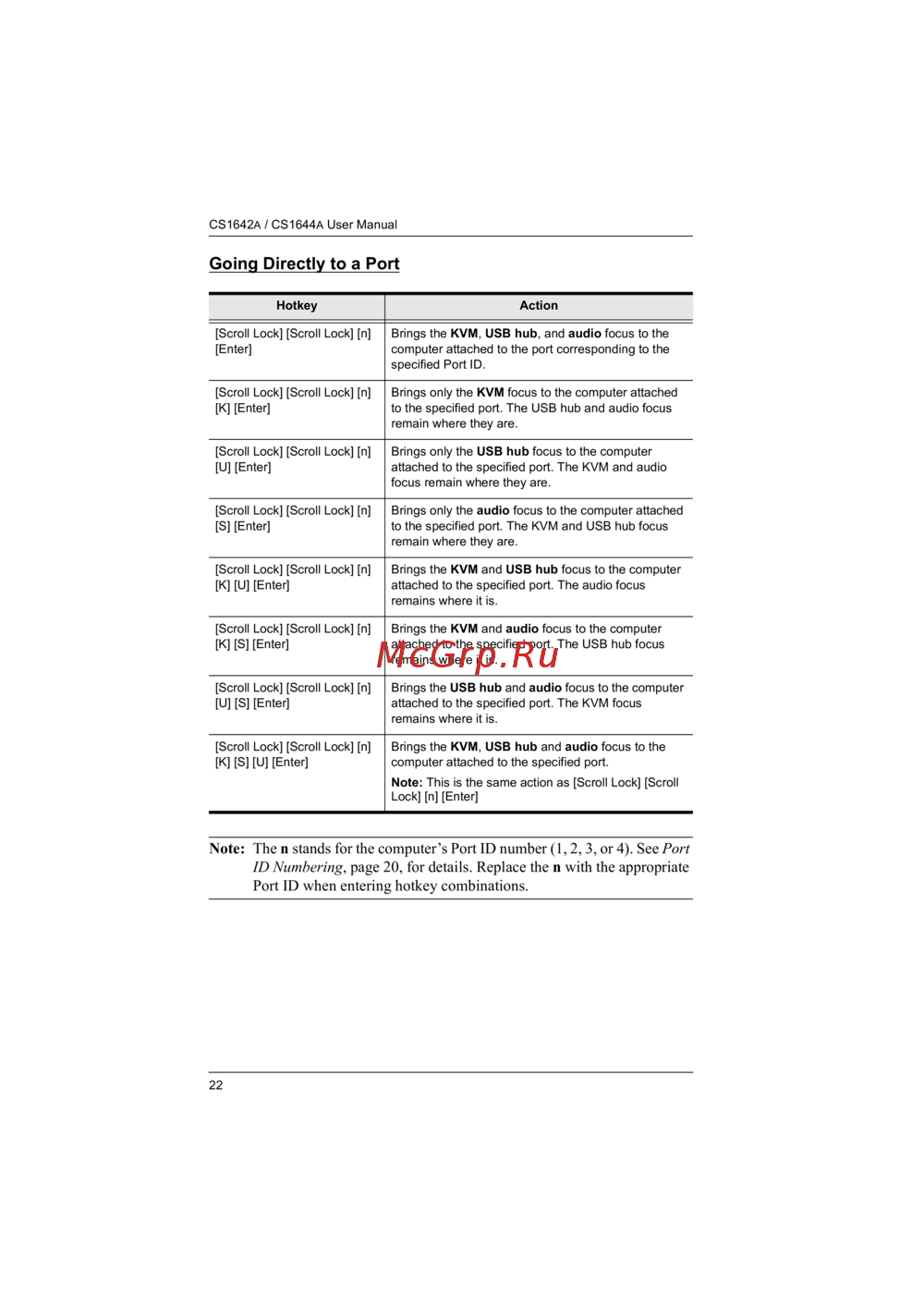

CS1642A / CS1644A User Manual
22
Going Directly to a Port
Note: The n stands for the computer’s Port ID number (1, 2, 3, or 4). See Port
ID Numbering, page 20, for details. Replace the n with the appropriate
Port ID when entering hotkey combinations.
Hotkey Action
[Scroll Lock] [Scroll Lock] [n]
[Enter]
Brings the KVM, USB hub, and audio focus to the
computer attached to the port corresponding to the
specified Port ID.
[Scroll Lock] [Scroll Lock] [n]
[K] [Enter]
Brings only the KVM focus to the computer attached
to the specified port. The USB hub and audio focus
remain where they are.
[Scroll Lock] [Scroll Lock] [n]
[U] [Enter]
Brings only the USB hub focus to the computer
attached to the specified port. The KVM and audio
focus remain where they are.
[Scroll Lock] [Scroll Lock] [n]
[S] [Enter]
Brings only the audio focus to the computer attached
to the specified port. The KVM and USB hub focus
remain where they are.
[Scroll Lock] [Scroll Lock] [n]
[K] [U] [Enter]
Brings the KVM and USB hub focus to the computer
attached to the specified port. The audio focus
remains where it is.
[Scroll Lock] [Scroll Lock] [n]
[K] [S] [Enter]
Brings the KVM and audio focus to the computer
attached to the specified port. The USB hub focus
remains where it is.
[Scroll Lock] [Scroll Lock] [n]
[U] [S] [Enter]
Brings the USB hub and audio focus to the computer
attached to the specified port. The KVM focus
remains where it is.
[Scroll Lock] [Scroll Lock] [n]
[K] [S] [U] [Enter]
Brings the KVM, USB hub and audio focus to the
computer attached to the specified port.
Note: This is the same action as [Scroll Lock] [Scroll
Lock] [n] [Enter]
