ATEN International Co., Ltd.
3F., No.125, Sec. 2, Datong Rd., Sijhih District., New Taipei City 221, Taiwan
Phone: 886-2-8692-6789 Fax: 886-2-8692-6767
www.aten.com E-mail: marketing@aten.com
© Copyright 2014 ATEN® International Co., Ltd.
ATEN and the ATEN logo are trademarks of ATEN International Co., Ltd.
All rights reserved. All other trademarks are the property of their
respective owners.
Printed 09/2014 V5.0
SOHO & SMB Solutions

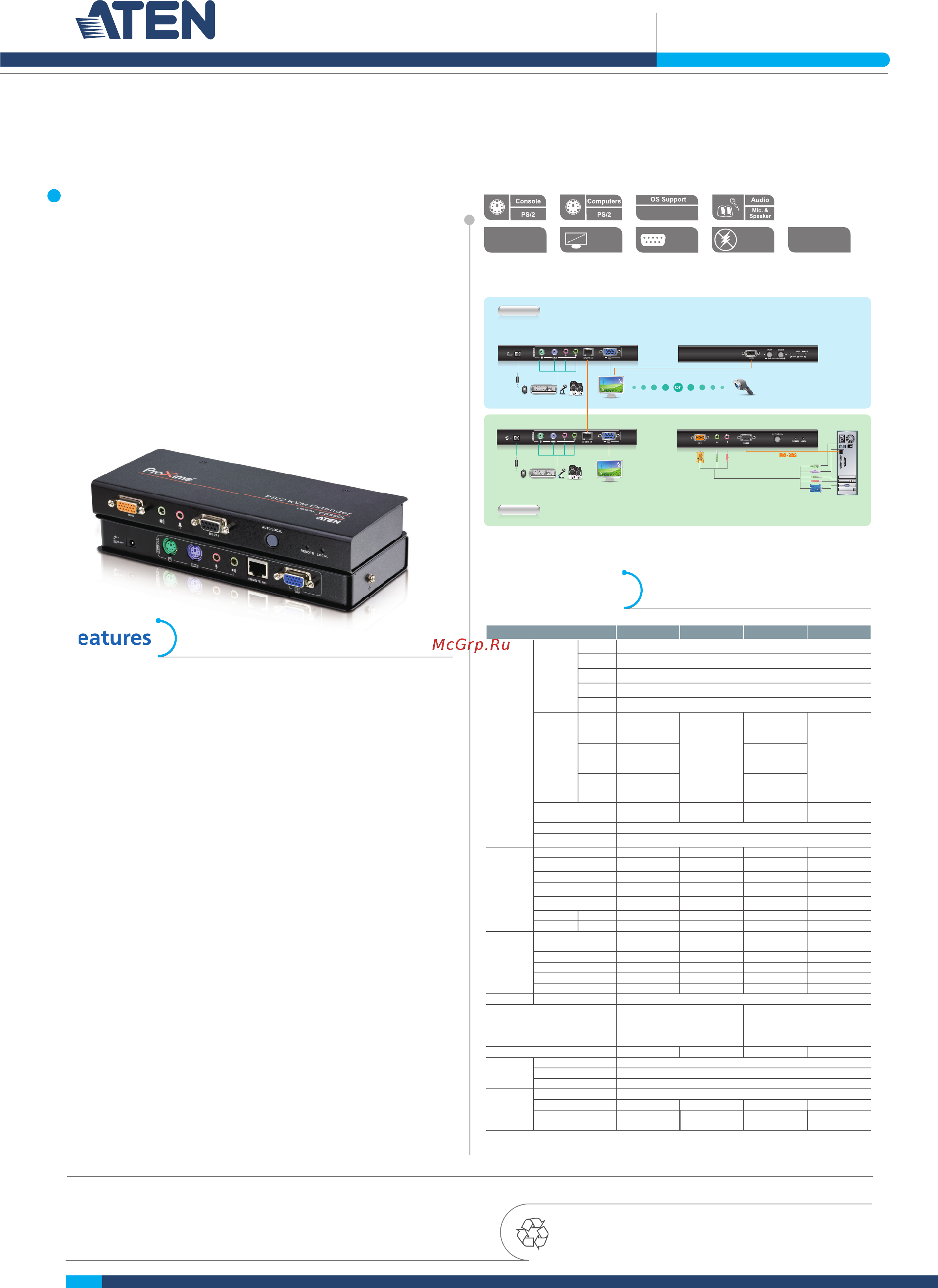

CE350 / CE370
PS/2 KVM Extender
Specifi cation
Features
The CE350 / CE370 is a PS/2 based KVM Extender with automatic
signal compensation and RS-232 serial functionality allow access to a
computer system from a remote PS/2 console (PS/2 keyboard, monitor,
and PS/2 mouse). Because it allows access to a computer system
from a remote console, the CE350 / CE370 is perfect for use in any
type of installation where you need to place the console where it is
conveniently accessible, but you want the system equipment to reside
in a safe location – away from the dust and dirt of the factory fl oor, or
the harsh environmental infl uence of a construction site, for example.
This allows users to deploy system equipment over large distances.
The CE370 supports RGB delay tuner to manually synchronize the
RGB signals. This allows users to deploy system equipment over large
distances. The CE370’s line synchronizing function corrects color phase
and timing errors that occur over long distance transmissions. It also
enables you to manually tune the R/G/B signal settings
• Local and Remote Units connect at distances up to 300 m using Cat 5e cable
• Deskew Function (CE370 only) – automatically synchronizes the time delay of RGB
signals to compensate for distance
• On Screen Display (CE370 only) – conveniently adjust video quality with the intuitive
OSD menu system
• Manually tune the R/G/B settings, store and retrieve (CE370 only)
• Adjustable gain control – automatically and manually adjust signal strength to
compensate for distance
• Dual console operation – control your system from both the local and remote
keyboard, monitor, and mouse consoles
• Built-in ASIC for greater reliability and compatibility
• Auto Signal Compensation (ASC) and storage of settings
• RS-232 serial ports – connect to a serial terminal, or serial devices such as
touchscreens and barcode scanners (Baud Rate 115200 bps)
• Audio Enabled – supports stereo speakers and microphone
• Pushbutton operating mode selection (Local Unit only) – select between Local and
Auto operating modes, with the press of a single button
• Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV
surge protection
• Superior video quality –
CE350: 1920 x 1200@60Hz(30m), 1600 x 1200@60Hz(150m)
CE370: 1920 x 1200@60Hz(150m), 1280 x 1024@60Hz(300m)
• Superior Audio – no loss in audio quality at 300 m
• Supports Wide Screen formats*
• Supports VGA, SVGA, SXGA (1280 x 1024), UXGA (1600 x 1200), WUXGA (1920 x
1200) and multisync monitors; local monitor supports DDC; DDC2; DDC2B
• Hot pluggable
• Rack mountable
• Easy to install – no software required – connecting cables to the devices is all it
takes
* The EDID data for a widescreen is sent from the local video output port. For widescreen
modes and displays connect the monitor to the local video output port or use an ATEN EDID
emulator.
Function CE350L CE350R CE370L CE370RQ
Connectors
Console
Ports
Keyboard 1 x 6-pin Mini-DIN Female (Purple)
Video 1 x HDB-15 Female (Blue)
Mouse 1 x 6-pin Mini-DIN Female (Green)
Speakers 1 x Mini Stereo Jack Female (Green)
Mic. 1 x Mini Stereo Jack Female (Pink)
KVM
Ports
KB / Video
/
Mouse
1 x SPHD-17
Female
(Yellow)
N/A
1 x SPHD-17
Female
(Yellow)
N/A
Speakers
1 x Mini Stereo
Jack
(Green)
1 x Mini Stereo
Jack
(Green)
Mic.
1 x Mini Stereo
Jack
(Pink)
1 x Mini Stereo
Jack
(Pink)
RS-232
1 x DB-9 Female
(Black)
1 x DB-9 Male
(Black)
1 x DB-9 Female
(Black)
1 x DB-9 Male
(Black)
Unit to Unit 1 x RJ-45 Female (Black)
Power 1 x DC Jack (Black)
LEDs
Local 1 (Green) N/A 1 (Green) N/A
Remote 1 (Green) 1 (Red) 1 (Green) N/A
Link N/A 1 (Orange) N/A N/A
Picture Compensation N/A 1 (Blue) N/A N/A
B N/A N/A N/A 1 (Blue)
G Link N/A N/A N/A 1 (Orange/Green)
R Remote N/A N/A N/A 1 (Red)
Pushbuttons
Operating Mode
Selection
1 x Pushbutton N/A 1 x Pushbutton N/A
Compensation / Up N/A 1 x Pushbutton N/A N/A
Compensation / Down N/A 1 x Pushbutton N/A N/A
Color N/A N/A N/A 1 x Pushbutton
Select N/A N/A N/A 1 x Pushbutton
Emulation Keyboard / Mouse PS/2
Video
1920 x 1200 @ 60Hz (30 m);
1600 x 1200 @ 60Hz (150 m );
DDC, DDC2, DDC2B
1920 x 1200 @ 60Hz (150 m);
1280 x 1024 @ 60Hz
(300 m); DDC, DDC2, DDC2B
Power Consumption DC5.3V/3.38W DC5.3V/4.77W DC5.3V/3.38W DC5.3V/6.43W
Environment
Operating Temp. 0–50ºC
Storage Temp -20–60ºC
Humidity 0–80% RH, Non-condensing
Physical
Properties
Housing Metal
Weight 0.49 kg 0.48 kg 0.49 kg 0.48 kg
Dimensions (L x W x H)
20.20 x 8.64 x
2.50 cm
20.20 x 8.64 x
2.50 cm
20.20 x 8.64 x
2.50 cm
20.20 x 8.64 x
2.50 cm
Win, Linux,
FreeBSD
Wide
Screen
Support
RS-232
Surge
Protection
ATEN
Deskew
Features
(CE370) (CE370)
Adjustable
RGB
Remote
Local
CE370RQ Front View
CE350R / CE370RQ Rear View
Console Touchscreen Barcode Scanner
Console
CE350L / CE370L Rear View
Serial cable
Cat 5e cable
300m
RS-232
CE350L / CE370L Front View
RS-232
Local PC
