ATEN International Co., Ltd.
3F., No.125, Sec. 2, Datong Rd., Sijhih District., New Taipei City 221, Taiwan
Phone: 886-2-8692-6789 Fax: 886-2-8692-6767
www.aten.com E-mail: marketing@aten.com
© Copyright 2014 ATEN® International Co., Ltd.
ATEN and the ATEN logo are trademarks of ATEN International Co., Ltd.
All rights reserved. All other trademarks are the property of their
respective owners.
Printed 10/2014 V6.0
VanCryst™ Professional A/V Solutions

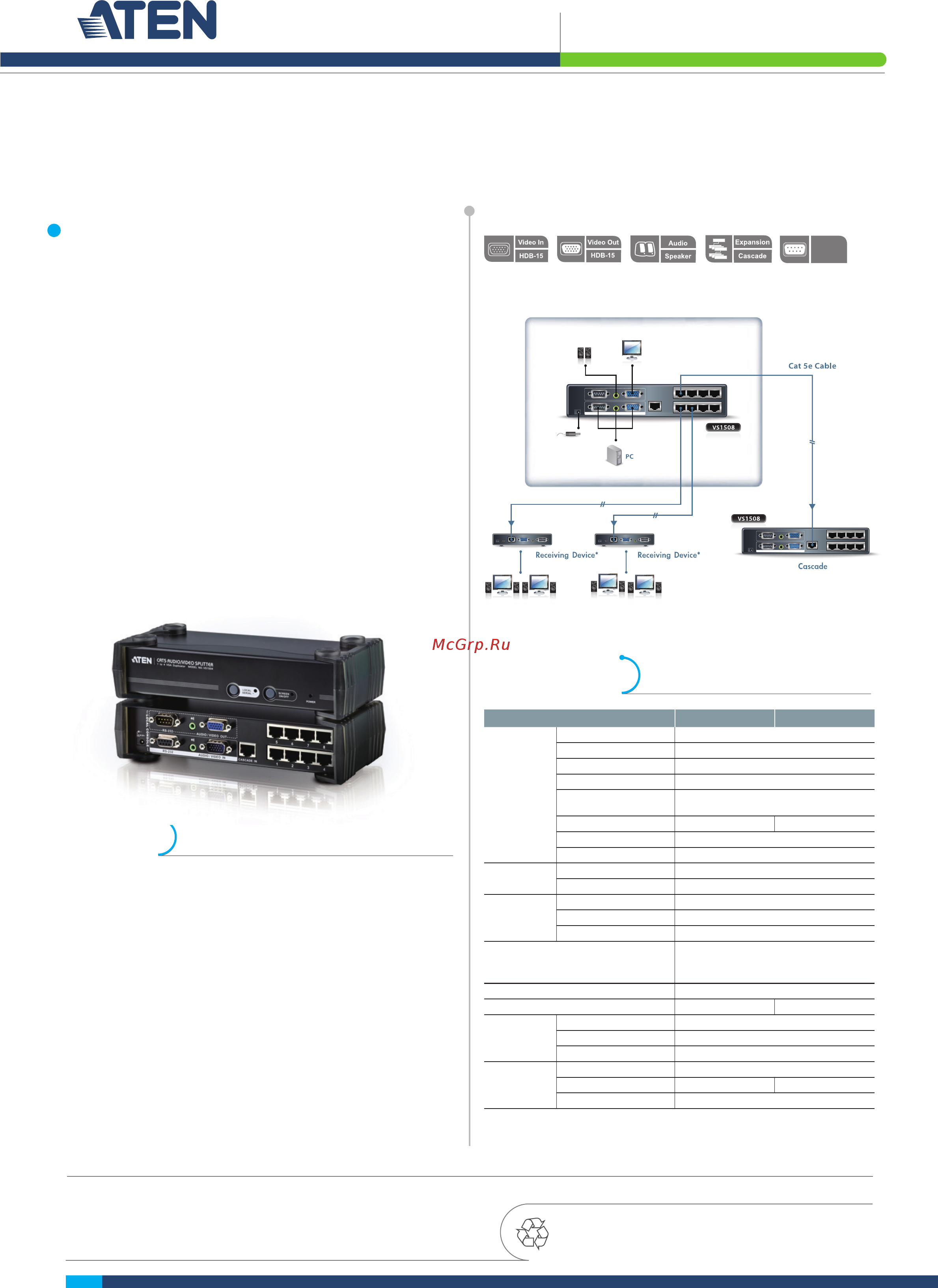

VS1504 / VS1508
Media Distribution Solution
4/8-Port Cat 5 Audio/ Video Splitter
Specification
Features
The VS1504T / VS1508T Cat 5 Audio/Video Splitter is a splitter
designed to connect one source to 4 or 8 displays over a long
distance. Incorporating suggested compatible receivers*, the
VS1504T / VS1508T A/V Over Cat 5 Splitter can be a complete
solution ideal for any professional A/V installation that requires
multimedia content to be delivered to multiple destinations located
up to 500 m away from the source.
* Suggested Compatible Receiver Units:
VB552 VGA Over Cat 5 Repeater + Audio
VE200R Audio/Video Receiver
Cascadable to three levels, the VS1504 / VS1508 can support
thousands of displays when combined in an installation with ATEN
repeaters or extenders. Incorporating RS-232 connectivity so serial
devices such as touchscreens can be included in the installation.
The solution is perfect for a wide range of applications:
• In-store or tradeshow digital signage
• Broadcasting information to public locations
• Sporting events
• Theater and lecture overview rooms
• Classroom and company training facilities
•
One video input to 4/8 video outputs
•
Cascadable to three levels – provides up to thousands of video signals
when combined in an installation with ATEN receiving devices*
•
Audio and serial enabled
•
Uses Cat 5e (or higher) cable to extend displays up to 150 m , 450m
when combined with aten receiving devices
•
High quality video – supports up to 1920x1200@60Hz
•
Group screens off/on function
•
Provides a RS-232 channels for selection**
* Receiving Devices
a. ATEN VB552 (VGA Over Cat 5 Repeater)
b. ATEN VE200R (Audio/Video Extender)
**Only one RS-232 channel can be selected at a time.
RS-232
Function VS1504 VS1508
Connectors
Video In 1 x HDB-15 Male (Blue)
Video Out 1 x HDB-15 Female (Blue)
Audio In 1 x Mini Stereo Jack Female (Green)
Audio Out 1 x Mini Stereo Jack Female (Green)
RS-232
1 x DB-9 Female (Black)
1 x DB-9 Male (Black)
Unit to Unit 4 x RJ-45 Female 8 x RJ-45 Female
Cascade In 1 x RJ-45 Female
Power 1 x DC Jack
Switches
Local RS-232 Port 1 x Pushbutton
Group Screen On / Off 1 x Pushbutton
LEDs
Power 1 (Orange)
Local RS-232 Port 1 (Green)
Group Screen On / Off 1 (Green)
Video
1920x1200@60Hz at 30m
1600x1200@60Hz at 150m
1280x1024@60Hz at 200m
Transmission Distance 150 m
Power Consumption DC5.3V, 4.7W DC5.3V, 6.9W
Environment
Operating Temp. 0–50°C
Storage Temp. -20–60°C
Humidity 0–80% RH, Non-condensing
Physical
Properties
Housing Metal
Weight 0.75kg 0.76kg
Dimensions (L x W x H)
21.00x 8.80 x 5.55 cm
* The specifications and pictures are subject to change without notice.
