VM5404D / VM5808D User Manual
28

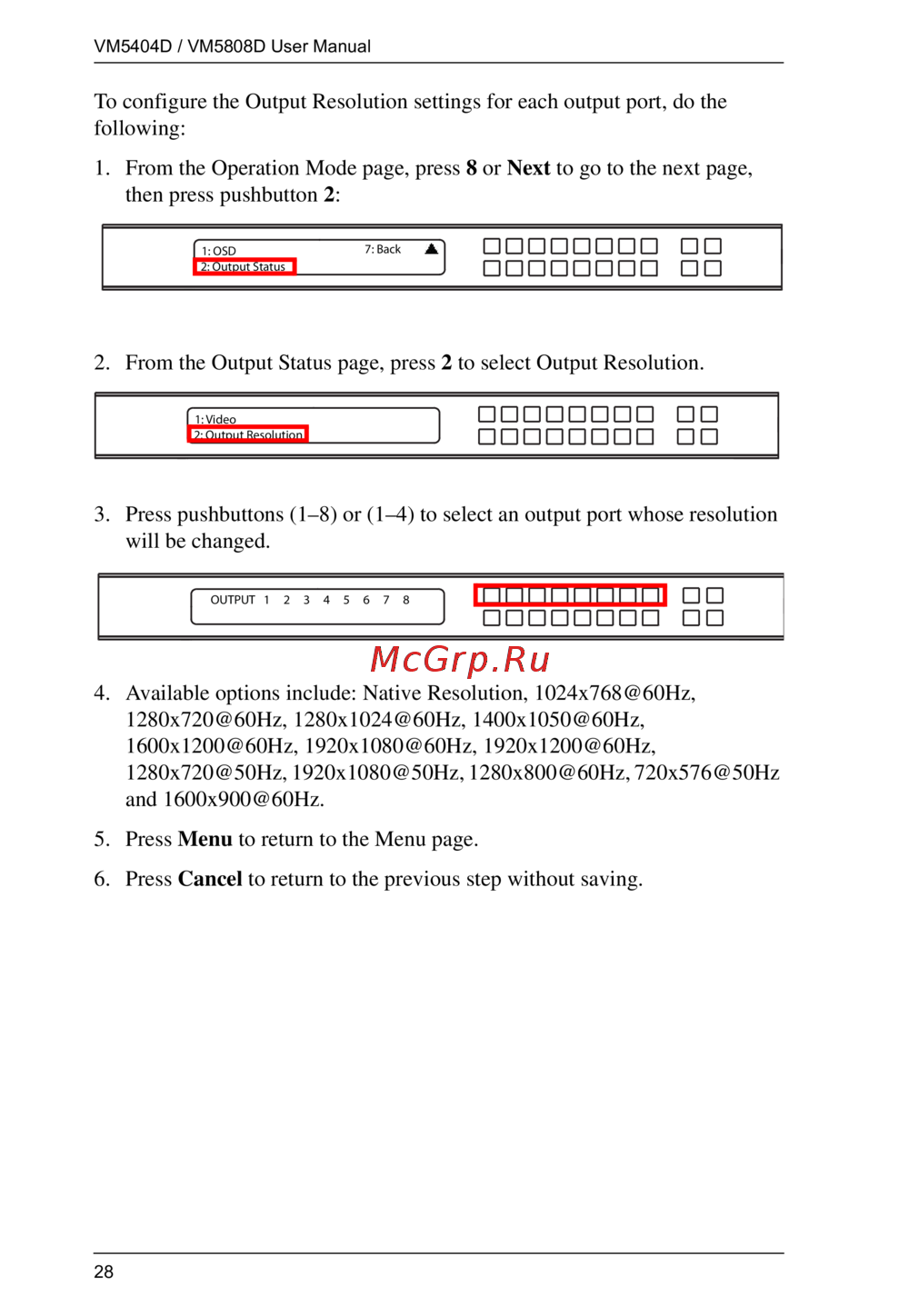

To configure the Output Resolution settings for each output port, do the
following:
1. From the Operation Mode page, press 8 or Next to go to the next page,
then press pushbutton 2:
2. From the Output Status page, press 2 to select Output Resolution.
3. Press pushbuttons (1–8) or (1–4) to select an output port whose resolution
will be changed.
4. Available options include: Native Resolution, 1024x768@60Hz,
1280x720@60Hz, 1280x1024@60Hz, 1400x1050@60Hz,
1600x1200@60Hz, 1920x1080@60Hz, 1920x1200@60Hz,
1280x720@50Hz, 1920x1080@50Hz, 1280x800@60Hz, 720x576@50Hz
and 1600x900@60Hz.
5. Press Menu to return to the Menu page.
6. Press Cancel to return to the previous step without saving.
1: OSD
7: Back
2: Output Status
1: Video
2: Output Resolution
OUTPUT 1 2 3 4 5 6 7 8
