Chapter 1
6
B85H3-M3 USER MANUAL

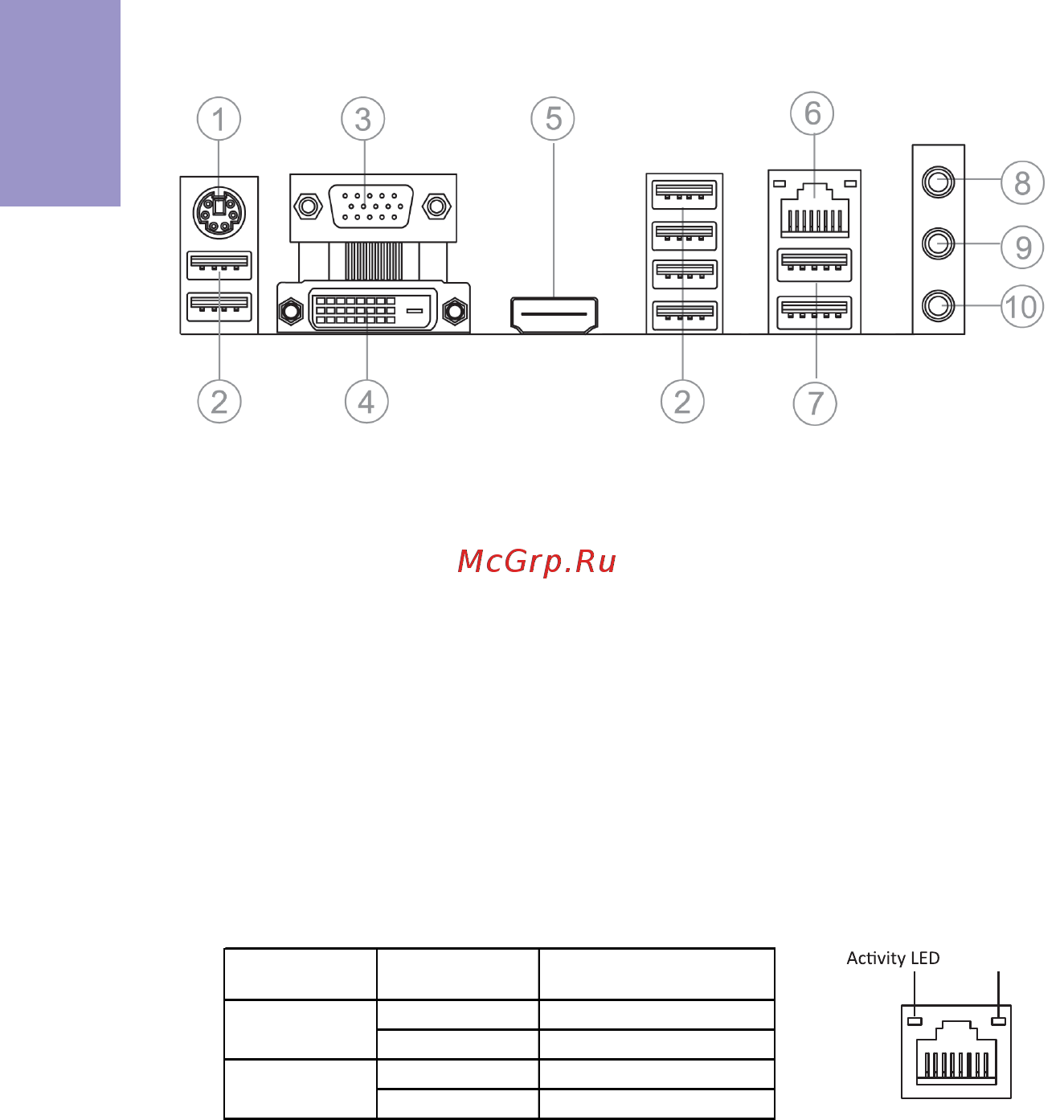

I/O Ports
1. PS/2 Mouse and PS/2 Keyboard combo connector
Use this PS/2 port to connect a PS/2 mouse or a PS/2 keyboard.
2. USB 2.0 Ports
Use the USB 2.0 ports to connect USB 2.0 devices.
3. VGA Port
Connect your monitor to the VGA port.
4. DVI Port
You can connect the display device to the DVI port.
5. HDMI Port
You can connect the display device to the HDMI port.
6. LAN Port
Connect an RJ-45 jack to the LAN port to connect your computer to the Network.
7. USB 3.0 Ports
Use the USB 3.0 ports to connect USB 3.0 devices.
8. Line-in(blue)
It can be connected to an external CD/DVD player, Tape player or other audio
devices for audio input.
9. Line-out(lime)
It is used to connect to speakers or headphones.
10. Microphone(pink)
It is used to connect to a microphone.
LAN LED Status Description
OFF No data
Orange blinking Active
OFF No link
Green Link
Activity LED
Link LED
Link LED
LAN Port
