Chapter 2

B85H3-M3 USER MANUAL

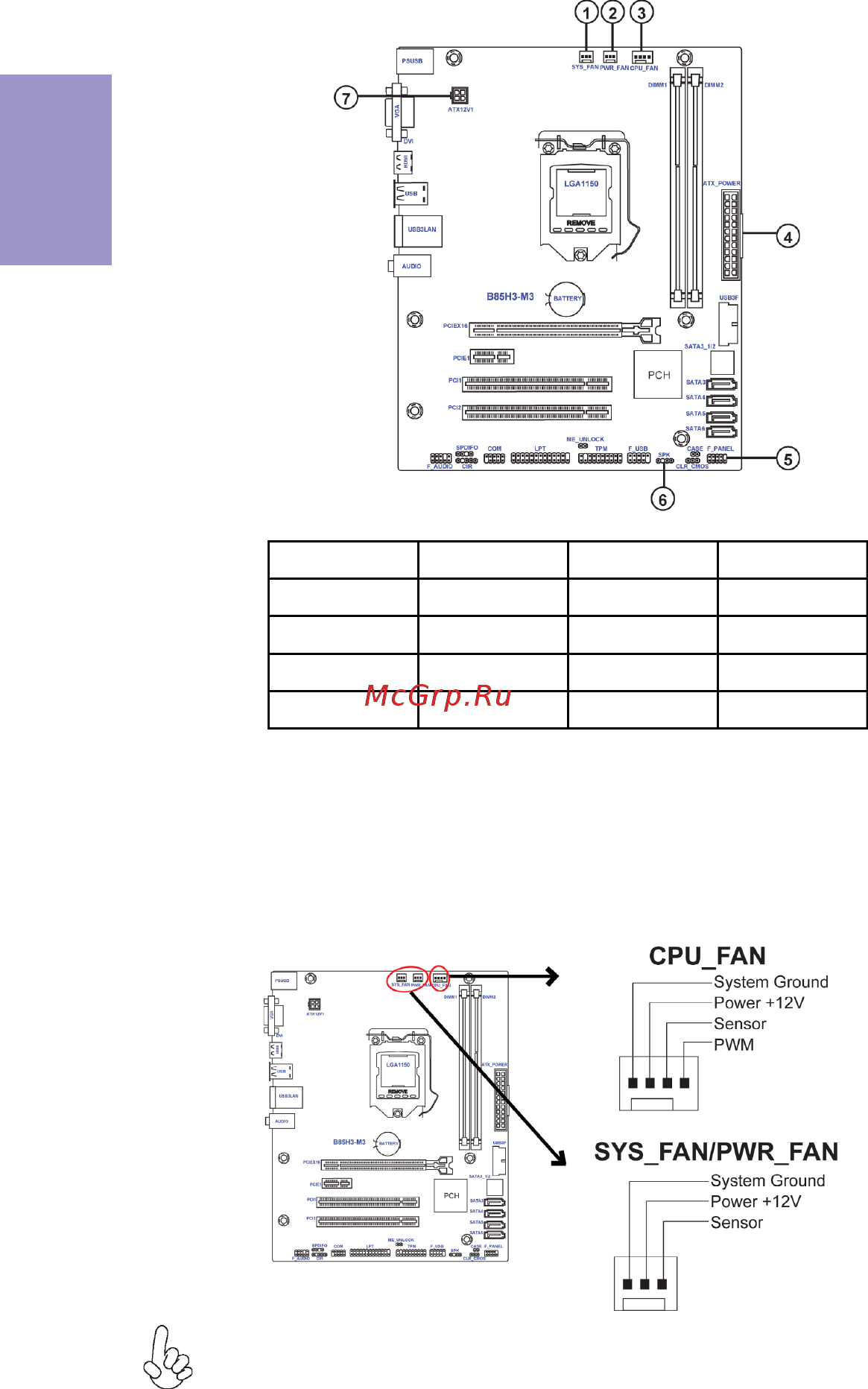

1, 2 & 3. SYS_FAN(System Cooling FAN Power Connector), PWR_FAN(Power

Cooling FAN Power Connector) & CPU_FAN(CPU cooling FAN Power Connector)

After you have installed the motherboard into a case, you can begin connecting the

motherboard components. Refer to the following:

Connect the system cooling fan connector to SYS_FAN.

Users please note that the fan connector supports the CPU cooling fan of 1.1A

~ 2.2A (26.4W max) at +12V.

2-4-7. Connecting Case Components

No. Components No. Components

1 SYS_FAN 5 F_PANEL

2PWR_FAN6 SPK

3CPU_FAN 7 ATX12V1

4ATX_POWER- -

Connect the power cooling fan connector to PWR_FAN.

Connect the CPU cooling fan cable to CPU_FAN
