Chapter 2

B85H3-M5 USER MANUAL

This is a header that can be used to connect to the printer, scanner or other devices.

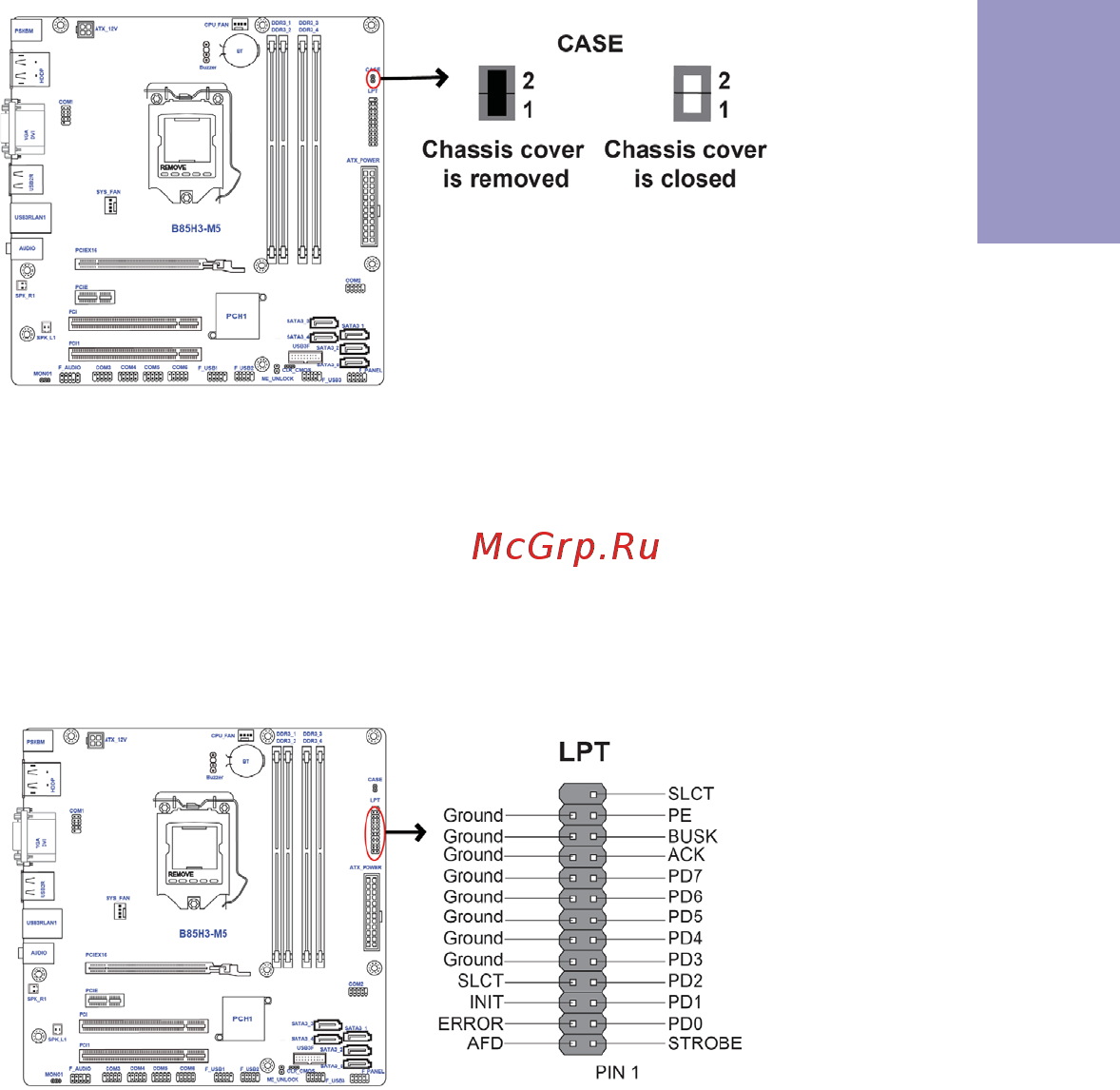

2. LPT: Onboard parallel port header

1. CASE: Chassis Intrusion Detect Header

This detects if the chassis cover has been removed. This function needs a chassis

equipped with instrusion detection switch and needs to be enabled in BIOS.
