A960M-M4 USER MANUAL
3

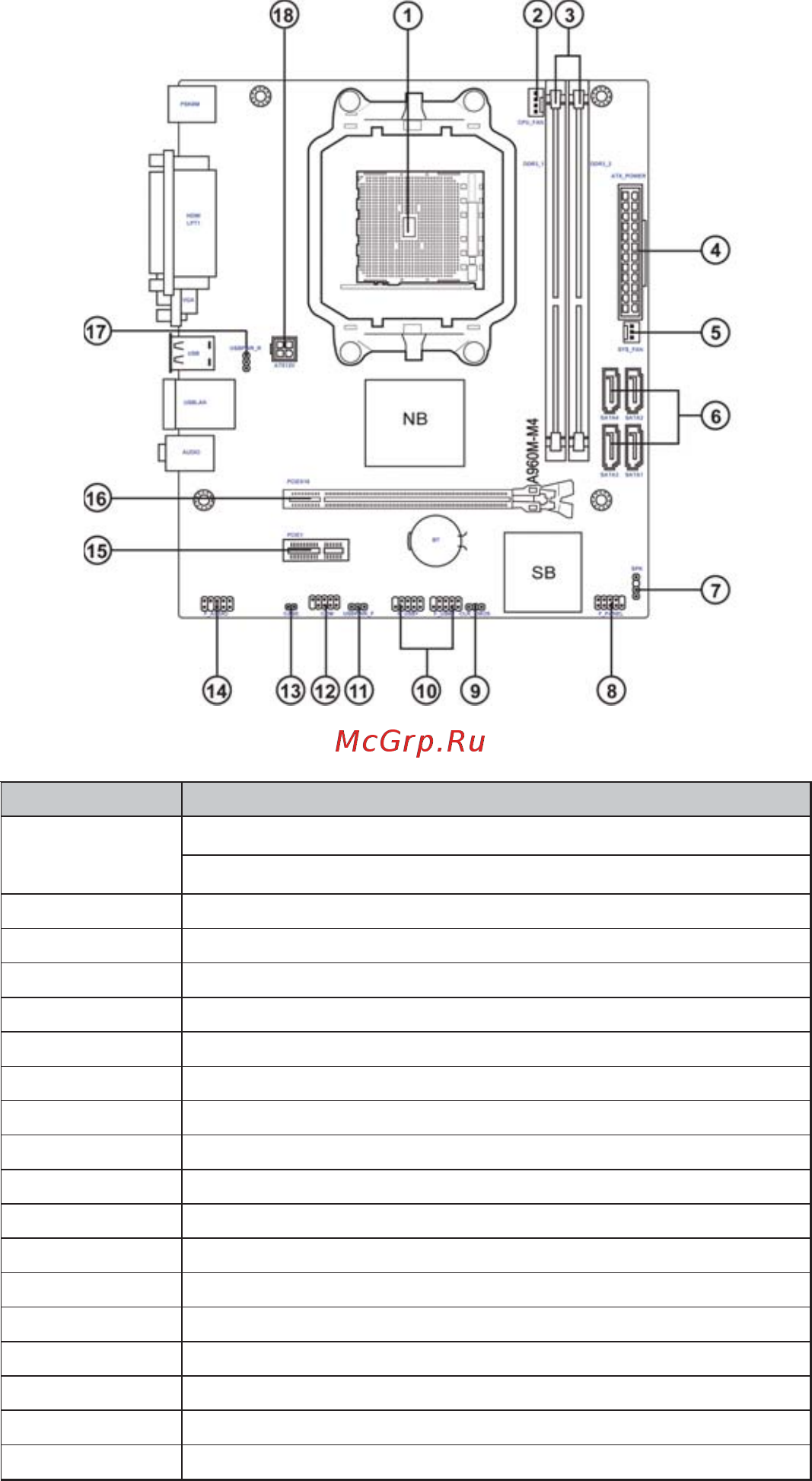

Motherboard Components
Table of Motherboard Components
LABEL COMPONENTS
supports socket AM3/AM3+ for AMD FX
TM
/Phenom
TM
II/
Athlon
TM
II/Sempron
TM
100 series processors
2. CPU_FAN CPU cooling fan connector
3. DDR3_1~2 240-pin DDR3 SDRAM slots
4. ATX_POWER Standard 24-pin ATX power connector
5. SYS_FAN System cooling fan connector
6. SATA1~4 Serial ATA 3Gb/s connectors
7. SPK Speaker header
8. F_PANEL Front panel switch/LED header
9. CLR_CMOS Clear CMOS jumper
10. F_USB1~2 Front panel USB 2.0 headers
11. USBPWR_F Front panel USB power select jumper
12. COM Serial port header
13. CASE Case open header
14. F_AUDIO Front panel audio header
15. PCIEX1 PCI Express x1 slots
16. PCIEX16 PCI Express slot for graphics interface
17. USBPWR_R Rear USB/PS2 power select jumper
18. ATX12V 4-pin +12V power connector
1. CPU Socket
