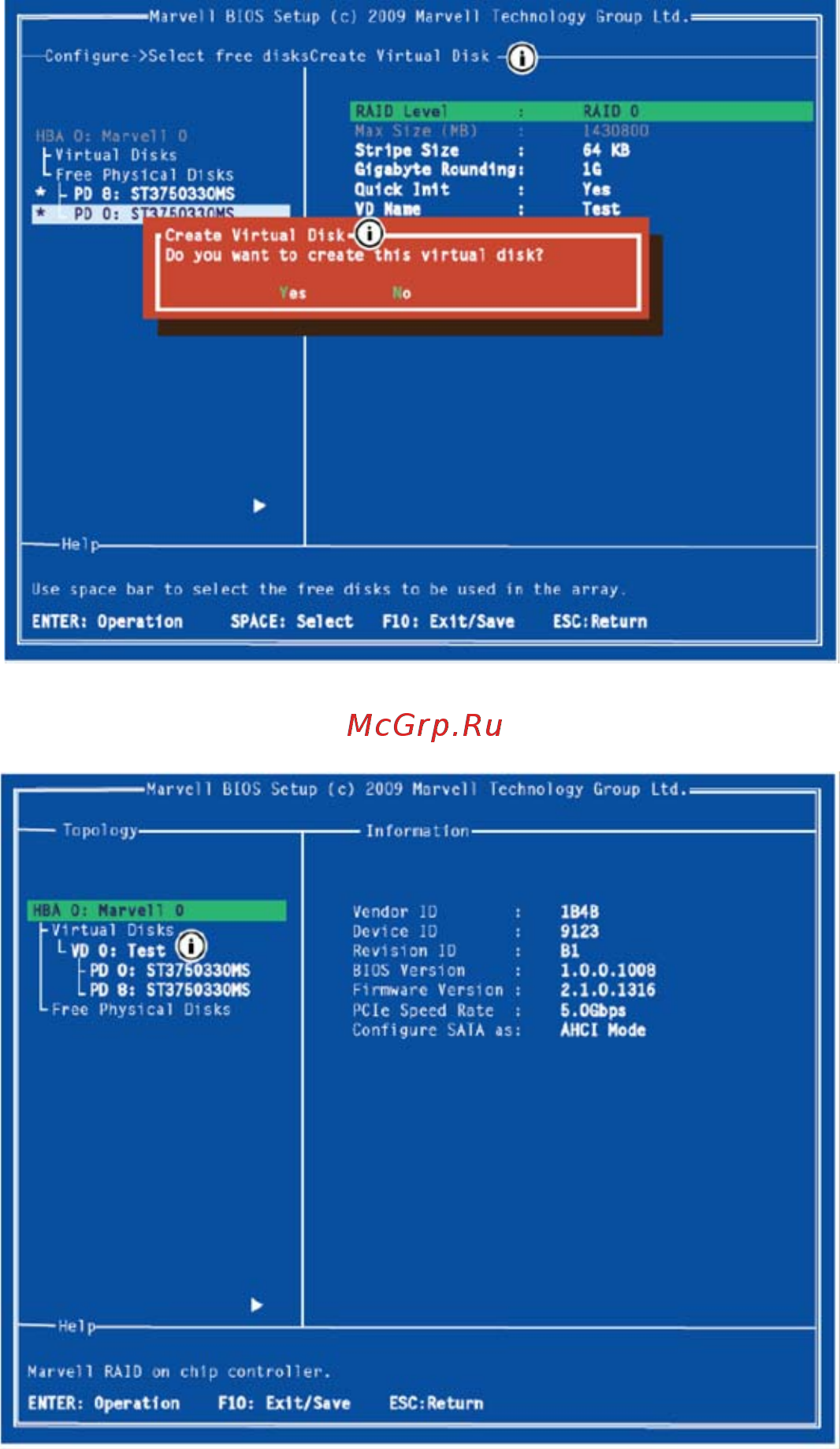

Marvell 88SE9128 SATA 6Gb/s RAID Controller BIOS Setup
9. Scroll to Next and press Enter to create the virtual disks after configuring the
virtual disk. Then press Y to select YES.
The virtual disk is now listed in the Topology pane.
