ECS Elitegroup P67H2-A4 [72/92] Setting up ejiffy

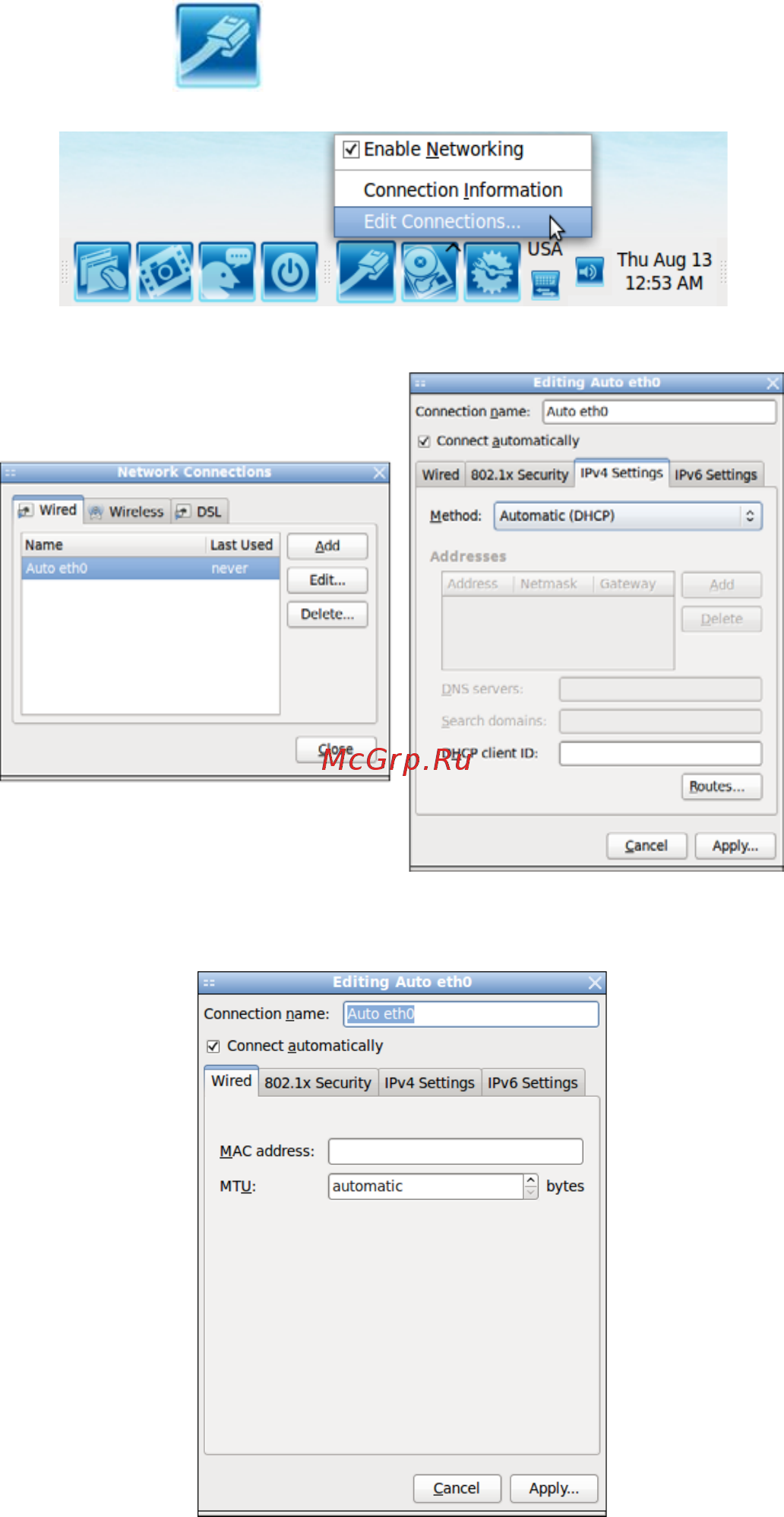

Setting Up eJIFFY

Step1 Select the icon , press the right key of your mouse, then select “Edit

Connection...” item.

Step2 Select the connection you want (eg. Wired) and click “+Add” button.

(1) Wired connection

Types of connections
