ECS Elitegroup Q77H2-M [21/56] Q77h2 m user manual

Chapter 2

Q77H2-M USER MANUAL

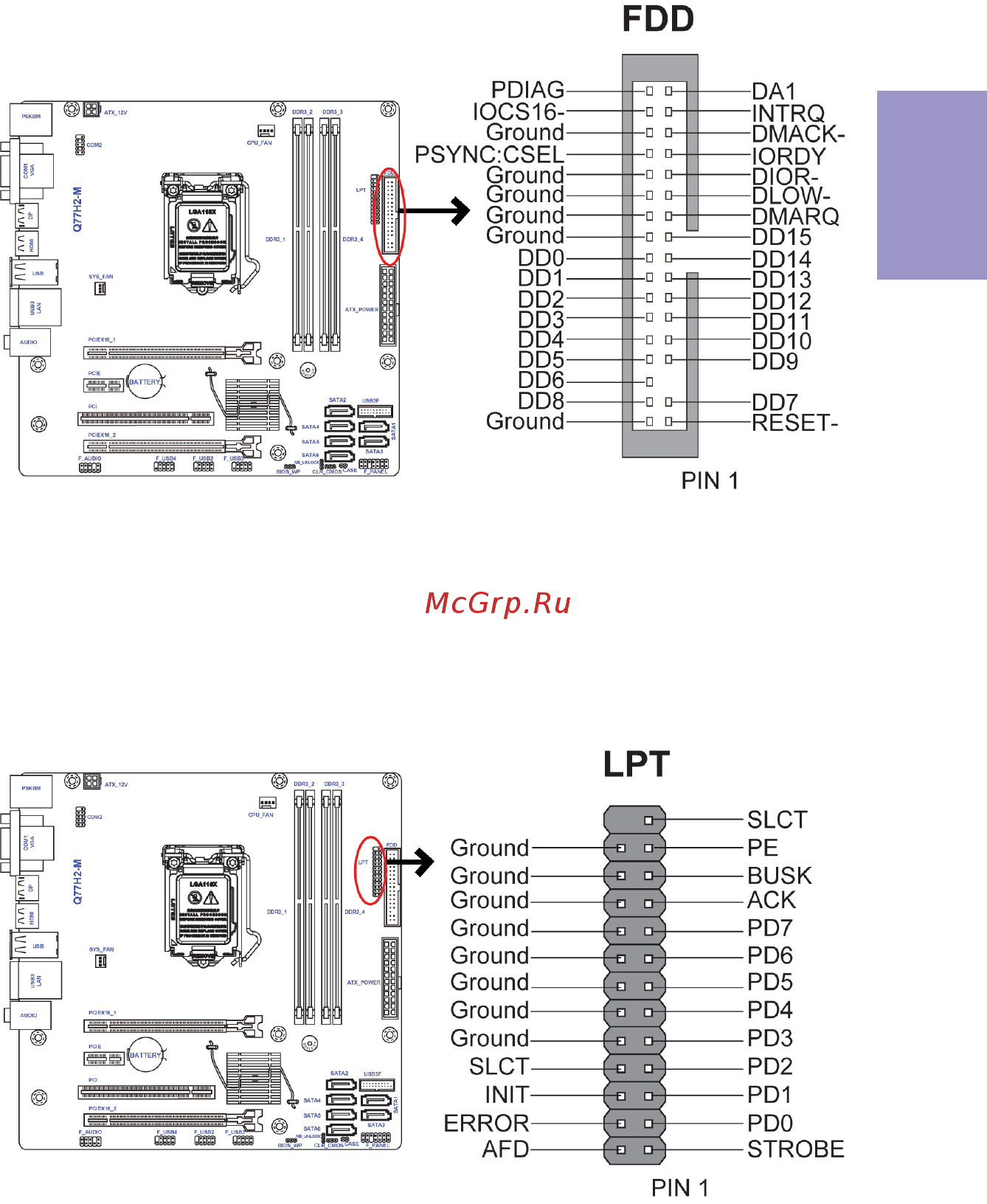

Connect the Floppy disk connector to FDD.

1. FDD: Floppy disk header

This is a header that can be used to connect to the printer, scanner or other devices.

2. LPT: Onboard parallel port header
