Chapter 2

Z77H2-A3D USER MANUAL

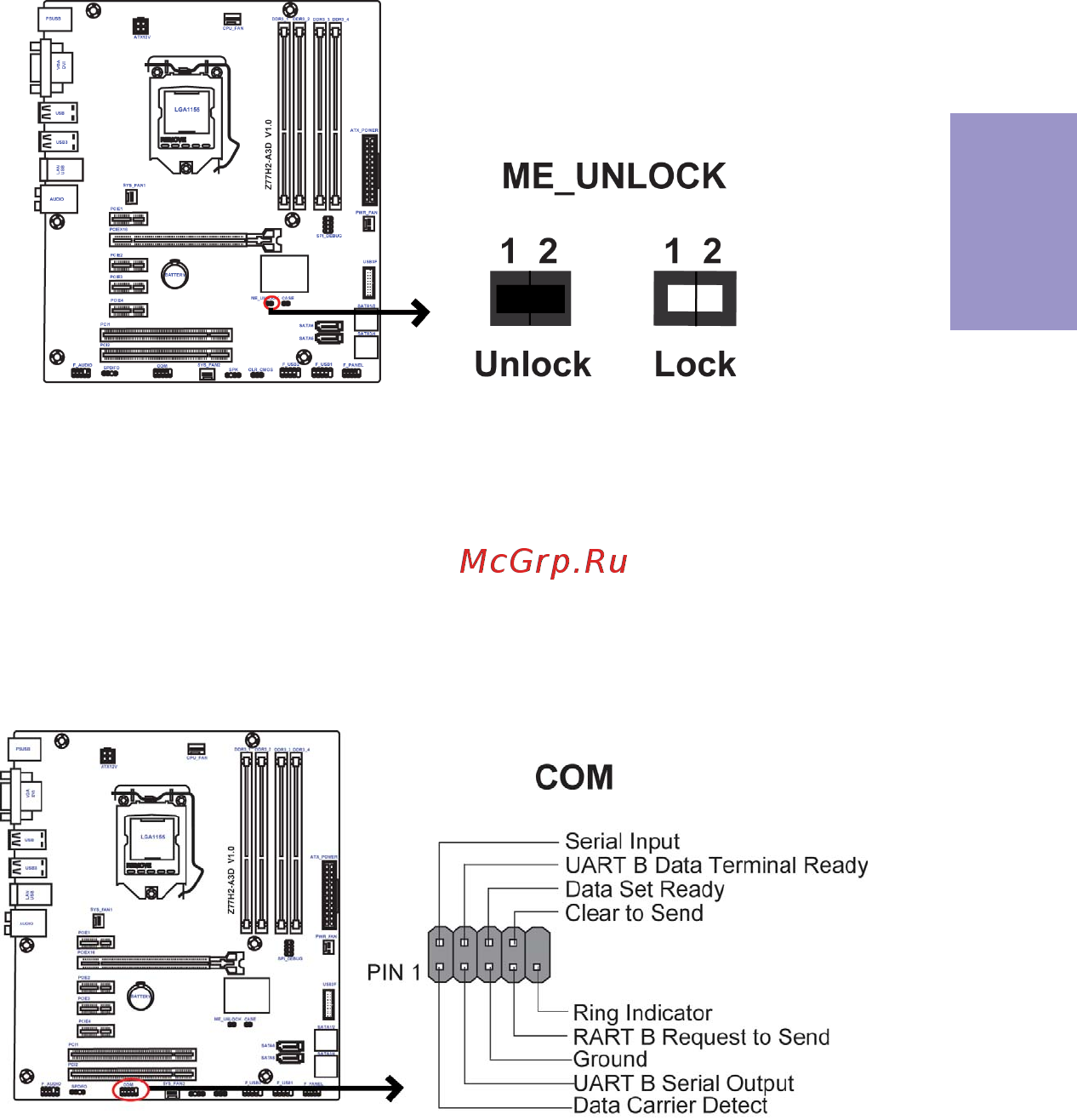

5. ME_UNLOCK: ME Unlock Header

6. COM: Onboard serial port header

Connect a serial port extension bracket to this header to add a serial port to your

system.
