AM.PM sense f7507100, для кухни [3/26] Surface mount bath mixing valve

4 5

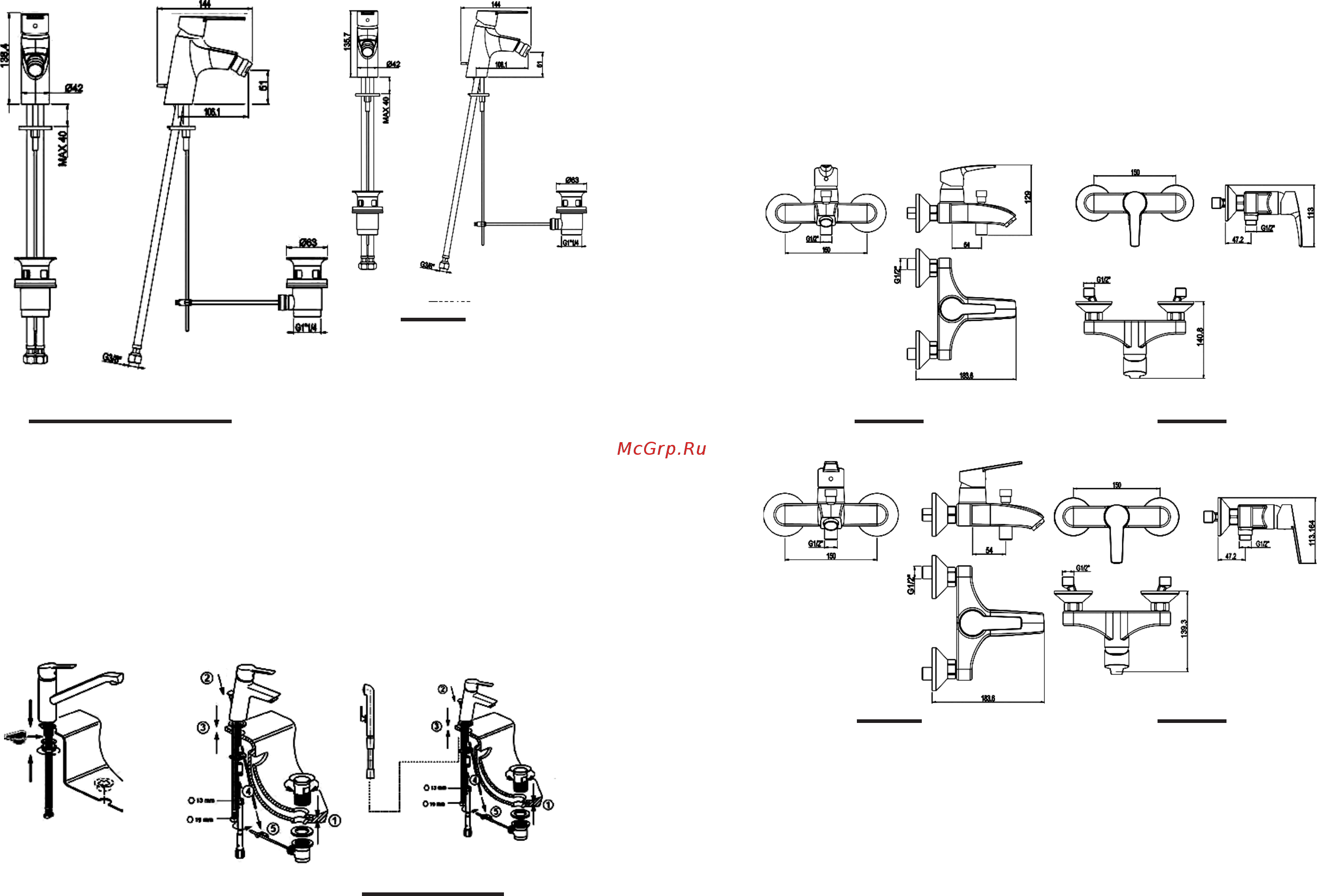

F7802100/F7882100/F7804000

F7883100

F7710000 F7720000

F7810000 F7820000

F7704000/F7804000

Operating pressure range in the water mains is 1.5 – 6.0 atm (120-600kPa). Pressure difference

for hot and cold water can vary + / - 10%. The recommended pressure is 2.5 atm. If pressure

parameters in the water mains differ from the specied value, input pressure increase or input

pressure relief device is required.

To avoid ingress of solids (abrasive particles) in the mixing valve, it is recommended to apply 100-

300 micron lters.

1. Close off hot and cold water supply.

2. Remove (unscrew) the aerator (to avoid clogging the aerator at the rst start-up of water).

3. Fasten the mixing valve on the sanitary ware, using the supplied fasteners.

4. Connect the valve to the water supply system, using the connecting ttings (upset couplings).

Turn on the water supply. In the closed position of the valve, check sealing of all the connections.

If necessary, make extra tightening and sealing of the connections (be sure to close the shut-off

valves on water supply piping).

5. Start the cold and hot water running for a short period of time (to wash off the pipes), then close

the water supply and install (tighten) the aerator.

Operating pressure range in the water mains is 1.5 – 6.0 atm (120-600kPa). Pressure difference

for hot and cold water can vary + / - 10%. If pressure parameters in the water mains differ from the

specied value, input pressure increase or input pressure relief device is required.

To avoid ingress of solids (abrasive particles) in the mixing valve, it is recommended to apply 100-

300 micron lters.

1. Close off hot and cold water supply. Screw in the at-end reducers. Screw in the eccentric

adapters in water supply piping outlets with pre-sealing of the threaded part with insulating material.

Adjust the position of eccentric reducers so that they match and meet the connecting position of the

mixing valve, and the mixing valve is horizontal (distance between the eccentrics – 150mm OC).

Surface mount bath mixing valve
