ASRock j3710-itx [46/56] Usb configuration
![ASRock j3710-itx [46/56] Usb configuration](/views2/1213330/page46/bg2e.png)
41
English
J3710-ITX
J3160-ITX

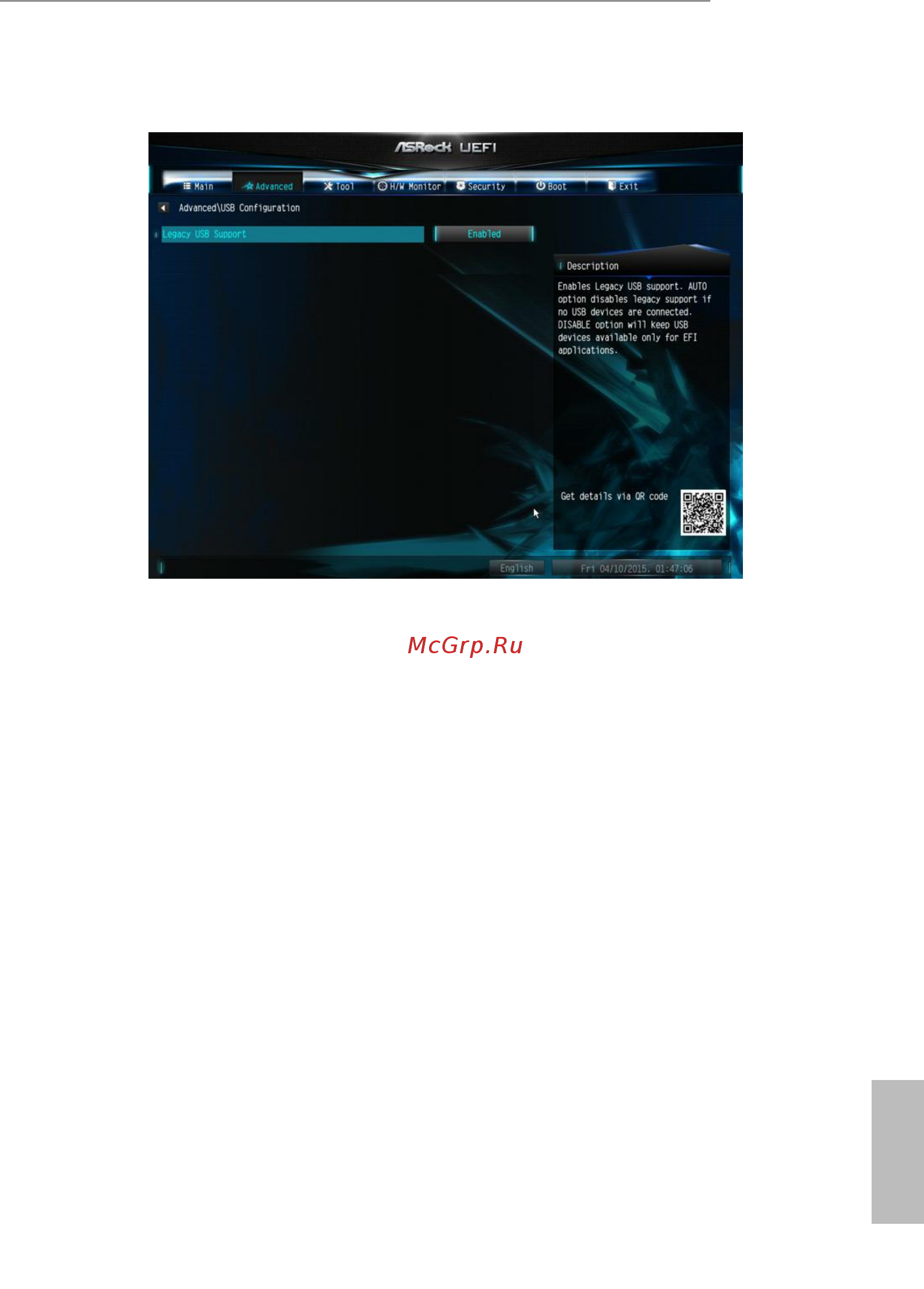

4.3.7 USB Conguration
Legacy USB Support
Enable Legacy USB Support. AUTO option disables legacy support if no USB
devices are connected. DISABLE option will keep USB devices available only for
EFI applications.
