ASRock h110m-dvp [34/73] Setting
![ASRock h110m-dvp [34/73] Setting](/views2/1213380/page34/bg22.png)
29
English
H110M-DVP

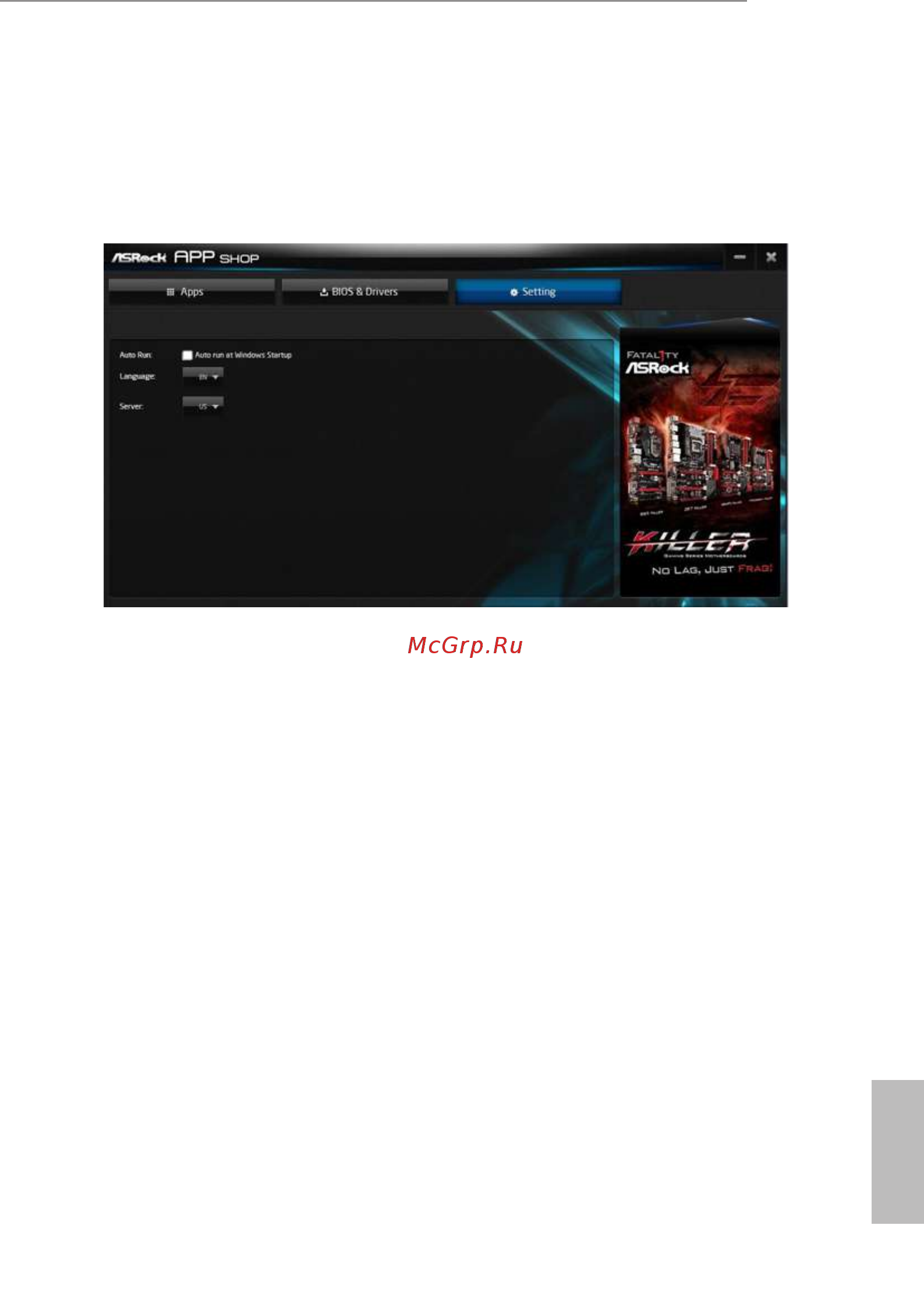

3.2.4 Setting
In the "Setting" page, you can change the language, select the server location, and
determine if you want to automatically run the ASRock Live Update & APP Shop
on Windows startup.
