Features of the Cisco 300 Series Managed

Switch

This section describes the exterior of the managed switches including

ports, LEDs, and connections.

Front Panel Ports

The ports and LEDs are located on the front panel of the switch.

RJ-45 Ethernet Ports—Use these ports to connect network devices, such

as computers, printers, and access points, to the switch.

SFP (if present)—The small form-factor pluggable (SFP) ports are

connection points for modules, so the switch can link to other switches.

These ports are also commonly referred to as miniGigaBit Interface

Converter (miniGBIC) ports. The term SFP will be used in this guide.

• SFP ports are compatible with Cisco modules MGBT1, MGBSX1,

MGBLH1, MGBLX1, MGBBX1, MFELX1, MFEFX1, MFEBX1, and MGBT1, as

well as other brands of modules.

• Some SFP interfaces are shared with one other RJ-45 port, called a

combo port. When the SFP is active, the adjacent RJ-45 port is

disabled. Combo ports are indicated by the presence of a bar on the

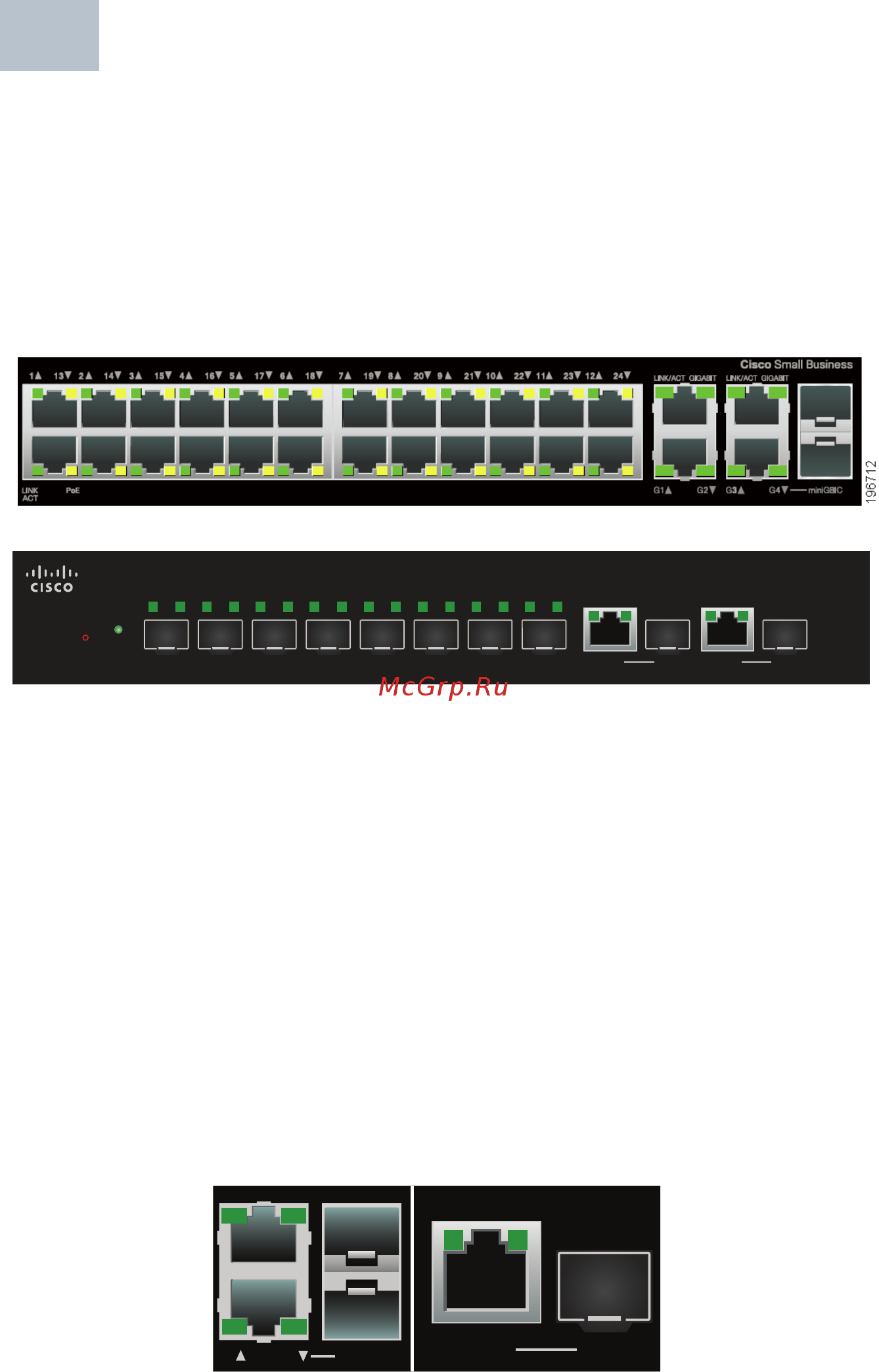

panel that connects them, as shown in the following example:

System

LINK

ACT

GIGABIT

123 45678

Reset

SG300-10SFP 10-Port Gigabit Managed SFP Switch

G9 SFP

LINK/ACT GIGABIT

G10 SFP

LINK/ACT GIGABIT

CISCO Small Business

370013

miniGBICG4G3

LINK/ACT GIGABIT

G9 SFP

LINK/ACT GIGABIT

370014
