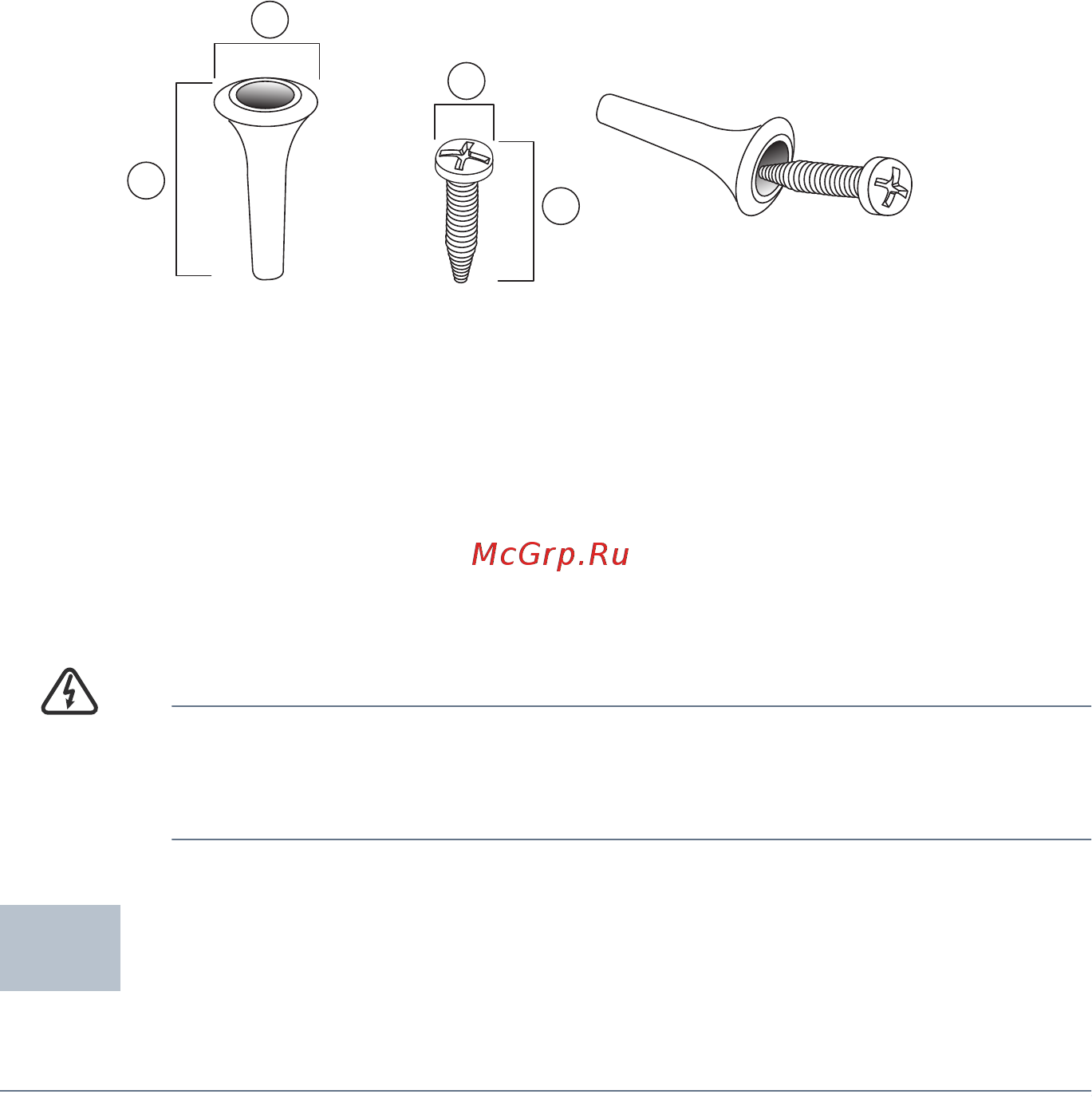

There is a wall-mount kit packed with your switch. The dimensions for the

mount kit are as follows:

Mount the managed switch to the wall by drilling two pilot holes

3.7 inches (95 mm) apart, attaching the provided anchors and screws to

the wall, then sliding the switch into position on the screws.

The switch should have a minimum of 5 inches (130 mm) of clearance on all

sides.

WARNING Insecure mounting may damage the device or cause injury.

Cisco is not responsible for damages incurred by insecure wall-

mounting.

Connecting Network Devices

To connect the switch to the network:

STEP 1 Connect the Ethernet cable to the Ethernet port of a computer,

printer, network storage, or other network device.

STEP 2 Connect the other end of the network Ethernet cable to one of the

numbered managed switch Ethernet ports.

The Ethernet port light turns green when the connection is active.

Refer to Features of the Cisco 300 Series Managed Switch for

details about the different ports and LEDs on each switch.

1 8 mm/0.4 in 2 22.2 mm/0.9 in 3 6.8 mm/0.3 in 4 17.6 mm/0.7 in
