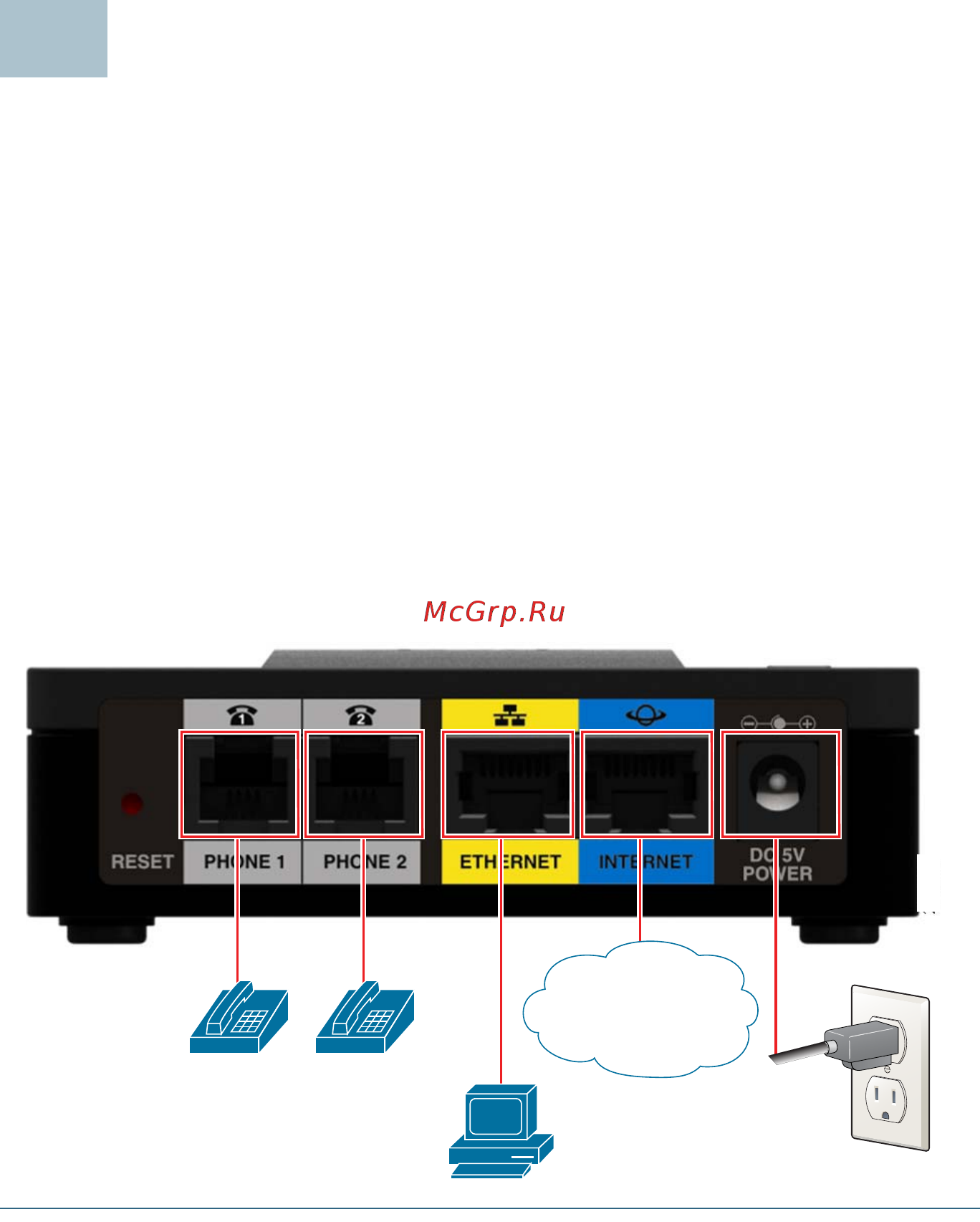

Connecting the Equipment

NOTE For wall-mounting instructions, see Mounting the ATA, page 9.

STEP 1 Connect one end of the provided Ethernet cable to the Internet

(Blue) port. Connect the other end directly to your broadband

network deviceConnect one end of a phone cable to the Phone 1

(Gray) port. Connect the other end to your analog phone or fax

machine.

STEP 2 Connect one end of another phone cable to another analog phone

or fax machine. Connect the other end to the Phone 2 (Gray) port.

STEP 3 SPA122 Only: Optionally, connect one end of an Ethernet network

cable to the ETHERNET (Yellow) port of the ATA. Connect the other

end to a device on your network, such as a computer.

STEP 4 Connect the provided power adapter to the Power port.
