Wall Mounting

NOTE The switch should be mounted so that the ports face up or down.

Do not mount the switch with the ports to the side, as this causes strain

on the connections.

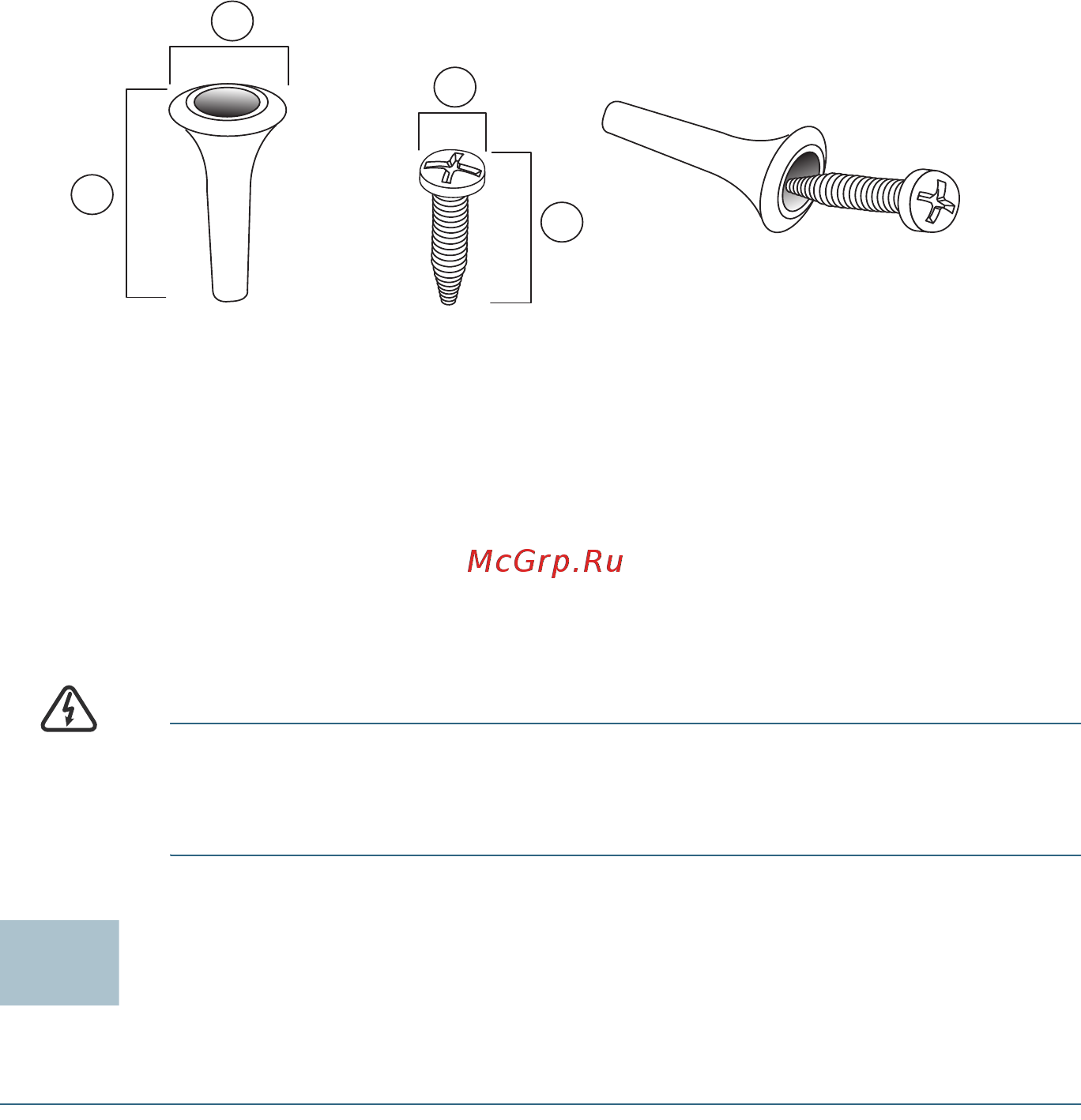

There is a wall-mount kit packed with your switch. The dimensions for the

mount kit are as follows:

Mount the smart switch to the wall by drilling two pilot holes 95 mm (3.7

inches) apart, attaching the provided anchors and screws to the wall, then

sliding the switch into position on the screws.

The switch must have a minimum of 5 inches (130 mm) of clearance on all

sides.

WARNING Insecure mounting might damage the device or cause injury.

Cisco is not responsible for damages incurred by insecure wall-

mounting.

Connecting Network Devices

To connect the smart switch to the network:

STEP 1 Connect the Ethernet cable to the Ethernet port of a computer,

printer, network storage, or other network device.

STEP 2 Connect the other end of the Ethernet cable to one of the

numbered smart switch Ethernet ports.

The LED of the port lights if the device connected is active. Refer to

Features of the Cisco 200 Series 8-Port Smart Switches for

details about the different ports and LEDs on each switch.

1 0.4 in/8 mm 2 0.9 in/22.2 mm 3 0.3 in/6.8 mm 4 0.7 in/17.6 mm
