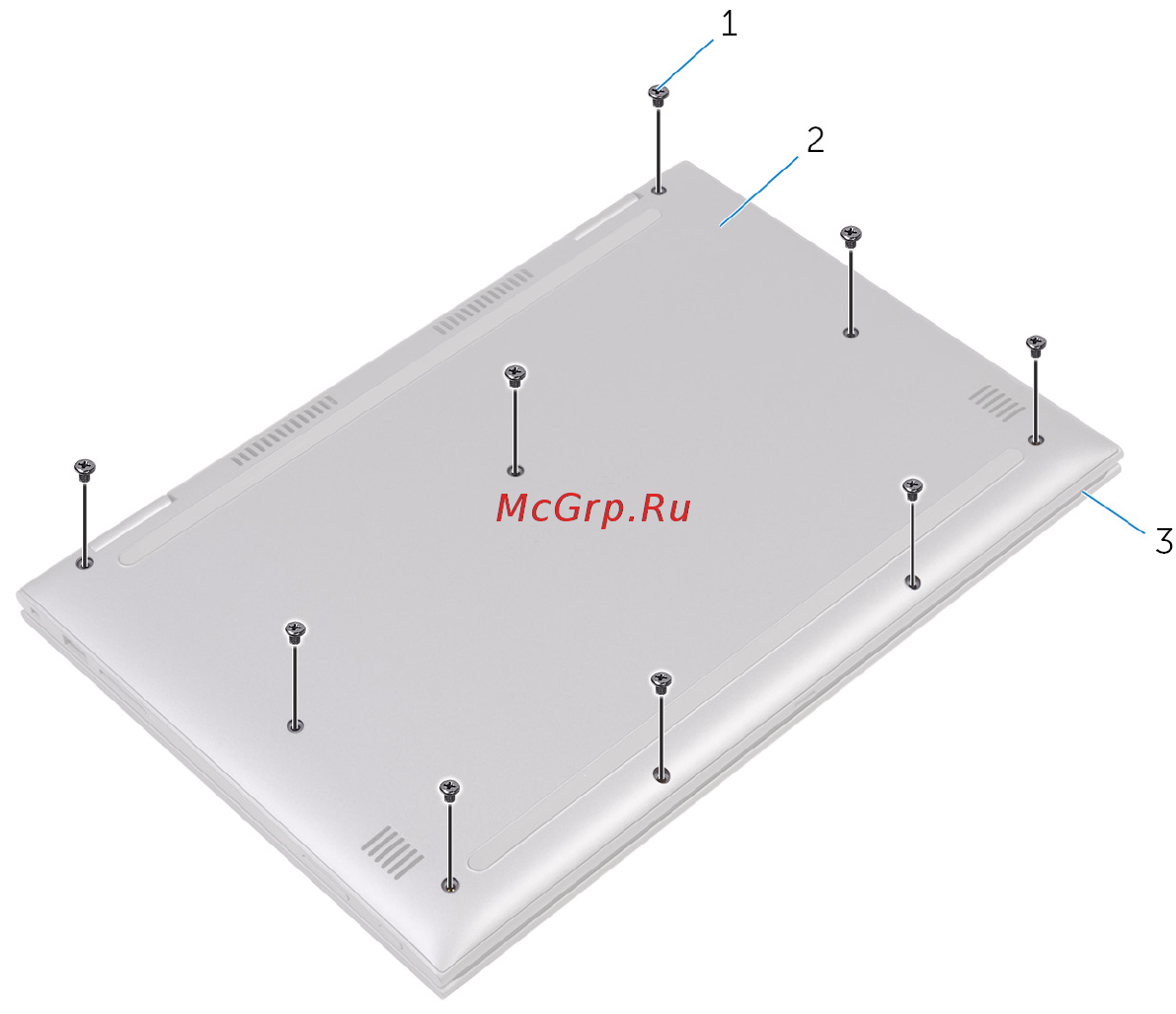

2 Remove the screws that secure the base cover to the palm-rest
assembly.
1 screws (9) 2 base cover
3 palm-rest assembly
17
