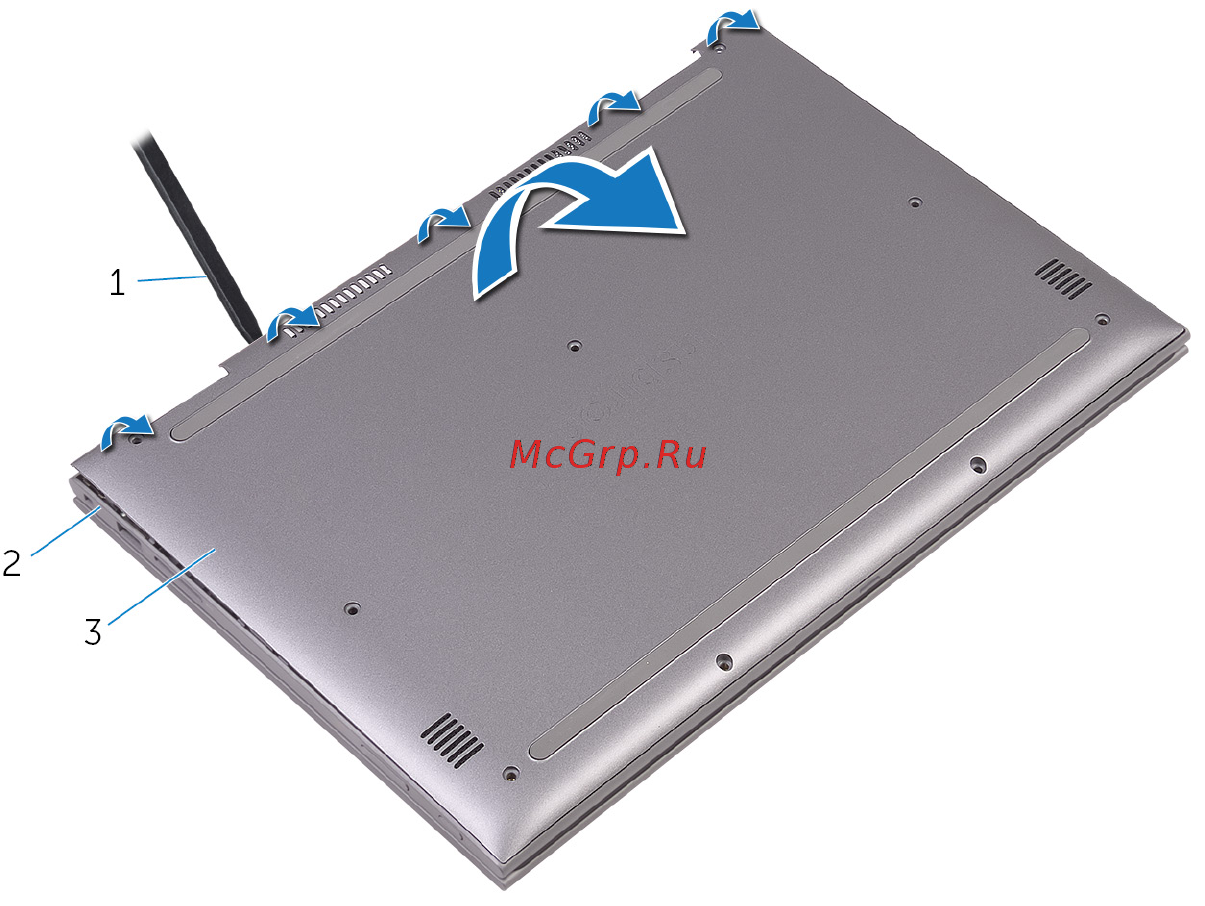

3 Using a plastic scribe, release the tabs that secure the base cover to the
palm-rest assembly and remove the base cover off the palm-rest
assembly.
1 plastic scribe 2 palm-rest assembly
3 base cover
