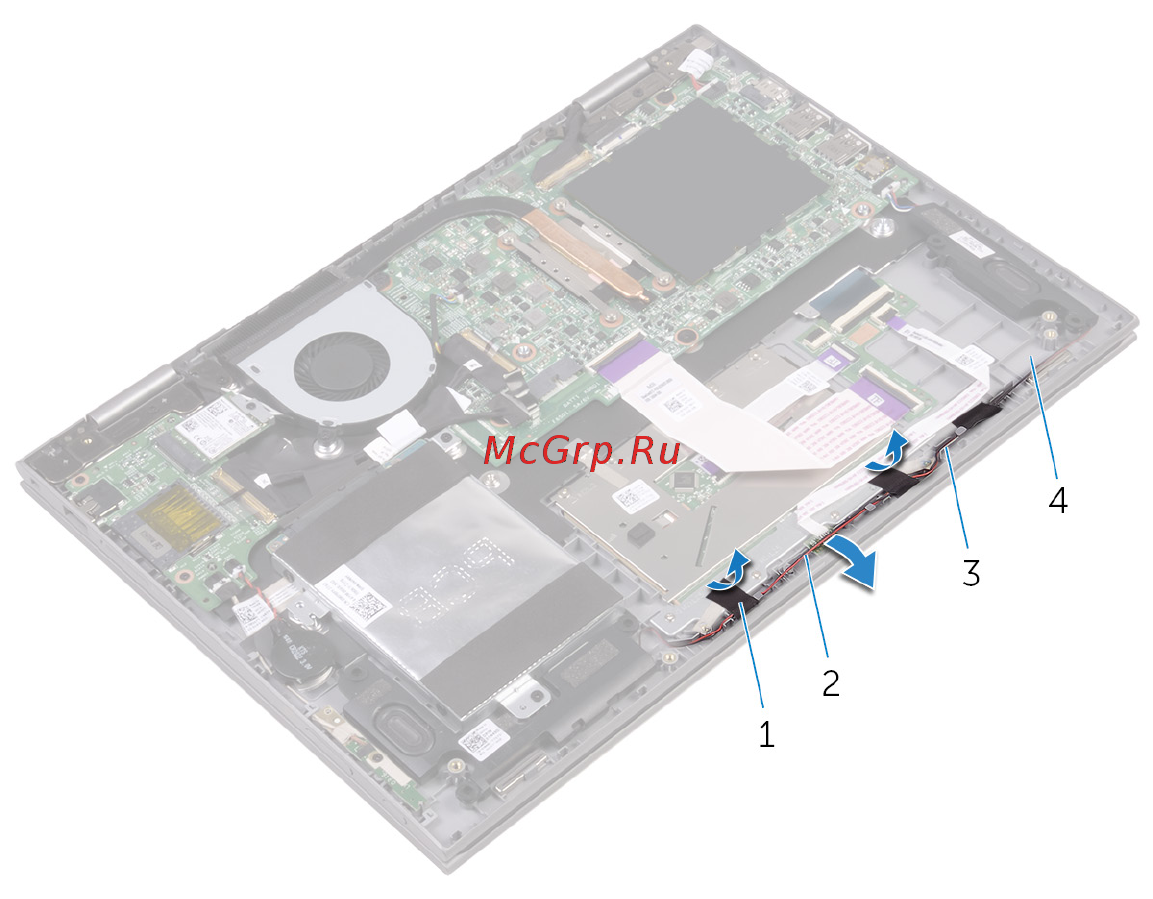

3 Lift the speaker cable off the status-light board.
1 tape (2) 2 speaker cable
3 routing guides 4 palm-rest assembly
4 Open the latch and disconnect the status-light board-cable from the
keyboard daughter-board.
56
