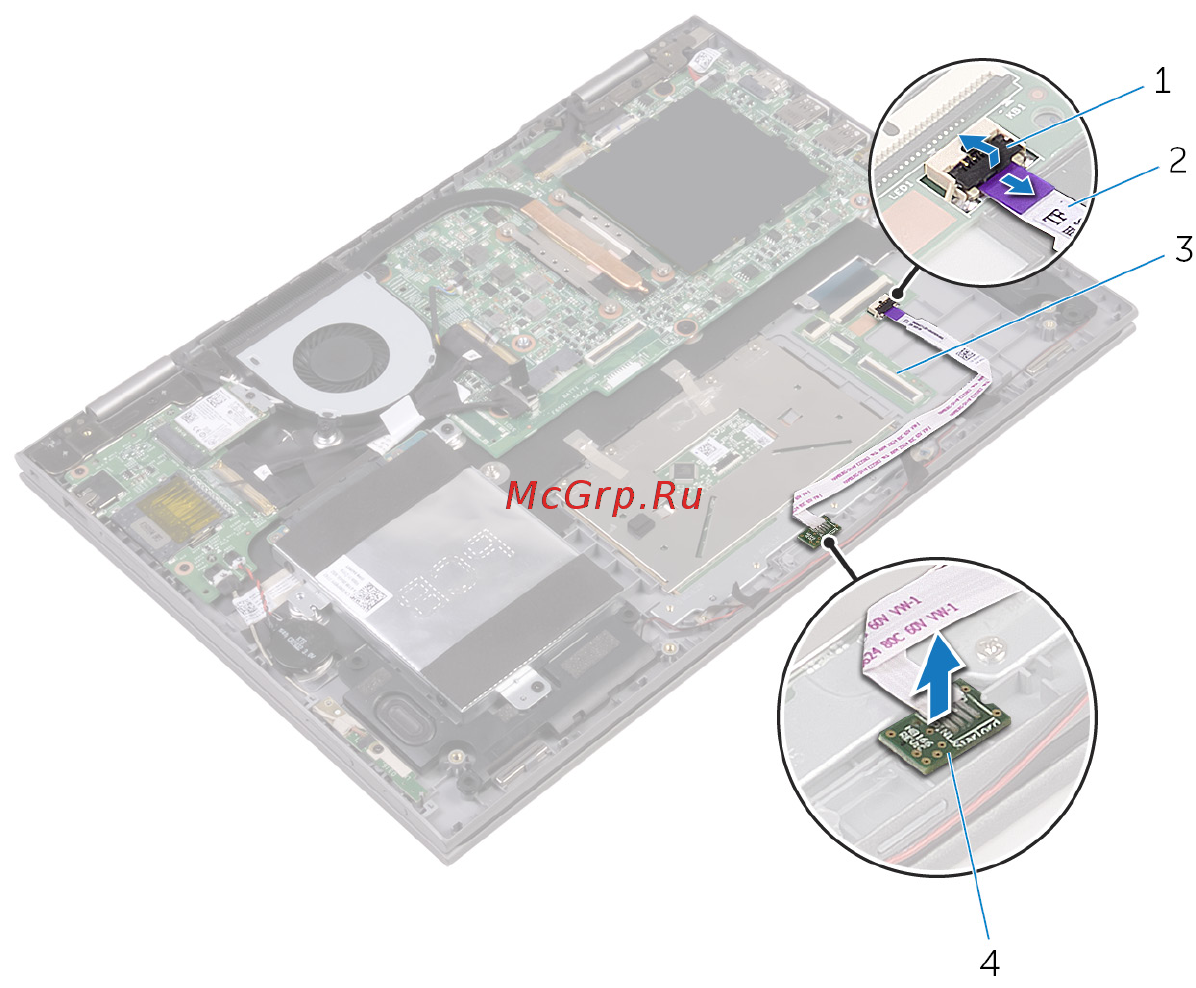

5 Lift the status-light board off the palm-rest assembly.
1 latch 2 status-light board-cable
3 keyboard daughter-board 4 status-light board
57
