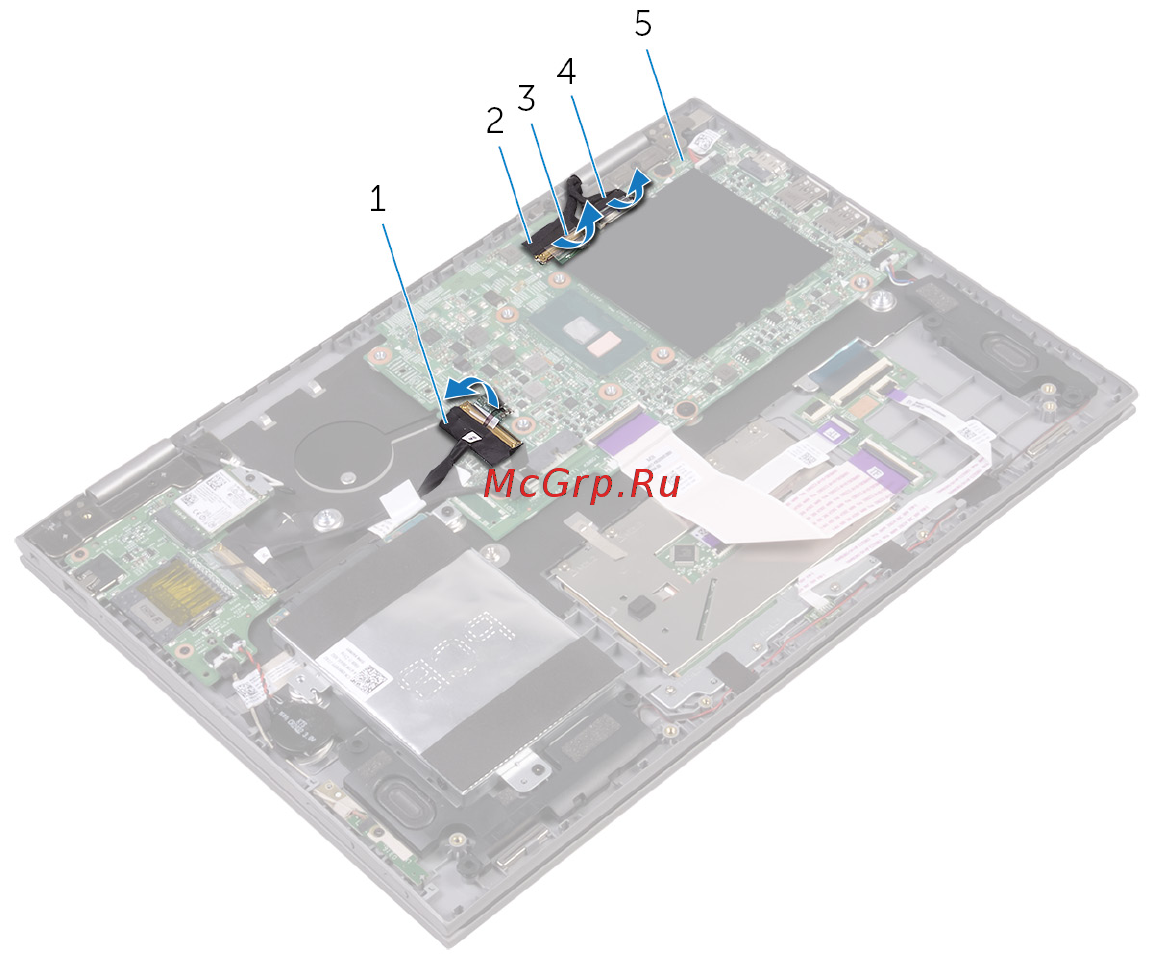

2 Peel off the tape that secures the I/O-board cable to the system board.
1 I/O-board cable 2 display cable
3 tape (3) 4 touch-screen cable
5 system board
3 Open the latches to disconnect the display cable and the touch-screen
board-cable from the system board.
4 Open the latch to disconnect the I/O-board cable from the system
board.
5 Disconnect the power-adapter cable and the speaker cable from the
system board.
6 Open the latch and disconnect the keyboard daughter-board cable from
the system board.
76
