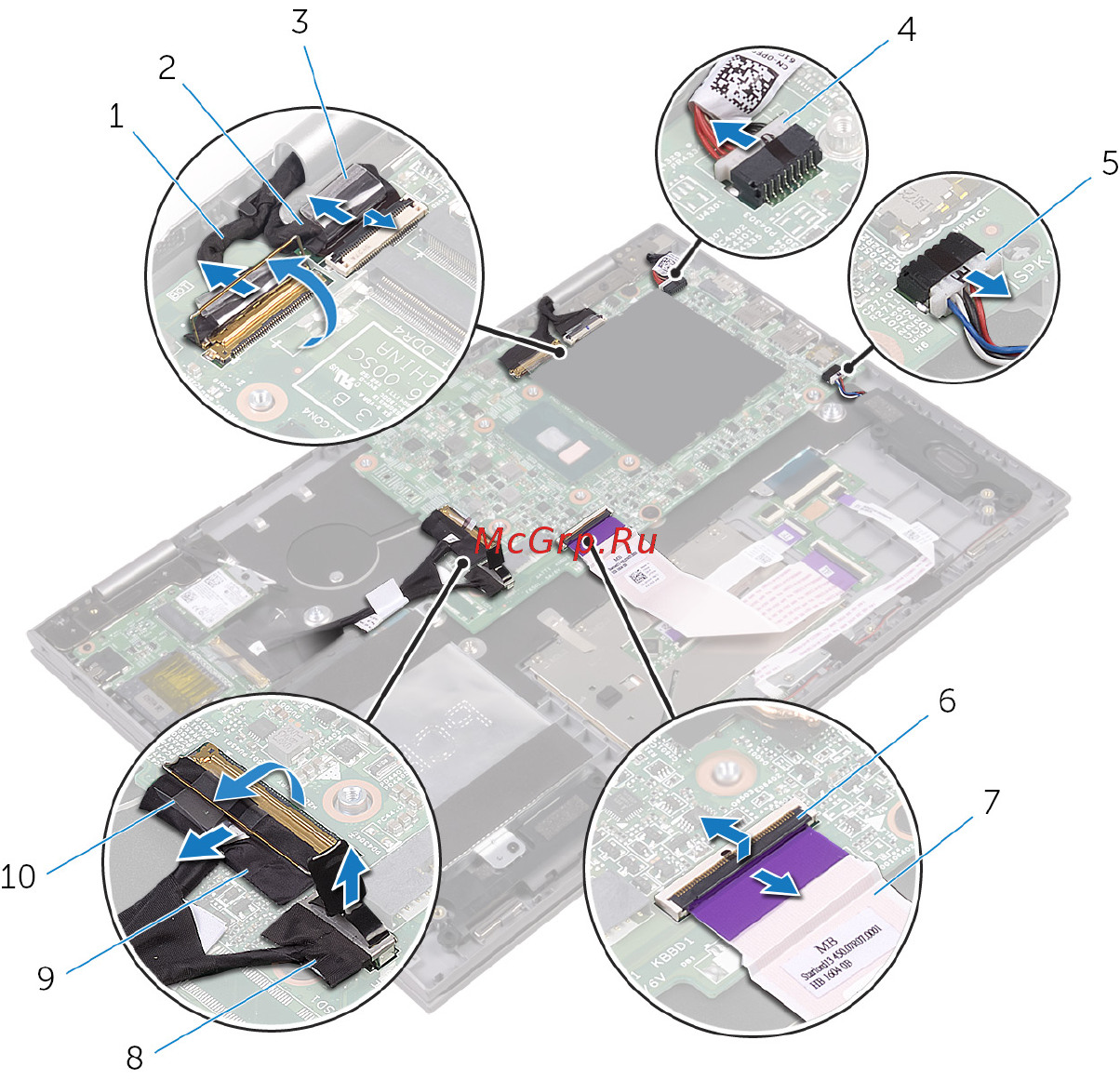

7 Disconnect the hard-drive cable from the system board.
1 display cable 2 touch-screen cable
3 tape 4 power adapter port-cable
5 speaker cable 6 latch
7 keyboard daughter-board
cable
8 hard-drive cable
9 I/O-board cable 10 tape
8 Remove the screws that secure the system board to the palm-rest
assembly.
77
