HP e-msm422, j9359b [6/24] Status lights
![HP e-msm422, j9359b [6/24] Status lights](/views2/1219407/page6/bg6.png)

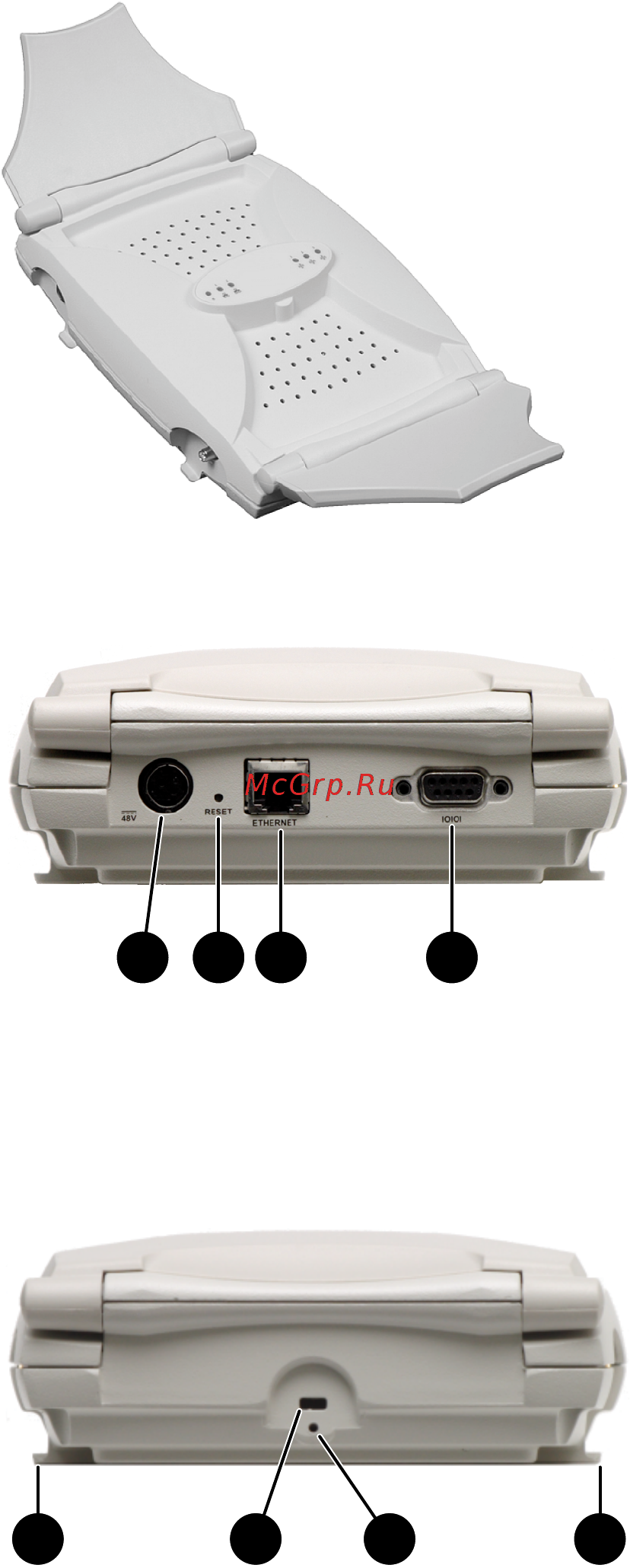

Flaps open
1 2 3 4
Top view
3: Ethernet port1: Power connector
4: Console port2: Reset button
1 1
2
3
Bottom view
1: Lock tab
2: Feet
3: Retention screw hole
Status lights
The status lights provide different information depending on whether the AP is operating in
autonomous mode or controlled mode. For more information on these modes, see “About controlled
mode and autonomous mode” (page 12).
6 Preparing for installation
