Assembly see page 31
Special accessories (order as an
extra)
seal #98996000
Spare parts (see page 35)
Cleaning
see enclosed brochure.
Operation (see page 36)
• Due to the design of the Bidette fittings,
a small amount of water will leak at the
outlet of the fitting when the hand shower
is running.
• Hansgrohe recommends not to use as
drinking water the first half liter of water
drawn in the morning or after a pro-
longed period of non-use.
Flow diagram
(see page 34)
Rate of flow mixer
Rate of flow handshower
Dimensions (see page 34)
Adjustment (see page 33)
To adjust the hot water limiter. Using a hot
water limiter in combination with a continu-
ous flow water heater is not recommended.
Do not use silicone containing acetic acid!

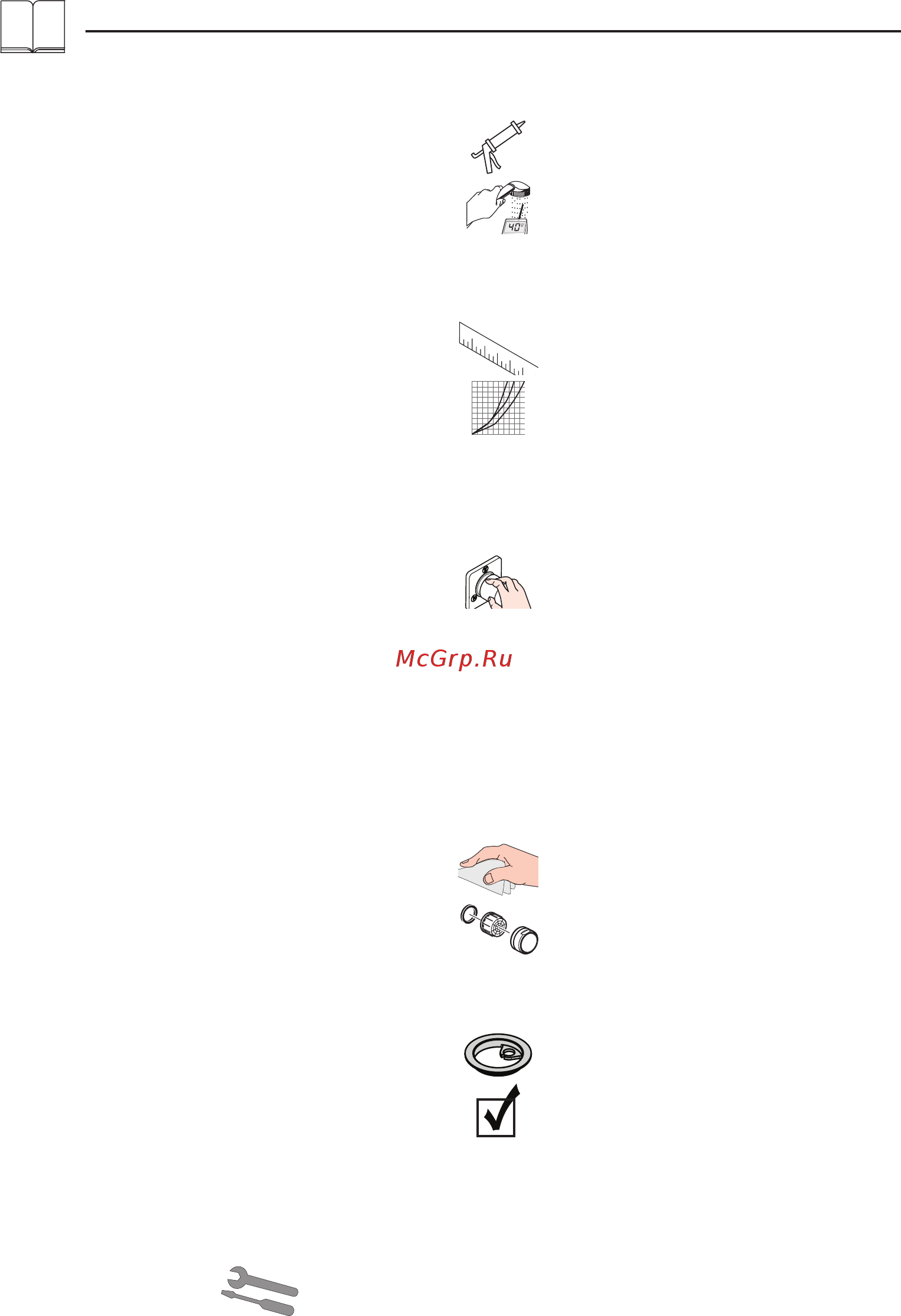

Symbol description
Safety Notes
Gloves should be worn during installation to prevent
crushing and cutting injuries.
The shower system may only be used for bathing,
hygienic and body cleaning purposes.
The hot and cold supplies must be of equal pres-
sures.
Installation Instructions
• Prior to installation, inspect the product for transport
damages. After it has been installed, no transport or
surface damage will be honoured.
• The pipes and the fixture must be installed, flushed
and tested as per the applicable standards.
• The plumbing codes applicable in the respective
countries must be oberserved.
• The mixer can not used together with a continuous
flow water heater.
Technical Data
Operating pressure: max. 1 MPa
Recommended operating pressure: 0,1 - 0,5 MPa
Test pressure: 1,6 MPa
(1 MPa = 10 bar = 147 PSI)
Hot water temperature: max. 80°C
Recommended hot water temp.: 65°C
Thermal disinfection: max. 70°C / 4 min
Safety against backflow
The product is exclusively designed for drinking water!
English
4
Test certificate (see page 36)
