Electrical instant water heater

CAUTION!

Proper grounding is important for minimization of electrical shock

and re hazards.

The water heater is designed for connection to the electrical mains with single-phase voltage of

220V. Before connection, make sure that parameters of the electrical mains at the connection

point meet the parameters indicated on the name plate with specications of the appliance.

During installation of the water heater, observe the eective electrical safety rules. The electrical

socket shall be designed for rated current not less than 10A. The electrical cable shall have

conductor area not less than 3x1.5 mm2 (for copper).

OPERATION

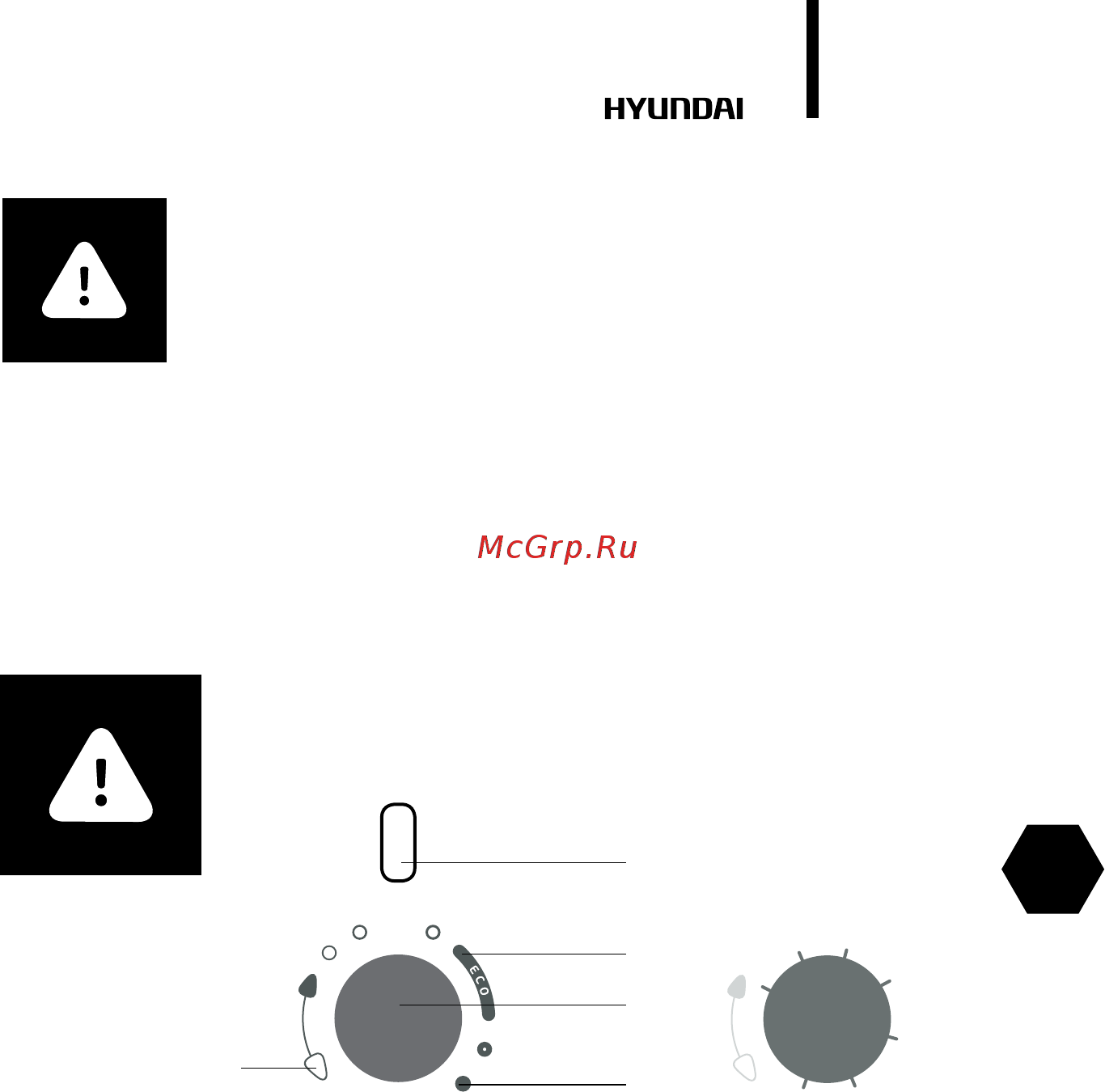

1 - Heating indicator

2 - ECO position

3 - Thermostat knob

4 - Maximum water heating temperature position

5 - O position

Approximate

temperature scale

CAUTION!

Refer to «Water heater safe operation and installation rules»

Open one of the demountable valves at outlet from the water heater and open the cold water

inlet valve. When water starts to freely ow out from the demountable valve, close it and insert

the plug of the power cord to the socket. When the water heater is used, the cold water inlet

valve shall be in open position.

The water heating temperature in the water heater can be set in the range from +35°C to +75°C.

To increase the water heating temperature, rotate the thermostat knob clockwise. To decrease

the water heating temperature, rotate the thermostat knob counter-clockwise.

The water heater automatically maintains the set water temperature. When water temperature

in the water heater reaches the user set value, heating will be automatically stopped and the

heating indicator will extinguish. When water temperature in the water heater decreases below

the user set value, heating will be automatically activated and the heating indicator will light up

with bright pink color.

0°C

75°C

35°C

61°C

68°C

45°C

55°C
