IBM expsell s2 42u standard rack, 16r1442 [51/84] Under popular links click parts documents lookup 4 from the product family menu select rack storage enclosures and click continue

S2 42u dynamic standard rack s2 42u dynamic expansion rack 1

S2 42u dynamic standard rack s2 42u dynamic expansion rack 3

Copyright international business machines corporation 2009 us government users restricted rights use duplication or disclosure restricted by gsa adp schedule contract with ibm corp 4

First edition march 2009 4

Note before using this information and the product it supports read the general information inappendix b ibm statement of limited warranty z125 4753 10 08 2008 on page 41 and appendix c notices on page 59 4

Appendix a getting help and technical assistance 39 5

Appendix b ibm statement of limited warranty z125 4753 10 08 2008 41 5

Appendix c notices 59 5

Attaching racks in a suite 21 5

Before you call 39 5

Cable routing brackets 30 5

Chapter 1 introduction 1 5

Chapter 2 installing a rack cabinet 5 5

Chapter 3 installing optional devices 23 5

Chapter 4 managing cables 29 5

Chapter 5 moving a rack cabinet 33 5

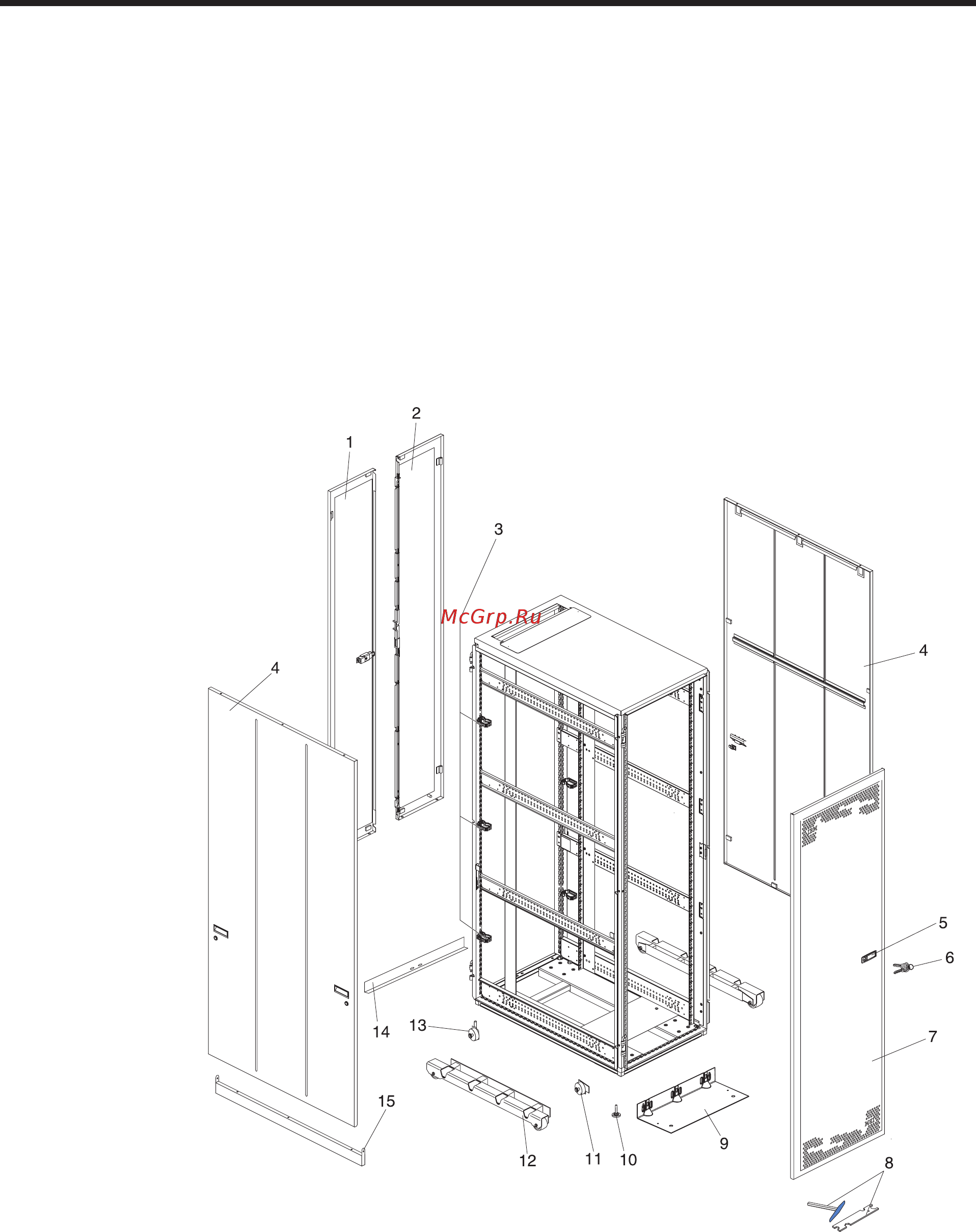

Chapter 6 parts listing s2 42u dynamic standard and dynamic expansion racks 37 5

Contents 5

Copyright ibm corp 2009 5

Getting help and information from the world wide web 39 5

Hardware and software requirements 2 5

Hardware service and support 40 5

Ibm taiwan product service 40 5

Important notes 60 5

Installation guidelines 23 5

Installing and removing the lower side panels 15 5

Installing cage nuts 26 5

Installing devices on the rack mounting flanges 26 5

Installing devices vertically in the rack cabinet 27 5

Installing the front stabilizer and the side stabilizer brackets 10 5

Installing threaded rails 26 5

Notices and statements in this document 3 5

Part 1 general terms 41 5

Part 2 country unique terms 45 5

Part 3 warranty information 57 5

Removing and installing a front door 16 5

Removing and installing rack cabinet doors 16 5

Removing and installing rear doors 17 5

Removing and installing the outriggers side stabilizers 8 5

Removing and installing the upper side panels 13 5

Reversing a front door 18 5

Safety v 5

Size and weight specifications 7 5

Software service and support 40 5

The ibm documentation cd 1 5

Trademarks 59 5

Using the cable access bar on the bottom of the rack cabinet 31 5

Using the cable access opening in the top of the rack cabinet 32 5

Using the documentation 39 5

Using the documentation browser 2 5

Australia and new zealand class a statement 64 6

Avis de conformité à la réglementation d industrie canada 64 6

Battery return program 62 6

Chinese class a warning statement 65 6

Electronic emission notices 63 6

European union emc directive conformance statement 64 6

Federal communications commission fcc statement 63 6

Index 67 6

Industry canada class a emission compliance statement 64 6

Japanese voluntary control council for interference vcci statement 65 6

Korean class a warning statement 65 6

Product recycling and disposal 61 6

S2 42u dynamic standard and expansion racks installation guide 6

Taiwanese class a warning statement 65 6

United kingdom telecommunications safety requirement 64 6

Antes de instalar este produto leia as informações de segurança 7

Antes de instalar este produto leia as informações sobre segurança 7

Avant d installer ce produit lisez les consignes de sécurité 7

Before installing this product read the safety information 7

Ennen kuin asennat tämän tuotteen lue turvaohjeet kohdasta safety information 7

Lees voordat u dit product installeert eerst de veiligheidsvoorschriften 7

Les sikkerhetsinformasjonen safety information før du installerer dette produktet 7

Læs sikkerhedsforskrifterne før du installerer dette produkt 7

Pred instalací tohoto produktu si prectete prírucku bezpecnostních instrukcí 7

Prima di installare questo prodotto leggere le informazioni sulla sicurezza 7

Safety 7

Vor der installation dieses produkts die sicherheitshinweise lesen 7

Antes de instalar este producto lea la información de seguridad 8

Be sure to read all caution and danger statements in this document before you perform the procedures read any additional safety information that comes with the server or optional device before you install the device 8

Caution to ensure safety all configurations of the rack cabinet must be certified by a nationally recognized testing laboratory in order to verify compliance with country specific safety regulations this process ensures that the end product remains safe for the operator and service personnel under normal and forseeable misuse conditions 8

Danger 8

For example if a caution statement is labeled statement 1 translations for that caution statement are in the ibm rack safety information document under statement 1 8

Important each caution and danger statement in this document is labeled with a number this number is used to cross reference an english language caution or danger statement with translated versions of the caution or danger statement in the ibm rack safety information document 8

Läs säkerhetsinformationen innan du installerar den här produkten 8

S2 42u dynamic standard and expansion racks installation guide 8

Statement 1 8

Statement 2 8

V always lower the leveling pads on the rack cabinet v always install stabilizer brackets on the rack cabinet v always install servers and optional devices starting from the bottom of the rack cabinet v always install the heaviest devices in the bottom of the rack cabinet 8

Attach power cords to outlet 9

Attach signal cables to connectors 9

Danger 9

Electrical current from power telephone and communication cables is hazardous 9

First attach all cables to devices 9

First remove power cords from outlet 9

Remove all cables from devices 9

Remove signal cables from connectors 9

Safety 9

Statement 4 9

To avoid a shock hazard 9

To connect to disconnect 9

Turn device on 9

Turn everything off 9

V connect all power cords to a properly wired and grounded electrical outlet v connect to properly wired outlets any equipment that will be attached to this product v when possible use one hand only to connect or disconnect signal cables 9

V do not connect or disconnect any cables or perform installation maintenance or reconfiguration of this product during an electrical storm 9

V never turn on any equipment when there is evidence of fire water or structural damage v disconnect the attached power cords telecommunications systems networks and modems before you open the device covers unless instructed otherwise in the installation and configuration procedures v connect and disconnect cables as described in the following table when installing moving or opening covers on this product or attached devices 9

18 kg 39 lb 32 kg 70 lb 55 kg 121 lb 10

Caution do not place any object on top of a rack mounted device unless that rack mounted device is intended for use as a shelf 10

Caution use safe practices when lifting 10

Danger 10

S2 42u dynamic standard and expansion racks installation guide 10

Statement 5 10

Statement 6 10

Statement 8 10

V plug power cords from devices in the rack cabinet into electrical outlets that are located near the rack cabinet and are easily accessible v each rack cabinet might have more than one power cord be sure to disconnect all power cords in the rack cabinet before servicing any device in the rack cabinet v install an emergency power off switch if more than one power device power distribution unit or uninterruptible power supply is installed in the same rack cabinet v connect all devices installed in a rack cabinet to power devices installed in the same rack cabinet do not plug a power cord from a device installed in one rack cabinet into a power device installed in a different rack cabinet 10

Caution removing components from the upper positions in the rack cabinet improves rack stability during relocation follow these general guidelines whenever you relocate a populated rack cabinet within a room or building v reduce the weight of the rack cabinet by removing equipment starting at the top of the rack cabinet when possible restore the rack cabinet to the configuration of the rack cabinet as you received it if this configuration is not known you must do the following remove all devices in the 22u position and above 11

Ensure that the heaviest devices are installed in the bottom of the rack cabinet ensure that there are no empty u levels between devices installed in the rack cabinet below the 22u level 11

If a long distance relocation is required restore the rack cabinet to the configuration of the rack cabinet as you received it pack the rack cabinet in the original packaging material or equivalent also lower the leveling pads to raise the casters off of the pallet and strap the rack cabinet to the pallet 11

Lower the four leveling pads install stabilizer brackets on the rack cabinet if you removed any devices from the rack cabinet repopulate the rack cabinet from the lowest position to the highest position 11

Safety 11

Statement 11 11

V if the rack cabinet you are relocating is part of a suite of rack cabinets detach the rack cabinet from the suite v inspect the route that you plan to take to eliminate potential hazards v verify that the route that you choose can support the weight of the loaded rack cabinet refer to the documentation that comes with your rack cabinet for the weight of a loaded rack cabinet v verify that all door openings are at least 760 x 2083 mm 30 x 82 in v ensure that all devices shelves drawers doors and cables are secure v ensure that the four leveling pads are raised to their highest position v ensure that there is no stabilizer bracket installed on the rack cabinet v do not use a ramp inclined at more than ten degrees v once the rack cabinet is in the new location do the following 11

Caution see the instructions in the rack documentation before you install devices remove devices or relocate the rack 12

Caution the weight of this part or unit is more than 55 kg 121 lb it takes specially trained persons a lifting device or both to safely lift this part or unit 12

Kg 121 lb 12

Statement 12 12

Statement 13 12

Note each stand alone rack must be attached to the floor by a trained service technician according to your local building codes place a fastener in each corner of the rack each fastener must have a rated pull out force of at least 460 newtons 13

Safety 13

S2 42u dynamic standard and expansion racks installation guide 14

Chapter 1 introduction 15

For more information about rack cabinets and options see http www ibm com systems xbc cog rackcabinetsoptions rackcabinetsoptions html 15

If documentation updates are available you can download them from the ibm web site the rack cabinet might have features that are not described in the documentation that comes with the rack and the documentation might be updated occasionally to include information about those features or technical updates might be available to provide additional information that is not included in the rack documentation to check for updates complete the following steps 15

In the product family field select rack storage enclosures 5 in the type field select 9956 6 click continue 15

Install one or more optional devices 15

Installing the rack cabinet consists of the following tasks 1 unpack the rack according to the ibm s2 42u dynamic standard and expansion racks unpacking instructions document that comes with the rack cabinet 2 locate the rack according to the ibm eserver rack planning guide 3 install rack stabilizer brackets on all racks 4 prepare the rack for optional devices v remove the side panels if applicable v remove the front and rear doors from all racks if necessary 15

Note changes are made periodically to the ibm web site procedures for locating documentation might vary slightly from what is described in this document 1 go to http www ibm com systems support 2 under product support click system x 3 under popular links click publications lookup for documentation updates 15

Note install the heaviest devices in the bottom of the rack cabinet 6 complete the rack cabinet installation v reinstall side panels on all racks or on the outermost racks in a suite v reinstall front and rear doors on all racks 15

Rack is set up and ready for use 15

S2 42u dynamic standard rack and ibm s2 42u dynamic expansion rack always read the documentation that comes with your server or optional device for detailed installation instructions 15

The ibm documentation cd 15

The ibm documentation cd contains documentation for the rack cabinet in portable document format pdf and includes the ibm documentation browser to help you find information quickly 15

This document contains general installation instructions for the ib 15

V attach expansion racks to a standard rack or to each other to form suites 15

Click help for detailed information about using the documentation browser 16

E win32 bat 16

Hardware and software requirements 16

Run in the open field type 16

Select the rack cabinet from the product menu the available topics list displays all the documents for the rack some documents might be in folders a plus sign indicates each folder or document that has additional documents under it click the plus sign to display the additional documents 16

Sh runlinux sh 16

The ibm documentation cd requires the following minimum hardware and software 16

To search all the documents type a word or word string in the search field and click search the documents in which the word or word string appears are listed in order of the most occurrences click a document to view it and press crtl f to use the acrobat search function or press alt f to use the xpdf search function within the document 16

Use the documentation browser to browse the contents of the cd read brief descriptions of the documents and view documents using adobe acrobat reader or xpdf the documentation browser automatically detects the regional settings in your computer and displays the documents in the language for that region if available if a document is not available in the language for that region the english language version is displayed 16

Using the documentation browser 16

V 32 mb of ram v adobe acrobat reader 3 or later or xpdf which comes with linux operating systems 16

V microsoft windows xp windows 2000 or red hat linux v 100 mhz microprocessor 16

When you select a document a description of the document is displayed under topic description to select more than one document press and hold the ctrl key while you select the documents click view book to view the selected document or documents in acrobat reader or xpdf if you selected more than one document all the selected documents are opened in acrobat reader or xpdf 16

Where e is the drive letter of the cd or dvd drive and click ok if you are using red hat linux insert the cd into the cd or dvd drive then run the following command from the mnt cdrom directory 16

Chapter 1 introduction 17

Notices and statements in this document 17

The caution and danger statements in this document are also in the multilingual ibm rack safety information document that comes with the rack cabinet each statement is numbered for reference to the corresponding statement in your language in the rack safety information document 17

The following notices and statements are used in this document v note these notices provide important tips guidance or advice 17

V attention these notices indicate potential damage to programs devices or data an attention notice is placed just before the instruction or situation in which damage might occur 17

V caution these statements indicate situations that can be potentially hazardous to you a caution statement is placed just before the description of a potentially hazardous procedure step or situation v danger these statements indicate situations that can be potentially lethal or extremely hazardous to you a danger statement is placed just before the description of a potentially lethal or extremely hazardous procedure step or situation 17

V important these notices provide information or advice that might help you avoid inconvenient or problem situations 17

S2 42u dynamic standard and expansion racks installation guide 18

Chapter 2 installing a rack cabinet 19

Each stand alone rack must be attached to the floor by a trained service technician according to your local building codes place a fastener in each corner of the rack each fastener must have a rated pull out force of at least 460 newtons 2 the illustrations in this document might differ slightly from your hardware 19

Figure 1 ibm s2 42u dynamic standard rack 19

Racks the standard rack cabinet comes with side panels installed the expansion rack cabinet does not come with side panels but includes the required hardware for building a suite of racks you need one standard rack cabinet per suite 19

The standard and expansion rack cabinets are 42u hig 19

Figure 2 ibm s2 42u dynamic expansion rack comes without side panels 20

S2 42u dynamic standard and expansion racks installation guide 20

Configuration dimensions 21

Empty with outriggers 21

Kg 2407 lb 1061 kg 2339 lb 21

Kg 313 lb 111 kg 245 lb 21

Maximum configuration 21

Mm x 600 mm x 1000 mm 78 in x 23 in x 39 in 21

Mm x 605 mm x 1000 mm 78 in x 23 in x 39 in 21

Mm x 725 mm x 1000 mm 78 in x 28 in x 39 in 21

S2 42u dynamic expansion rack cabinet with outriggers 21

S2 42u dynamic expansion rack cabinet without outriggers 21

S2 42u dynamic standard rack cabinet with outriggers 21

S2 42u dynamic standard rack cabinet without outriggers 21

S2 42u dynamic standard rack s2 42u dynamic expansion rack 21

Size and weight specifications 21

Table 1 ibm s2 42u dynamic standard rack and ibm s2 42u dynamic expansion rack physical dimensions 21

Table table 2 ibm s2 42u dynamic standard rack and ibm s2 42u dynamic expansion rack weights 21

The s2 42u standard rack and s2 42u expansion rack conform to the electronic industries association eia standard eia 310 d cabinets racks panels and associated equipment 1992 for the rack cabinet dimensions and weights see table 1 and table 2 21

Total load 950 kg 2094 lb 950 kg 2094 lb 21

Always relocate the rack cabinet with the outriggers installed keep the outriggers and install them if you have to move the rack to another location in the future 22

Danger danger 22

Removing and installing the outriggers side stabilizers 22

S2 42u dynamic standard and expansion racks installation guide 22

The outriggers are the stabilizers with wheels that are installed on the sides of the rack cabinet after the rack is in its final location and will not be moved you can remove the outriggers 22

Chapter 2 installing a rack cabinet 23

Figure 3 removing and installing the outriggers 23

Install the outriggers before you move the rack cabinet to another location use the m5 hex wrench that comes in the hardware kit to install the four bolts that attach each outrigger to the rack cabinet 23

Note before you attach an expansion rack to a standard rack or another expansion rack you must remove the outriggers from the racks so that the racks fit together correctly 23

Note if lower side panels are attached to the upper side panels you must remove the lower side panels before you install the outriggers for more information see installing and removing the lower side panels on page 15 23

To remove the outriggers use the m5 hex wrench that comes in the hardware kit to remove the four bolts that attach each outrigger to the rack cabinet keep the outriggers and bolts for future use if you have to move the rack 23

Danger 24

Figure 4 lowering the leveling pads 24

Hand tighten the thumbscrews on the front fixed casters 24

Installing the front stabilizer and the side stabilizer brackets 24

See the unpacking instructions that come with the rack cabinet for information about how to unpack and locate the rack then lower the rack leveling pads and install the front stabilizer for added stability 24

Statement 2 24

To lower the leveling pads and install the front stabilizer complete the following steps 1 use the smaller end of the open end wrench that comes with the hardware kit to lower each of the four leveling pads just enough so that they touch the floor the rack casters support the weight of the rack cabinet the pads prevent the rack from rolling 24

V always install stabilizer brackets on the rack cabinet v always install servers and optional devices starting from the bottom of the rack cabinet 24

V always install the heaviest devices in the bottom of the rack cabinet 24

V always lower the leveling pads on the rack cabinet 24

Danger all stand alone rack configurations must be equipped with anti tip plates on both sides and bolted to the floor surface 25

Figure 5 removing the outriggers 25

If this is a stand alone rack cabinet complete the following steps 25

Note each stand alone rack must be attached to the floor by a trained service technician according to your local building codes place a fastener in each corner of the rack each fastener must have a rated pull out force of at least 460 newtons a remove both outriggers from the sides of the rack by removing the four bolts on each side save the outriggers for use in the future if you have to move the rack cabinet to another location 25

B attach the front stabilizer to the front of the rack cabinet with the screws and hex wrench that come with the hardware kit 26

Bolt the rack to the floor surface through the holes in the front stabilizer and the side stabilizer brackets see figure 7 and reinstall the side panels 26

C remove the side panels see removing and installing the upper side panels on page 13 for instructions d attach the side stabilizer brackets to the center cage nut on each side of the rack with the hex bolts and washers see figure 7 the stabilizer brackets bolts and washers come in the hardware kit 26

Figure 6 installing the front stabilizer 26

Figure 7 installing the side stabilizer brackets and bolting the rack to the floor surface 26

Stabilizer bracket 26

Figure 8 removing an upper side panel 27

Removing and installing the upper side panels 27

The standard rack comes with the upper side panels installed remove the side panels from the rack before you install or remove optional devices 27

To remove the upper side panels from a standard rack complete the following steps 1 unlock both button locks on a side panel 27

Using the recessed handles tilt the bottom of the side panel slightly toward you then lift the side panel away from the ridge on the top of the rack cabinet 3 repeat this procedure to remove the second side panel 27

Figure 9 installing an upper side panel 28

S2 42u dynamic standard and expansion racks installation guide 28

To install the upper side panels reverse the removal procedure lock each side panel to secure it to the rack cabinet 28

Figure 10 removing and installing a lower side panel 29

Installing and removing the lower side panels 29

Note if you have to move the rack cabinet to another location make sure that you remove the lower side panels before you install the outriggers 29

To remove the lower side panel from the upper side panel remove the five plastic pins store the lower side panels and pins for future use 29

Two lower side panels and attaching hardware come with the standard rack cabinet to attach a lower side panel to an upper side panel press the five plastic pins through the holes on the bottom of the upper side panel and into the holes on the lower side panel see the following illustration 29

Figure 11 removing a front door 30

Holding the door firmly with one hand lift both hinge pins until they lock in the open position this releases the door from the hinges 3 grasp the door firmly with both hands and pull it away from the hinges then set the door aside 30

Holding the door with one hand push the hinge pins down to the closed position 30

Removing and installing a front door 30

Removing and installing rack cabinet doors 30

The standard and expansion racks come with front and rear doors installed if part of the rack is obstructed by the door when you are installing or removing an optional device remove the rack cabinet doors 30

To install a front door on the rack cabinet complete the following steps 1 grasp the door firmly with both hands and align the door to the hinge pins slide the door onto the hinges 30

To remove a front door from the rack cabinet complete the following steps 30

Unlock and open the door 30

Figure 12 opening and removing the rear doors 31

Grasp the door firmly with both hands and pull it away from the hinges then set the door aside 4 open the left side door by squeezing the blue handles on the spring loaded latch and pulling the door open 5 hold the left side door firmly with one hand then lift both hinge pins on the inside of the door until they lock in the open position this releases the door from the hinges 6 grasp the door firmly with both hands and pull it away from the hinges then set the door aside 31

Hold the door firmly with one hand then lift both hinge pins on the inside of the door until they lock in the open position this releases the door from the hinges 31

Removing and installing rear doors 31

Reverse this procedure to install the rear doors on the rack cabinet make sure that the door with the spring loaded latch is installed on the left side 31

To remove the rear doors from the rack cabinet complete the following steps 1 unlock and open the right side door 31

Figure 13 moving the door hinges and front door latch 32

Note there are extra screws in the hardware kit in case you drop one into the rack channel 32

Remove the door according to removing and installing a front door on page 16 2 use a hex wrench to remove the top and bottom hinges from the rack cabinet then install the hinges on the other side of the rack 32

Remove the front door latch and attach it to the other side of the rack 32

Reversing a front door 32

To reverse a front door on a rack cabinet so that it opens in the opposite direction complete the following steps 32

Carefully rotate the door 180 then install the door on the other side of the rack by using the instructions in removing and installing a front door on page 16 33

Figure 14 rotating and installing the door 33

Hinge pins 33

Figure 15 moving the ibm logo 34

Remove the ibm logo from the bottom of the door then snap it into place near the top of the perforated section of the door 34

S2 42u dynamic standard and expansion racks installation guide 34

Attaching racks in a suite 35

Expansion racks come with all the hardware that is required for you to attach racks together and form a suite a box wrench hex wrench and screws come with the expansion rack hardware kit you need one standard rack to form a suite you do not have to remove the doors to attach the racks together 35

Figure 16 attaching standard and expansion racks to each other to form a suite 35

Note before you attach an expansion rack to a standard rack or another expansion rack you must remove the outriggers from the racks so that the racks fit together correctly 35

On the side of the standard rack cabinet where you are attaching the expansion rack remove the side panel for more information see removing and installing the upper side panels on page 13 2 apply the strip of gasket that comes with the hardware kit to the outside front and rear vertical edges of the expansion rack to prevent the two racks from rubbing against each other 3 insert an attachment pin that comes with the expansion rack through the top slot on the front of the standard and expansion racks as shown in figure 16 the slot is behind the top hinge 4 hold the attachment pin in place with the box wrench and use the hex wrench to tighten a screw on each side of the attachment pin 5 install a second attachment pin in the slot near the bottom hinge of the rack 35

To attach racks together in a suite complete the following steps 35

Hold the attachment pin in place with the box wrench and use the hex wrench to tighten a screw on each side of the attachment pin 7 repeat this procedure to attach the back of the racks together with two attachment pins 36

Repeat this procedure to attach additional expansion racks to the suite 36

S2 42u dynamic standard and expansion racks installation guide 36

Chapter 3 installing optional devices 37

Danger 37

Installation guidelines 37

Statement 2 37

There are many servers and optional devices that you can install in the standard and expansion racks always read the documentation that comes with your server or optional device for detailed installation instructions 37

V always lower the leveling pads on the rack cabinet v always install stabilizer brackets on the rack cabinet v always install servers and optional devices starting from the bottom of the rack cabinet v always install the heaviest devices in the bottom of the rack cabinet 37

When you install optional devices in the rack cabinet follow these safety guidelines 37

Attach power cords to outlet 38

Attach signal cables to connectors 38

Danger 38

Electrical current from power telephone and communication cables is hazardous 38

First attach all cables to devices 38

First remove power cords from outlet 38

Remove all cables from devices 38

Remove signal cables from connectors 38

S2 42u dynamic standard and expansion racks installation guide 38

Statement 4 38

To avoid a shock hazard v do not connect or disconnect any cables or perform installation maintenance or reconfiguration of this product during an electrical storm v connect all power cords to a properly wired and grounded electrical outlet v connect to properly wired outlets any equipment that will be attached to this product v when possible use one hand only to connect or disconnect signal cables v never turn on any equipment when there is evidence of fire water or structural damage 38

To connect to disconnect 38

Turn device on 38

Turn everything off 38

V connect and disconnect cables as described in the following table when installing moving or opening covers on this product or attached devices 38

V disconnect the attached power cords telecommunications systems networks and modems before you open the device covers unless instructed otherwise in the installation and configuration procedures 38

18 kg 39 lb 32 kg 70 lb 55 kg 121 lb 39

Always install the heaviest devices in the bottom of the rack cabinet a configurator tool is available at http www ibm com systems x configtools html to assist you with determining where to install optional devices in the rack 39

Caution do not place any object on top of a rack mounted device unless that rack mounted device is intended for use as a shelf 39

Caution use safe practices when lifting 39

Chapter 3 installing optional devices 39

For information about optional compatible devices that you can install in the rack cabinet go to the serverprove 39

Statement 5 39

Statement 6 39

Web site at http www ibm com servers eserver serverproven compat us 39

Determine the hole in which you want to install the cage nut 2 from the inside of the rack mounting flange insert one edge of the cage nut into the hole 3 push the tool through the hole and hook the other edge of the cage nut 4 pull the tool and the cage nut back through the hole to complete the installation of the cage nut 40

Installing cage nuts 40

Installing devices on the rack mounting flanges 40

Installing threaded rails 40

To install a cage nut with the cage nut insertion tool complete the following steps 40

Using the cage nut insertion tool 40

When you install optional devices in the rack cabinet secure the device or the rails for that device on rack mounting flanges some devices come with threaded holes on the rail mounting flange other devices require that you use cage nuts to install them in the rack 40

You must install devices that have threaded holes or device rails that have threaded holes on the rail mounting flange on the inside of the rack mounting flanges see the device documentation for detailed information about how to use threaded rails 40

You must use cage nuts for all optional devices that do not have threaded holes the rack cabinet comes with a supply of cage nuts and devices that require them come with cage nuts cage nuts are installed on the inside of the rack mounting flanges with either the cage nut insertion tool or a flat blade screwdriver the cage nut insertion tool comes with the rack and some optional devices 40

Determine the hole in which you want to install the cage nut 41

Hold the cage nut in one hand and compress the cage nut clip with a flat blade screwdriver 3 with the clip compressed push the edge of the cage nut fully into the hole from the inside of the rack mounting flange 4 release the screwdriver pressure on the clip to lock the cage nut into place 41

Installing devices vertically in the rack cabinet 41

The standard and expansion racks come with space on the sides that can be used to vertically mount power distribution units pdus and console switches the racks come with six locations three on each side of the rack cabinet see the documentation that comes with your pdu or console switch for detailed instructions for installing the device vertically in a rack 41

To install a cage nut with a flat blade screwdriver complete the following steps 41

Using a flat blade screwdriver 41

S2 42u dynamic standard and expansion racks installation guide 42

Always read the instructions that come with your server or optional device for detailed cable management information use the following general guidelines when you cable servers or optional devices that you install in a rack cabinet 43

Chapter 4 managing cables 43

Copyright ibm corp 2009 43

Danger 43

Run the cables neatly along equipment cable management arms and secure the cables to the arms using provided cable straps leave enough extra cable so that the device can fully extend without straining the cables secure the cables so that the device can retract without pinching or cutting the cables v when you install devices that are mounted on fixed rails observe the following precautions run the cables neatly along the posts or side rails in the rack cabinet out of the way of other installed devices secure the cables with the provided cable straps v make sure that the cables cannot be pinched or cut by the rack cabinet rear door or other devices v run internal cables that connect devices in adjoining racks through the large openings in the rear of the rack cabinet v run external cables through the bottom of the rack cabinet or through the cable access opening in the top of the rack 43

Statement 8 43

V do not run cables in front of or behind other devices that will prevent service access to those devices v do not bend cables beyond the specified limits v label all cables so that they are clearly distinguishable from each other v when you install devices that are mounted on slide rails such as servers observe the following precautions 43

V plug power cords from devices in the rack cabinet into electrical outlets that are located near the rack cabinet and are easily accessible v each rack cabinet might have more than one power cord be sure to disconnect all power cords in the rack cabinet before servicing any device in the rack cabinet v install an emergency power off switch if more than one power device power distribution unit or uninterruptible power supply is installed in the same rack cabinet v connect all devices installed in a rack cabinet to power devices installed in the same rack cabinet do not plug a power cord from a device installed in one rack cabinet into a power device installed in a different rack cabinet 43

Cable routing brackets 44

Figure 19 cable routing bracket 44

To route cables neatly in the rear of the rack cabinet use the cable routing brackets that are attached to the rack mounting flange in the rear of the rack the rack comes with six cable routing brackets use a screwdriver to remove and install the brackets on the flange 44

Figure 20 routing cables using the cable access bar 45

Remove the four pan head screws and washers that attached the cable access bar to the rack cabinet as shown in the following illustration 45

Route the cables through the opening 3 reattach the cable access bar to the rack cabinet with the four screws and washers that you removed in step 1 make sure that you do not pinch or cut any cables 45

The cable access bar on the bottom rear of the rack cabinet keeps the external cables in place to more easily route the external cables through the opening in the bottom rear of a rack you can remove the cable access bar to remove the cable access bar complete the following steps 45

Using the cable access bar on the bottom of the rack cabinet 45

Figure 21 location of the cable access opening 46

Loosen the two wing nuts on the cable access panel in the inside top of the rack cabinet then slide the cable access panel toward the front of the rack 2 route the cables through the opening 3 slide the cable access panel toward the back of the rack cabinet make sure that you do not pinch or cut any cables 4 tighten the two wing nuts 46

To route external cables through the cable access opening in the top of a standard or expansion rack complete the following steps 46

Using the cable access opening in the top of the rack cabinet 46

Before you move the rack cabinet to another location read the important guidelines in this chapter 47

Chapter 5 moving a rack cabinet 47

Copyright ibm corp 2009 47

When you move a rack cabinet observe the following safety guidelines 47

Danger 48

S2 42u dynamic standard and expansion racks installation guide 48

Statement 8 48

V plug power cords from devices in the rack cabinet into electrical outlets that are located near the rack cabinet and are easily accessible v each rack cabinet might have more than one power cord be sure to disconnect all power cords in the rack cabinet before servicing any device in the rack cabinet v install an emergency power off switch if more than one power device power distribution unit or uninterruptible power supply is installed in the same rack cabinet v connect all devices installed in a rack cabinet to power devices installed in the same rack cabinet do not plug a power cord from a device installed in one rack cabinet into a power device installed in a different rack cabinet 48

Caution removing components from the upper positions in the rack cabinet improves rack stability during relocation follow these general guidelines whenever you relocate a populated rack cabinet within a room or building v reduce the weight of the rack cabinet by removing equipment starting at the top of the rack cabinet when possible restore the rack cabinet to the configuration of the rack cabinet as you received it if this configuration is not known you must do the following remove all devices in the 22u position and above 49

Chapter 5 moving a rack cabinet 49

Ensure that the heaviest devices are installed in the bottom of the rack cabinet ensure that there are no empty u levels between devices installed in the rack cabinet below the 22u level 49

If a long distance relocation is required restore the rack cabinet to the configuration of the rack cabinet as you received it pack the rack cabinet in the original packaging material or equivalent also lower the leveling pads to raise the casters off of the pallet and strap the rack cabinet to the pallet 49

Lower the four leveling pads install stabilizer brackets on the rack cabinet if you removed any devices from the rack cabinet repopulate the rack cabinet from the lowest position to the highest position 49

Statement 11 49

To move the rack cabinet to another location complete the following general steps 1 follow the safety guidelines in this chapter 2 know the weight of the rack cabinet to help determine the weight of the rack see table 2 on page 7 a general guideline is to assume a weight of 23 kg 50 lb per rack u space 3 use the following weight limit guidelines 49

V if the rack cabinet is empty at least two people are required to move the rack v if the rack cabinet weight is between 142 and 227 kg between 313 and 500 lb three or four people are required to move the rack 49

V if the rack cabinet you are relocating is part of a suite of rack cabinets detach the rack cabinet from the suite v inspect the route that you plan to take to eliminate potential hazards v verify that the route that you choose can support the weight of the loaded rack cabinet refer to the documentation that comes with your rack cabinet for the weight of a loaded rack cabinet v verify that all door openings are at least 760 x 2083 mm 30 x 82 in v ensure that all devices shelves drawers doors and cables are secure v ensure that the four leveling pads are raised to their highest position v ensure that there is no stabilizer bracket installed on the rack cabinet v do not use a ramp inclined at more than ten degrees v once the rack cabinet is in the new location do the following 49

Carefully move the rack cabinet to the new location by using the safety guidelines in this chapter 50

Danger always relocate the rack cabinet with the outriggers installed keep the outriggers and install them if you have to move the rack to another location in the future use the wrench the comes in the hardware kit to install the four bolts that attach each outrigger to the rack cabinet make sure that you tighten the bolts securely 50

Figure 22 installing the outriggers 50

Note if lower side panels are attached to the upper side panels you must remove the lower side panels before you install the outriggers for more information see installing and removing the lower side panels on page 15 50

S2 42u dynamic standard and expansion racks installation guide 50

V if the rack cabinet weight is greater than 227 kg 500 lb professional movers are required to move the rack 4 install the outriggers on both sides of the rack cabinet 50

Chapter 6 parts listing s2 42u dynamic standard and dynamic expansion racks 51

Copyright ibm corp 2009 51

S2 42u dynamic standard rack and ibm s2 42u dynamic expansion rack are described in this chapter 51

The replaceable components that are available for the xserie 51

To check for an updated parts listing on the web complete the following steps 1 go to http www ibm com systems support 2 under product support click system x 51

Under popular links click parts documents lookup 4 from the product family menu select rack storage enclosures and click continue 51

Adjustable foot 46m5262 52

Baying kit 39m6741 52

Cable access bar 46m5278 52

Cable routing bracket 39m6653 52

Cru part number tier 1 52

Cru part number tier 2 52

Fixed caster front 46m5261 52

For information about the terms of the warranty and getting service and assistance see part 3 warranty information on page 57 52

Front door 16r1485 52

Front stabilizer 39m6739 52

Fru part number 52

Hardware kit tools screws and other hardware 52

Index description 52

Keys door and side panel 16r1497 52

Latch door 16r1496 52

Lower side panel 46m5264 52

Outrigger side stabilizer 46m5259 52

Replaceable components are of three types v tier 1 customer replaceable unit cru replacement of tier 1 crus is your responsibility if ibm installs a tier 1 cru at your request you will be charged for the installation v tier 2 customer replaceable unit you may install a tier 2 cru yourself or request ibm to install it at no additional charge under the type of warranty service that is designated for your server v field replaceable unit fru frus must be installed only by trained service technicians 52

S2 42u dynamic standard and expansion racks installation guide 52

Split rear door left 13n2059 52

Split rear door right 13n2058 52

Swivel caster rear 46m5260 52

Table 3 parts listing for ibm s2 42u dynamic standard rack and ibm s2 42u dynamic expansion rack type 9956 52

Upper side panel kit 46m5258 52

And xseries information is http www ibm com systems x the address for ibm bladecente 53

Appendix a getting help and technical assistance 53

Before you call 53

Before you call make sure that you have taken these steps to try to solve the problem yourself v check all cables to make sure that they are connected v check the power switches to make sure that the system and any optional devices are turned on v use the troubleshooting information in your system documentation and use the diagnostic tools that come with your system information about diagnostic tools is in the problem determination and service guide on the ibm documentation cd that comes with your system v go to the ibm support web site at http www ibm com systems support to check for technical information hints tips and new device drivers or to submit a request for information 53

Getting help and information from the world wide web 53

If you need help service or technical assistance or just want more information about ibm products you will find a wide variety of sources available from ibm to assist you this section contains information about where to go for additional information about ibm and ibm products what to do if you experience a problem with your system and whom to call for service if it is necessary 53

Information about your ibm system and preinstalled software if any or optional device is available in the documentation that comes with the product that documentation can include printed documents online documents readme files and help files see the troubleshooting information in your system documentation for instructions for using the diagnostic programs the troubleshooting information or the diagnostic programs might tell you that you need additional or updated device drivers or other software ibm maintains pages on the world wide web where you can get the latest technical information and download device drivers and updates to access these pages go to http www ibm com systems support and follow the instructions also some documents are available through the ibm publications center at http www ibm com shop publications order 53

Information is http www ibm com intellistation 53

Information is http www ibm com systems bladecenter the address for ibm intellistatio 53

On the world wide web the ibm web site has up to date information about ibm systems optional devices services and support the address for ibm system 53

Using the documentation 53

You can solve many problems without outside assistance by following the troubleshooting procedures that ibm provides in the online help or in the documentation that is provided with your ibm product the documentation that comes with ibm systems also describes the diagnostic tests that you can perform most systems operating systems and programs come with documentation that contains troubleshooting procedures and explanations of error messages and error codes if you suspect a software problem see the documentation for the operating system or program 53

F 3f no 7 song ren rd 54

For more information about support line and other ibm services see http www ibm com services or see http www ibm com planetwide for support telephone numbers in the u s and canada call 1 800 ibm serv 1 800 426 7378 54

Hardware service and support 54

Ibm ibm taiwan corporation 54

Ibm taiwan product service 54

Ibm taiwan product service contact information 54

In the u s and canada hardware service and support is available 24 hours a day 7 days a week in the u k these services are available monday through friday from 9 a m to 6 p m 54

S2 42u dynamic standard and expansion racks installation guide 54

Software service and support 54

Taipei taipei taiwan 54

Telephone telephone 0800 016 888 54

Through ibm support line you can get telephone assistance for a fee with usage configuration and software problems with system x and xseries servers bladecenter products intellistation workstations and appliances for information about which products are supported by support line in your country or region see http www ibm com services sl products 54

You can find service information for ibm systems and optional devices at http www ibm com systems support 54

You can receive hardware service through your ibm reseller or ibm services to locate a reseller authorized by ibm to provide warranty service go to http www ibm com partnerworld and click find a business partner on the right side of the page for ibm support telephone numbers see http www ibm com planetwide in the u s and canada call 1 800 ibm serv 1 800 426 7378 54

Appendix b ibm statement of limited warranty z125 4753 10 08 2008 55

During the warranty period ibm provides repair and exchange service for the machine under the type of warranty service ibm designates for the machine the warranty period for the machine is a fixed period starting on its original date of installation the date on your purchase invoice or sales receipt is the date of installation unless ibm or your reseller informs you otherwise the warranty period type of warranty and service level that apply to your machine are designated in part 3 55

Ibm warrants that each machine is free from defects in materials and workmanship and conforms to its specifications specifications is information specific to a machine in a document entitled official published specifications which is available upon request 55

Many features conversions or upgrades involve the removal of parts and their return to ibm an ibm part that replaces a removed part will assume the warranty service status of the removed part an ibm part that is added to a machine without replacing a previously installed part is subject to warranty effective on its date of installation unless ibm specifies otherwise the warranty period type of warranty and service level of such part is the same as the machine on which it is installed 55

Part 1 general terms 55

The warranties provided by ibm in this statement of limited warranty apply only to machines you purchase for your use and not for resale the term machine means an ibm machine its features conversions upgrades elements or accessories or any combination of them the term machine does not include any software programs whether pre loaded with the machine installed subsequently or otherwise nothing in this statement of limited warranty affects any statutory rights of consumers that cannot be waived or limited by contract 55

These warranties are your exclusive warranties and replace all other warranties or conditions express or implied including but not limited to the implied warranties or conditions of merchantability and fitness for a particular purpose and any warranty of title or non infringment some 55

This statement of limited warranty includes part 1 general terms part 2 country unique terms and part 3 warranty information the terms of part 2 replace or modify those of part 1 for purposes of this statement of limited warranty ibm means the ibm entity that provided your machine to you or to your reseller for example international business machines corporation in the u s or ibm world trade corporation or the local ibm entity in your country 55

This statement of limited warranty is available in multiple languages at the following ibm internet website http www ibm com systems support machine_warranties 55

Unless ibm specifies otherwise these warranties apply only in the country or region in which you purchased the machine 55

What this warranty covers 55

A failure or damage resulting from misuse including but not limited to use of any machine capacity or capability other than that authorized by ibm in writing accident modification unsuitable physical or operating environment operation in other than the specified operating environment or improper maintenance by you or a third party 56

Any technical or other support provided for a machine under warranty such as assistance with how to questions and those regarding machine set up and installation is provided without warranties of any kind 56

B failure due to events beyond ibm s control 56

C failure caused by a product for which ibm is not responsible 56

D any non ibm products including those provided with or installed on an ibm machine at your request 56

E accessories supply items and consumables e g batteries and printer cartridges and structural parts e g frames and covers 56

F service of machine alterations and 56

G service of a machine on which you are using capacity or capability other than that authorized by ibm in writing 56

How to obtain warranty service 56

Ibm does not warrant uninterrupted or error free operation of a machine 56

Ibm will attempt to diagnose and resolve your problem over the telephone or electronically by access to an ibm internet website certain machines contain 56

If the machine does not function as warranted during the warranty period refer to the service documentation that shipped with your machine for support assistance and problem determination procedures a copy of the service documentation for your machine can also be found at the following ibm website http www ibm com under support and downloads 56

If you are unable to resolve your problem with the service documentation contact ibm or your reseller to obtain warranty service contact information for ibm is provided in part 3 if you do not register the machine with ibm you may be required to present proof of purchase as evidence of your entitlement to warranty service 56

S2 42u dynamic standard and expansion racks installation guide 56

States or jurisdictions do not allow the exclusion of express or implied warranties so the above exclusion may not apply to you in that event such warranties are limited in duration to the warranty period no warranties apply after that period some states or jurisdictions do not allow limitations on how long an implied warranty lasts so the above limitation may not apply to you 56

The warranty is voided by removal or alteration of identification labels on the machine or its parts 56

This warranty does not cover the following 56

What ibm will do to correct problems 56

What this warranty does not cover 56

A before ibm or its subcontractor or the reseller exchanges a machine or part to remove all features parts options alterations and attachments not under warranty service and ensure that the machine is free of any legal obligations or restrictions that prevent its exchange 57

Appendix b ibm statement of limited warranty z125 4753 10 08 2008 57

B to obtain authorization from the owner to have ibm or its subcontractor or the reseller service a machine that you do not own 57

C where applicable before service is provided 1 follow the service request procedures that ibm or its subcontractor or its reseller provides 2 backup and secure all programs data and funds contained in the machine and 3 inform ibm or its subcontractor or the reseller of changes in the machine s location 57

Exchange of a machine or part 57

Ibm or its subcontractor or the reseller will also manage and install selected engineering changes that apply to the machine 57

If the machine does not function as warranted during the warranty period and your problem cannot be resolved over the telephone or electronically through your application of machine code or software updates or with a cru ibm or its subcontractor or a reseller that has been approved by ibm to provide warranty service will either at its discretion 1 repair it to make it function as warranted or 2 replace it with one that is at least functionally equivalent if ibm or its subcontractor or the reseller is unable to do either you may return the machine to your place of purchase and your money will be refunded 57

Remote support capabilities for direct problem reporting remote problem determination and resolution with ibm when you contact ibm for service you must follow the problem determination and resolution procedures that ibm specifies following problem determination if ibm determines on site service is required a service technician will be scheduled for service at your location 57

Some parts of ibm machines are designated as customer replaceable units crus if your problem can be resolved with a cru e g keyboard memory hard disk drive ibm will ship the cru to you for you to install 57

When the warranty service involves the exchange of a machine or part the item ibm or its subcontractor or the reseller replaces becomes ibm s property and the replacement becomes yours you represent that all removed items are genuine and unaltered the replacement may not be new but will be in good working order and at least functionally equivalent to the item replaced the replacement assumes the warranty service status of the replaced item 57

You agree 57

You are responsible for downloading or obtaining from ibm and installing designated machine code microcode basic input output system code called bios utility programs device drivers and diagnostics delivered with an ibm machine and other software updates in a timely manner from an ibm internet website or from other electronic media and following the instructions that ibm provides you may request ibm to install machine code changes however you may be charged for that service 57

Your additional responsibilities 57

A damages for bodily injury including death and damage to real property and tangible personal property and 58

B the amount of any other actual direct damages up to the charges if recurring 12 months charges apply for the machine that is subject of the claim for purposes of this item the term machine includes machine code and licensed internal code lic 58

Circumstances may arise where because of a default on ibm s part or other liability you are entitled to recover damages from ibm regardless of the basis on which you are entitled to claim damages from ibm including fundamental breach negligence misrepresentation or other contract or tort claim except for any liability that cannot be waived or limited by applicable laws ibm s entire liability for all claims in the aggregate arising from or related to each product will not exceed 58

D to provide ibm or its subcontractor or the reseller with sufficient and safe access to your facilities to permit ibm to fulfill its obligations 58

E to allow ibm or its subcontractor or the reseller to install mandatory engineering changes such as those required for safety 58

F when the type of warranty service requires that you deliver a failing machine to ibm you agree to ship it suitably packaged as ibm specifies to a location ibm designates after the machine has been repaired or exchanged ibm will return the repaired machine or provide a replacement machine to you at its expense unless ibm specifies otherwise ibm is responsible for loss of or damage to your machine only while it is 1 in ibm s possession or 2 in transit in those cases where ibm is responsible for the transportation charges and 58

G to securely erase from any machine you return to ibm for any reason all programs not provided by ibm with the machine and data including without limitation the following 1 information about identified or identifiable individuals or legal entities personal data and 2 your confidential or proprietary information and other data if removing or deleting personal data is not possible you agree to transform such information e g by making it anonymous or encrypting it so that it no longer qualifies as personal data under applicable law you also agree to remove all funds from machines returned to ibm ibm is not responsible for any funds programs not provided by ibm with the machine or data contained in a machine that you return to ibm you acknowledge that to perform its responsibilities under this statement of limited warranty ibm may ship all or part of the machine or its software to other ibm or third party locations around the world and you authorize ibm to do so 58

Limitation of liability 58

S2 42u dynamic standard and expansion racks installation guide 58

This limit also applies to ibm s suppliers subcontractors and resellers it is the maximum for which ibm and its suppliers subcontractors and resellers are collectively responsible 58

Under no circumstances is ibm or its suppliers subcontractors or resellers liable for any of the following even if informed of their possibility 1 third party claims against you for damages other than those under the first item listed above 2 loss of or damage to data 3 special incidental or indirect damages or for any economic consequential damages or 4 lost profits business revenue goodwill or anticipated savings some states or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages so the above limitation or exclusion may not apply to you 58

All of our rights duties and obligations are subject to the courts of the country in which you acquired the machine 59

Americas 59

Any litigation arising from this statement of limited warranty will be settled exclusively by 1 in argentina the ordinary commercial court of the city of buenos aires 2 in bolivia the courts of the city of la paz 3 in brazil court of rio de janeiro rj 4 in chile the civil courts of justice of santiago 5 in colombia the judges of the republic of colombia 6 in equador the civil judges of quito for executory or summary proceedings as applicable 7 in mexico the courts located in mexico city federal district 8 in paraguay the courts of the city of asuncion 9 in peru the judges and tribunals of the judicial district of lima cercado 10 in uruguay the courts of the city of montevideo 11 in venezuela the courts of the metropolitan area of the city of caracas 59

Appendix b ibm statement of limited warranty z125 4753 10 08 2008 59

Both you and ibm consent to the application of the laws of the country in which you acquired the machine to govern interpret and enforce all of your and ibm s rights duties and obligations arising from or relating in any manner to the subject matter of this statement of limited warranty without regard to conflict of law principles 59

Brazil 59

Canada 59

Delete the last sentence 59

During the warranty period ibm provides repair and exchange service for the machine under the type of warranty service ibm designates for the machine the warranty period for the machine is a fixed period starting on its original date of installation the date on your purchase invoice or sales receipt is the date of installation unless ibm informs you otherwise the warranty period type of warranty and service level that apply to your machine are designated in part 3 59

Exchange of a machine or part 59

Governing law 59

Jurisdiction 59

Paragraph to this section 59

Part 2 country unique terms 59

The following replaces the 59

The following sentence is added to this section as it applies to countries in bold print below 59

The replacement assumes the warranty service status of the replaced item 59

These warranties give you specific legal rights and you may also have other rights which vary from state to state or jurisdiction to jurisdiction 59

What this warranty covers 59

A damages for bodily injury including death or physical harm to real property and tangible personal property caused by ibm s negligence and 60

Asia pacific 60

Australia 60

B the amount of any other actual direct damages up to the greater of 100 000 0 or the charges if recurring 12 months charges apply for the machine that is subject of the claim for purposes of this item the term machine includes machine code and licensed internal code lic 60

Governing law 60

In accordance with article 1328 of the peruvian civil code the limitations and exclusions specified in this section will not apply to damages caused by ibm s willful misconduct dolo or gross negligence culpa inexcusable 60

Laws in the province of ontario 60

Laws of the state of new york 60

Limitation of liability 60

S2 42u dynamic standard and expansion racks installation guide 60

The following is added at the end of this section 60

The following is added to this section 60

The following paragraph is added to this section 60

The following replaces item a and item b of this section 60

The following replaces laws of the country in which you acquired the machine in the first sentence 60

The warranties specified in this section are in addition to any rights you may have under the trade practices act 1974 or other similar legislation and are only limited to the extent permitted by the applicable legislation 60

United states 60

What this warranty covers 60

Where ibm is in breach of a condition or warranty implied by the trade practices act 1974 or other similar legislation ibm s liability is limited to the repair or 60

All proceedings shall be conducted including all documents presented in such proceedings in the english language the english language version of this statement of limited warranty prevails over any other language version 61

Appendix b ibm statement of limited warranty z125 4753 10 08 2008 61

Arbitration 61

As applies to transactions initiated and performed in hong kong s a r phrases throughout this agreement containing the word country for example country of purchase and country of installation are replaced with hong kong s a r 61

Cambodia and laos 61

Cambodia indonesia and laos 61

Disputes arising out of or in connection with this statement of limited warranty shall be finally settled by arbitration which shall be held in singapore in accordance with the arbitration rules of singapore international arbitration center siac rules then in effect the arbitration award shall be final and binding for the parties without appeal and shall be in writing and set forth the findings of fact and the conclusions of law 61

Governing law 61

Hong kong s a r 61

If one of the parties refuses or otherwise fails to appoint an arbitrator within 30 days of the date the other party appoints its the first appointed arbitrator shall be the sole arbitrator provided that the arbitrator was validly and properly appointed 61

Laws of the state of new york united states of america 61

Laws of the state or territory 61

Replacement of the goods or the supply of equivalent goods where that condition or warranty relates to right to sell quiet possession or clear title or the goods are of a kind ordinarily acquired for personal domestic or household use or consumption then none of the limitations in this paragraph apply 61

The following is added under this heading 61

The following replaces laws of the country in which you acquired the machine in the first sentence 61

The number of arbitrators shall be three with each side to the dispute being entitled to appoint one arbitrator the two arbitrators appointed by the parties shall appoint a third arbitrator who shall act as chairman of the proceedings vacancies in the post of chairman shall be filled by the president of the siac other vacancies shall be filled by the respective nominating party proceedings shall continue from the stage they were at when the vacancy occurred 61

A liability for bodily injury including death or damage to real property and tangible personal property will be limited to that caused by ibm s negligence and 62

All proceedings shall be conducted including all documents presented in such proceedings in the english language the english language version of this statement of limited warranty prevails over any other language version 62

Any doubts concerning this statement of limited warranty will be initially resolved between us in good faith and in accordance with the principle of mutual trust 62

Arbitration 62

As applies to transactions initiated and performed in macau s a r phrases throughout this agreement containing the word country for example country of purchase and country of installation are replaced with macau s a r 62

B as to any other actual damage arising in any situation involving nonperformance by ibm pursuant to or in any way related to the subject of this statement of limited warranty the charge paid by you for the individual machine that is the subject of the claim for purposes of this item the term machine includes machine code and licensed internal code lic 62

Disputes arising out of or in connection with this statement of limited warranty shall be finally settled by arbitration which shall be held in bangalore india in accordance with the laws of india then in effect the arbitration award shall be final and binding for the parties without appeal and shall be in writing and set forth the findings of fact and the conclusions of law 62

Governing law 62

If one of the parties refuses or otherwise fails to appoint an arbitrator within 30 days of the date the other party appoints its the first appointed arbitrator shall be the sole arbitrator provided that the arbitrator was validly and properly appointed 62

Limitation of liability 62

Macau s a r 62

Malaysia 62

S2 42u dynamic standard and expansion racks installation guide 62

The following is added under this heading 62

The following replaces item a and item b of this section 62

The following sentence is added to this section 62

The number of arbitrators shall be three with each side to the dispute being entitled to appoint one arbitrator the two arbitrators appointed by the parties shall appoint a third arbitrator who shall act as chairman of the proceedings vacancies in the post of chairman shall be filled by the president of the bar council of india other vacancies shall be filled by the respective nominating party proceedings shall continue from the stage they were at when the vacancy occurred 62

Appendix b ibm statement of limited warranty z125 4753 10 08 2008 63

Arbitration 63

Disputes arising out of or in connection with this statement of limited warranty shall be finally settled by arbitration which shall be held in metro manila philippines in accordance with the laws of the philippines then in effect the arbitration award shall be final and binding for the parties without appeal and shall be in writing and set forth the findings of fact and the conclusions of law 63

Governing law 63

Item 3 in the last paragraph is replaced by the following 63

Laws of the state of new york united states of america except when local law requires otherwise 63

Limitation of liability 63

New zealand 63

People s republic of china prc 63

Philippines 63

Special including nominal and exemplary damages moral incidental or indirect damages for any economic consequential damages or 63

The following is added to this section 63

The following is added under this heading 63

The following paragraph is added to this section 63

The following replaces laws of the country in which you acquired the machine in the first sentence 63

The number of arbitrators shall be three with each side to the dispute being entitled to appoint one arbitrator the two arbitrators appointed by the parties shall appoint a third arbitrator who shall act as chairman of the proceedings vacancies in the post of chairman shall be filled by the president of the philippine dispute resolution 63

The warranties specified in this section are in addition to any rights you may have under the consumer guarantees act 1993 or other legislation which cannot be excluded or limited the consumer guarantees act 1993 will not apply in respect of any goods which ibm provides if you require the goods for the purposes of a business as defined in that act 63

The word special in item 3 of the last paragraph is deleted 63

What this warranty covers 63

Where machines are not acquired for the purposes of a business as defined in the consumer guarantees act 1993 the limitations in this section are subject to the limitations in that act 63

Add the following paragraphs in western europe andorra austria belgium bulgaria cyprus czech republic denmark estonia finland france germany greece hungary iceland ireland italy latvia liechtenstein lithuania luxembourg malta monaco netherlands norway poland portugal romania san marino slovakia slovenia spain sweden switzerland united kingdom vatican state and any country subsequently added to the european union as from the date of accession 64

All proceedings shall be conducted including all documents presented in such proceedings in the english language the english language version of this statement of limited warranty prevails over any other language version 64

Center inc other vacancies shall be filled by the respective nominating party proceedings shall continue from the stage they were at when the vacancy occurred 64

Europe middle east africa emea 64

Governing law 64

How to obtain warranty service 64

If one of the parties refuses or otherwise fails to appoint an arbitrator within 30 days of the date the other party appoints its the first appointed arbitrator shall be the sole arbitrator provided that the arbitrator was validly and properly appointed 64

If you purchase a machine in a middle east or african country you may obtain warranty service for that machine from the ibm entity within the country of purchase if that ibm entity provides warranty service in that country or from an ibm reseller approved by ibm to perform warranty service on that machine in that country warranty service in africa is available within 50 kilometers of an ibm approved service provider you are responsible for transportation costs for machines located outside 50 kilometers of an ibm approved service provider 64

If you purchase a machine in one of the western european countries as defined above you may obtain warranty service for that machine in any of those countries from either 1 an ibm reseller approved to perform warranty service or 2 from ibm provided the machine has been announced and made available by ibm in the country in which you wish to obtain service 64

Limitation of liability 64

S2 42u dynamic standard and expansion racks installation guide 64

Singapore 64

The following terms apply to all emea countries 64

The terms of this statement of limited warranty apply to machines purchased from ibm or an ibm reseller 64

The warranty for machines acquired in western europe shall be valid and applicable in all western europe countries provided the machines have been announced and made available in such countries 64

The words special and economic in item 3 in the last paragraph are deleted 64

Arbitration 66

Batteries or packaging for batteries are labeled in accordance with european directive 2006 66 ec concerning batteries and accumulators and waste batteries and accumulators the directive determines the framework for the return and recycling of used batteries and accumulators as applicable throughout the european union this label is applied to various batteries to indicate that the battery is not to be thrown away but rather reclaimed upon end of life per this directive 66

European union eu battery directive 66

In accordance with the european directive 2006 66 ec batteries and accumulators are labeled to indicate that they are to be collected separately and recycled at end of life the label on the battery may also include a chemical symbol for the metal concerned in the battery pb for lead hg for mercury and cd for cadmium users of batteries and accumulators must not dispose of batteries and accumulators as unsorted municipal waste but use the collection framework available to customers for the return recycling and treatment of batteries and accumulators customer 66

In albania armenia azerbaijan belarus bosnia herzegovina bulgaria croatia georgia hungary kazakhstan kyrgyzstan libya fyr macedonia moldova montenegro poland romania russia serbia slovakia slovenia tajikistan turkmenistan ukraine and uzbekistan all disputes arising out of this statement of limited warranty or related to its violation termination or nullity will be finally settled under the rules of arbitration and conciliation of the international arbitral center of the federal economic chamber in vienna vienna rules by three arbitrators appointed in accordance with these rules the arbitration will be held in vienna austria and the official language of the proceedings will be english the decision of the arbitrators will be final and binding upon both parties therefore pursuant to paragraph 598 2 of the austrian code of civil procedure the parties expressly waive the application of paragraph 595 1 figure 7 of the code ibm may however institute proceedings in a competent court in the cou 66

In estonia latvia and lithuania all disputes arising in connection with this statement of limited warranty will be finally settled in arbitration that will be held in helsinki finland in accordance with the arbitration laws of finland then in effect each party will appoint one arbitrator the arbitrators will then jointly appoint the chairman if arbitrators cannot agree on the chairman then the central chamber of commerce in helsinki will appoint the chairman 66

Kingdom both of us agree to submit all disputes relating to this statement of limited warranty to the exclusive jurisdiction of the english courts 9 in liechtenstein all of our rights duties and obligations are settled exclusively by the competent court of zurich and 10 to the competent courts of czech republic 66

Notice notice this mark applies only to countries within the european union eu 66

S2 42u dynamic standard and expansion racks installation guide 66

The following is added under this heading 66

A ibm s liability for any damages and losses that may arise as a consequence of the fulfillment of its obligations under or in connection with this statement of limited warranty or due to any other cause related to this statement of limited warranty is limited to the compensation of only those damages and losses proved and actually arising as an immediate and direct consequence of the non fulfillment of such obligations if ibm is at fault or of such cause for a maximum amount equal to the charges you paid for the machine for purposes of this item the term machine includes machine code and licensed internal code lic 67

Appendix b ibm statement of limited warranty z125 4753 10 08 2008 67

B under no circumstances is ibm or its suppliers subcontractors or resellers liable for any of the following even if informed of their possibility 1 loss of or damage to data 2 incidental or indirect damages or for any economic consequential damages 3 lost profits even if they arise as an immediate consequence of the event that generated the damages or 4 loss of business revenue goodwill or anticipated savings 67

Denmark finland greece italy liechtenstein netherlands norway portugal spain sweden and switzerland 67

Except as otherwise provided by mandatory law 67

France and belgium 67

Limitation of liability 67

Participation is important to minimize any potential effects of batteries and accumulators on the environment and human health due to the potential presence of hazardous substances 67

The above limitation shall not apply to damages for bodily injuries including death and damages to real property and tangible personal property for which ibm is legally liable 67

The following replaces the terms of this section in its entirety 67

The following terms apply to all eu countries 67

The retail price of batteries accumulators and power cells includes the cost of the environmental management of their waste for proper collection and treatment contact your local ibm representative 67

The warranty for machines acquired in eu countries is valid and applicable in all eu countries provided the machines have been announced and made available in such countries 67

A ibm s liability for any damages and losses that may arise as a consequence of the fulfillment of its obligations under or in connection with this statement of limited warranty is limited in the aggregate to the compensation of only those damages and losses proved and actually arising as an immediate and direct consequence of the non fulfillment of such obligations if ibm is at fault for a maximum amount equal to the charges you paid for the machine that has caused the damages for purposes of this item the term machine includes machine code and licensed internal code lic 68

Austria and germany 68

B under no circumstances is ibm or its suppliers subcontractors or resellers liable for any of the following even if informed of their possibility 1 loss of or damage to data 2 incidental or indirect damages or for any economic consequential damages 3 lost profits even if they arise as an immediate consequence of the event that generated the damages or 4 loss of business revenue goodwill or anticipated savings 68

During the warranty period transportation for the delivery of the failing machine to ibm will be at ibm s expense 68

Except as otherwise provided by mandatory law 68

Limitation of liability 68

S2 42u dynamic standard and expansion racks installation guide 68

The above limitation shall not apply to damages for bodily injuries including death and damages to real property and tangible personal property for which ibm is legally liable 68

The following is added to this section 68

The following paragraph is added to this section 68

The following replaces the first sentence of the first paragraph of this section 68

The following terms apply to the country specified 68

The minimum warranty period for machines is 12 months in case ibm or your reseller is unable to repair an ibm machine you can alternatively ask for a price reduction as far as justified by the reduced value of the unrepaired machine or ask for a cancellation of the respective agreement for such machine and get your money refunded 68

The second paragraph does not apply 68

The warranty for an ibm machine covers the functionality of the machine for its normal use and the machine s conformity to its specifications 68

This limit also applies to ibm s suppliers subcontractors and resellers it is the maximum for which ibm and its suppliers subcontractors and resellers are collectively responsible 68

What ibm will do to correct problems 68

What this warranty covers 68

A ibm will accept unlimited liability for death or personal injury caused by the negligence of ibm 69

Appendix b ibm statement of limited warranty z125 4753 10 08 2008 69

B subject always to the items for which ibm is not liable below ibm will accept unlimited liability for physical damages to your tangible property resulting from the negligence of ibm 69

C except as provided in items a and b above ibm s entire liability for actual damages for any one default will not in any event exceed the greater of 1 eur 125 000 or 2 125 of the amount you paid for the machine directly relating to the default 69

Circumstances may arise where because of a default you are entitled to recover damages from ibm 69

Except as expressly provided in these terms and conditions or section 12 of the sale of goods act 1893 as amended by the sale of goods and supply of services act 1980 the 1980 act all conditions or warranties express or implied statutory or otherwise are hereby excluded including without limitation any warranties implied by the sale of goods act 1893 as amended by the 1980 act including for the avoidance of doubt section 39 of the 1980 act 69

For the purposes of this section a default means any act statement omission or negligence on the part of ibm in connection with or in relation to the subject matter of this statement of limited warranty in respect of which ibm is legally liable to you whether in contract or tort a number of defaults which together result in or contribute to substantially the same loss or damage will be treated as one default occurring on the date of occurrence of the last such default 69

Ibm s liability under this item is limited to the violation of essential contractual terms in cases of ordinary negligence 69

Ireland 69

Items for which ibm is not liable 69

Limitation of liability 69

Save with respect to any liability referred to in item a above under no circumstances is ibm its suppliers or resellers liable for any of the following even if ibm or they were informed of the possibility of such losses 69

The following is added to this section 69

The following paragraph is added to this section 69

The following replaces the terms of this section in its entirety 69

The following sentence is added to the end of item b 69

The limitations and exclusions specified in the statement of limited warranty will not apply to damages caused by ibm with fraud or gross negligence and for express warranty 69

This section sets out the extent of ibm s liability and your sole remedy 69

What this warranty covers 69

A ibm will accept unlimited liability for 1 death or personal injury caused by the negligence of ibm and 2 any breach of its obligations implied by section 12 of the sale of goods act 1979 or section 2 of the supply of goods and services act 1982 or any statutory modification or re enactment of either such section 70

A loss of or damage to data 70

B ibm will accept unlimited liability subject always to the items for which ibm is not liable below for physical damage to your tangible property resulting from the negligence of ibm 70

B special indirect or consequential loss or 70

C ibm s entire liability for actual damages for any one default will not in any event except as provided in items a and b above exceed the greater of 1 pounds sterling 75 000 or 2 125 of the total purchase price payable or the charges for the machine directly relating to the default 70

C loss of profits business revenue goodwill or anticipated savings 70

Circumstances may arise where because of a default you are entitled to recover damages from ibm 70

For the purposes of this section a default means any act statement omission or negligence on the part of ibm in connection with or in relation to the subject matter of this statement of limited warranty in respect of which ibm is legally liable to you whether in contract or tort a number of defaults which together result in or contribute to substantially the same loss or damage will be treated as one default 70

Ibm s entire liability to you for actual damages arising in all situations involving nonperformance by ibm in respect of the subject matter of this statement of warranty will be limited to the charge paid by you for the individual machine that is the subject of your claim from ibm 70

Limitation of liability 70

S2 42u dynamic standard and expansion racks installation guide 70

South africa namibia botswana lesotho and swaziland 70

The following is added to this section 70

The following replaces the terms of this section in its entirety 70

The minimum warranty period for machines is 2 years 70

This section sets out the extent of ibm s liability and your sole remedy 70

Turkey 70

United kingdom 70

What this warranty covers 70

4rx 9956 4xx 71

A loss of or damage to data 71

B special indirect or consequential loss 71

C loss of profits business revenue goodwill or anticipated savings or 71

Country of purchase warranty period 71

D third party claims against you for damages 71

Items for which ibm is not liable 71

Machine type s 71

Part 3 warranty information 71

Save with respect to any liability referred to in item a above under no circumstances is ibm or any of its suppliers or resellers liable for any of the following even if ibm or they were informed of the possibility of such losses 71

Scheduling of a warranty service will depend upon the following 1 the time your request for service is received 2 machine technology and redundancy and 3 availability of parts contact your local ibm representative or the subcontractor or reseller performing services on behalf of ibm for country and location specific information 71

See types of warranty service and service levels for explanations of warranty service types and service levels 71

These limits also apply to ibm s suppliers and resellers they state the maximum for which ibm and such suppliers and resellers are collectively responsible 71

Type 1 customer replaceable unit cru service ibm provides replacement crus to you for you to install cru information and replacement instructions are shipped with your machine and are available from ibm at any time on your request crus are designated as being either a tier 1 mandatory or a tier 2 optional cru installation of a tier 1 cru is your responsibility if ibm installs a tier 1 cru at your request you will be charged for the installation you may install a tier 2 cru yourself or request ibm to install it at no additional charge under the type of warranty service designated for your machine ibm specifies in the materials shipped with a replacement cru whether a defective cru must be returned to ibm when return is required 1 return instructions and a container are shipped with the replacement cru and 2 you may be charged for the replacement cru if ibm does not receive the defective cru within 15 days of your receipt of the replacement 71

Type 5 cru and on site service at ibm s discretion you will receive cru service or ibm or your reseller will repair the failing machine at your location and verify its operation you must provide suitable working area to allow disassembly and reassembly of the ibm machine the area must be clean well lit and suitable for the purpose 71

Type 6 cru and courier or depot service at ibm s discretion you will receive cru service or you will disconnect the 71

Type of warranty service service level 71

Types of warranty service 71

Worldwide 3 years 1 1 71

Failing machine for collection arranged by ibm ibm will provide you with a shipping container for you to return your machine to a designated service center a courier will pick up your machine and deliver it to the designated service center following its repair or exchange ibm will arrange the return delivery of the machine to your location you are responsible for its installation and verification of operation 72

For ibm in canada or the united states call 1 800 ibm serv or 1 800 426 7378 for ibm in the european union eu asia pacific and latin america countries contact ibm in that country or visit the ibm directory of worldwide contacts at the following ibm internet website http www ibm com planetwide 72

Ibm contact information 72

Ibm encourages you to use available remote support technologies failure to install and use available remote connectivity tools and equipment for direct problem reporting remote problem determination and resolution may result in an increased service level response time due to resource requirements 1 next business day nbd 9x5 72

S2 42u dynamic standard and expansion racks installation guide 72

Same business day sbd 9x5 3 same day sd 24x7 72

Service levels 72

Service levels specified below are response time objectives only and are not guarantees the specified service level may not be available in all worldwide locations charges may apply outside ibm s normal service area response times are based on local standard business days and working hours unless otherwise specified all responses are measured from the time the customer contacts ibm for problem determination until ibm has resolved the problem remotely or scheduled service to be performed same business day warranty service sbd is based on local standard business days and working hours next business day warranty service nbd is based on commercially reasonable effort 72

Type 7 cru and customer carry in or mail in service at ibm s discretion you will receive cru service or you will deliver or mail as ibm specifies prepaid unless ibm specifies otherwise the failing machine suitably packaged to a location ibm designates after ibm has repaired or exchanged the machine ibm will make it available for your collection or for mail in service ibm will return it to you at ibm s expense unless ibm specifies otherwise you are responsible for its installation and verification of operation 72

Type 8 cru and machine exchange service at ibm s discretion you will receive specified cru service or ibm will initiate shipment of a replacement machine to your location you must pack the failing machine into the shipping container that contained the replacement machine and return the failing machine to ibm transportation charges both ways are paid by ibm you may be charged for the replacement machine if ibm does not receive the failing machine within 15 days of your receipt of the replacement machine you are responsible for its installation and verification of operation 72

Any references in this information to non ibm web sites are provided for convenience only and do not in any manner serve as an endorsement of those web sites the materials at those web sites are not part of the materials for this ibm product and use of those web sites is at your own risk 73

Appendix c notices 73

Armonk armonk ny 10504 1785 73

Ibm ibm corporation 73

Ibm ibm director of licensing 73

Ibm may have patents or pending patent applications covering subject matter described in this document the furnishing of this document does not give you any license to these patents you can send license inquiries in writing to 73

Ibm may not offer the products services or features discussed in this document in other countries consult your local ibm representative for information on the products and services currently available in your area any reference to an ibm product program or service is not intended to state or imply that only that ibm product program or service may be used any functionally equivalent product program or service that does not infringe any ibm intellectual property right may be used instead however it is the user s responsibility to evaluate and verify the operation of any non ibm product program or service 73

Ibm may use or distribute any of the information you supply in any way it believes appropriate without incurring any obligation to you 73

Ibm the ibm logo and ibm com are trademarks or registered trademarks of international business machines corporation in the united states other countries or both if these and other ibm trademarked terms are marked on their first occurrence in this information with a trademark symbol 73

International business machines corporation provides this publication as is without warranty of any kind either express or implied including but not limited to the implied warranties of non infringement merchantability or fitness for a particular purpose some states do not allow disclaimer of express or implied warranties in certain transactions therefore this statement may not apply to you 73

North north castle drive 73

These symbols indicate u s registered or common law trademarks owned by ibm at the time this information was published such trademarks may also be registered or common law trademarks in other countries a current list of ibm trademarks is available on the web at copyright and trademark information at http www ibm com legal copytrade shtml 73

This information could include technical inaccuracies or typographical errors changes are periodically made to the information herein these changes will be incorporated in new editions of the publication ibm may make improvements and or changes in the product s and or the program s described in this publication at any time without notice 73

This information was developed for products and services offered in the u s a 73

Trademarks 73

U s a u s a 73

Adobe and postscript are either registered trademarks or trademarks of adobe systems incorporated in the united states and or other countries 74

Cd or dvd drive speed is the variable read rate actual speeds vary and are often less than the possible maximum 74

Cell broadband engine is a trademark of sony computer entertainment inc in the united states other countries or both and is used under license therefrom 74

Ibm makes no representation or warranties regarding non ibm products and services that are serverproven including but not limited to the implied warranties of merchantability and fitness for a particular purpose these products are offered and warranted solely by third parties 74

Ibm makes no representations or warranties with respect to non ibm products support if any for the non ibm products is provided by the third party not ibm 74

Important notes 74

Intel intel xeon itanium and pentium are trademarks or registered trademarks of intel corporation or its subsidiaries in the united states and other countries 74

Java and all java based trademarks are trademarks of sun microsystems inc in the united states other countries or both 74

Linux is a registered trademark of linus torvalds in the united states other countries or both 74

Maximum internal hard disk drive capacities assume the replacement of any standard hard disk drives and population of all hard disk drive bays with the largest currently supported drives that are available from ibm 74

Maximum memory might require replacement of the standard memory with an optional memory module 74

Microsoft windows and windows nt are trademarks of microsoft corporation in the united states other countries or both 74

Other company product or service names may be trademarks or service marks of others 74

Processor speed indicates the internal clock speed of the microprocessor other factors also affect application performance 74

S2 42u dynamic standard and expansion racks installation guide 74

Unix is a registered trademark of the open group in the united states and other countries 74

When referring to hard disk drive capacity or communications volume mb stands for 1 000 000 bytes and gb stands for 1 000 000 000 bytes total user accessible capacity can vary depending on operating environments 74

When referring to processor storage real and virtual storage or channel volume kb stands for 1024 bytes mb stands for 1 048 576 bytes and gb stands for 1 073 741 824 bytes 74

Appendix c notices 75

Esta unidad debe reciclarse o desecharse de acuerdo con lo establecido en la normativa nacional o local aplicable ibm recomienda a los propietarios de equipos de tecnología de la información ti que reciclen responsablemente sus equipos cuando éstos ya no les sean útiles ibm dispone de una serie de programas y servicios de devolución de productos en varios países a fin de ayudar a los propietarios de equipos a reciclar sus productos de ti se puede encontrar información sobre las ofertas de reciclado de productos de ibm en el sitio web de ibm http www ibm com ibm recycle us index shtml y http www ibm com ibm environment products index shtml 75

L etiquette du système respecte la directive européenne 2002 96 ec en matière de déchets des equipements electriques et electroniques deee qui détermine les dispositions de retour et de recyclage applicables aux systèmes utilisés à travers 75

Notice this mark applies only to countries within the european union eu and norway 75

Product recycling and disposal 75

Remarque cette marque s applique uniquement aux pays de l union européenne et à la norvège 75

Some software might differ from its retail version if available and might not include user manuals or all program functionality 75

This appliance is labeled in accordance with european directive 2002 96 ec concerning waste electrical and electronic equipment weee the directive determines the framework for the return and recycling of used appliances as applicable throughout the european union this label is applied to various products to indicate that the product is not to be thrown away but rather reclaimed upon end of life per this directive 75

This unit must be recycled or discarded according to applicable local and national regulations ibm encourages owners of information technology it equipment to responsibly recycle their equipment when it is no longer needed ibm offers a variety of product return programs and services in several countries to assist equipment owners in recycling their it products information on ibm product recycling offerings can be found on ibm s internet sites at http www ibm com ibm recycle us index shtml and http www ibm com ibm environment products index shtml 75

Batteries or packaging for batteries are labeled in accordance with european directive 2006 66 ec concerning batteries and accumulators and waste batteries and accumulators the directive determines the framework for the return and recycling of used batteries and accumulators as applicable throughout the european 76

Battery return program 76

For taiwan please recycle batteries 76

For the european union 76

In accordance with the european weee directive electrical and electronic equipment eee is to be collected separately and to be reused recycled or recovered at end of life users of eee with the weee marking per annex iv of the weee directive as shown above must not dispose of end of life eee as unsorted municipal waste but use the collection framework available to customers for the return recycling and recovery of weee customer participation is important to minimize any potential effects of eee on the environment and human health due to the potential presence of hazardous substances in eee for proper collection and treatment contact your local ibm representative 76

In the united states ibm has established a return process for reuse recycling or proper disposal of used ibm sealed lead acid nickel cadmium nickel metal hydride and battery packs from ibm equipment for information on proper disposal of these batteries contact ibm at 1 800 426 4333 have the ibm part number listed on the battery available prior to your call 76

L union européenne conformément à la directive ladite étiquette précise que le produit sur lequel elle est apposée ne doit pas être jeté mais être récupéré en fin de vie 76

Notice this mark applies only to countries within the european union eu 76

S2 42u dynamic standard and expansion racks installation guide 76

This product may contain a sealed lead acid nickel cadmium nickel metal hydride lithium or lithium ion battery consult your user manual or service manual for specific battery information the battery must be recycled or disposed of properly recycling facilities may not be available in your area for information on disposal of batteries outside the united states go to http www ibm com ibm environment products index shtml or contact your local waste disposal facility 76

Appendix c notices 77

Electronic emission notices 77

Federal communications commission fcc statement 77

For california 77

In accordance with the european directive 2006 66 ec batteries and accumulators are labeled to indicate that they are to be collected separately and recycled at end of life the label on the battery may also include a chemical symbol for the metal concerned in the battery pb for lead hg for mercury and cd for cadmium users of batteries and accumulators must not dispose of batteries and accumulators as unsorted municipal waste but use the collection framework available to customers for the return recycling and treatment of batteries and accumulators customer participation is important to minimize any potential effects of batteries and accumulators on the environment and human health due to the potential presence of hazardous substances for proper collection and treatment contact your local ibm representative 77

Les batteries ou emballages pour batteries sont étiquetés conformément aux directives européennes 2006 66 ec norme relative aux batteries et accumulateurs en usage et aux batteries et accumulateurs usés les directives déterminent la marche à suivre en vigueur dans l union européenne pour le retour et le recyclage des batteries et accumulateurs usés cette étiquette est appliquée sur diverses batteries pour indiquer que la batterie ne doit pas être mise au rebut mais plutôt récupérée en fin de cycle de vie selon cette norme 77

Note this equipment has been tested and found to comply with the limits for a class a digital device pursuant to part 15 of the fcc rules these limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment this equipment generates uses and can radiate radio frequency energy and if not installed and used in accordance with the instruction manual may cause harmful interference to radio 77

Perchlorate material special handling may apply see http www dtsc ca gov hazardouswaste perchlorate 77

The foregoing notice is provided in accordance with california code of regulations title 22 division 4 chapter 33 best management practices for perchlorate materials this product part may include a lithium manganese dioxide battery which contains a perchlorate substance 77

This notice is provided in accordance with royal decree 106 2008 of spain the retail price of batteries accumulators and power cells includes the cost of the environmental management of their waste 77

Union this label is applied to various batteries to indicate that the battery is not to be thrown away but rather reclaimed upon end of life per this directive 77

Attention this is a class a product in a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures 78

Australia and new zealand class a statement 78

Avis de conformité à la réglementation d industrie canada 78

Cet appareil numérique de la classe a est conforme à la norme nmb 003 du canada 78

Communications operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense 78

European community contact 78

European union emc directive conformance statement 78

Ibm ibm technical regulations 78

Industry canada class a emission compliance statement 78

Notice to customers 78

Pascalstr pascalstr 100 stuttgart germany 70569 78

Properly shielded and grounded cables and connectors must be used in order to meet fcc emission limits ibm is not responsible for any radio or television interference caused by using other than recommended cables and connectors or by unauthorized changes or modifications to this equipment unauthorized changes or modifications could void the user s authority to operate the equipment 78

S2 42u dynamic standard and expansion racks installation guide 78

This apparatus is approved under approval number ns g 1234 j 100003 for indirect connection to public telecommunication systems in the united kingdom 78

This class a digital apparatus complies with canadian ices 003 78

This device complies with part 15 of the fcc rules operation is subject to the following two conditions 1 this device may not cause harmful interference and 2 this device must accept any interference received including interference that may cause undesired operation 78

This product has been tested and found to comply with the limits for class a information technology equipment according to cispr 22 european standard en 55022 the limits for class a equipment were derived for commercial and industrial environments to provide reasonable protection against interference with licensed communication equipment 78

This product is in conformity with the protection requirements of eu council directive 2004 108 ec on the approximation of the laws of the member states relating to electromagnetic compatibility ibm cannot accept responsibility for any failure to satisfy the protection requirements resulting from a nonrecommended modification of the product including the fitting of non ibm option cards 78

United kingdom telecommunications safety requirement 78

Appendix c notices 79

Chinese class a warning statement 79

E mail e mail tjahn de ibm com 79

Fax fax 0049 0 711 785 1283 79

Japanese voluntary control council for interference vcci statement 79

Korean class a warning statement 79

Taiwanese class a warning statement 79

Telephone 0049 0 711 785 1176 79

S2 42u dynamic standard and expansion racks installation guide 80

Assistance getting 39 attaching racks in a suite 21 attention notices 3 81

Battery return program 62 brackets cable routing 30 81

Cable access bar 31 cable access opening 32 cable routing brackets 30 cables managing 29 cage nuts installing devices 26 cage nut insertion tool 26 caution statements 3 class a electronic emission notice 63 country unique warranty terms 45 courier or depot service 58 cru part numbers 38 cru service 57 customer carry in service 58 customer replaceable unit service 57 81

Danger statements 3 depot or courier service 58 documentation cd 1 documentation updates obtaining 1 door front installing and removing 16 reversing 18 door rear installing and removing 17 81

Electronic emission class a notice 63 exchanging a machine or part 43 81

Fcc class a notice 63 front door installing and removing 16 front door reversing 18 front stabilizer installing 10 fru part numbers 38 81

Getting help 39 81

Hardware service and support 40 help getting 39 81

Ibm support line 40 important notices 3 installing devices using cage nuts 26 devices vertically in rack 27 devices with threaded rails 26 front door 16 front stabilizer and side stabilizer 10 lower side panels 15 optional devices 23 outriggers 8 36 rear door 17 upper side panels 13 installing rack tasks overview 1 81

Liability limitation of 44 limitation of liability 44 lower side panels installing and removing 15 81

Machine exchange service 58 machine exchanging 43 mail in service 58 managing cables 29 moving a rack 33 81

Next business day service level 58 notes 3 notes important 60 notices 59 electronic emission 63 fcc class a 63 notices and statements 3 81

On site service 57 optional devices installing 23 outriggers removing and installing 8 36 81

Part exchanging 43 parts listing 38 phone numbers 58 81

Product recycling and disposal 61 82

Rack moving 33 size and weight specifications 7 rack installing tasks overview 1 rear door installing and removing 17 recycling and disposal product 61 removing front door 16 lower side panels 15 outriggers 8 rear door 17 upper side panels 13 reversing front door 18 82

S2 42u dynamic standard and expansion racks installation guide 82

Same business day service level 58 same day service level 58 service levels 58 side panels lower installing and removing 15 side panels upper installing and removing 13 side stabilizer installing 10 size and weight specifications of rack 7 software service and support 40 statements and notices 3 suite of racks attaching 21 support web site 39 82

Telephone numbers 40 threaded rails installing devices with 26 trademarks 59 82

United states electronic emission class a notice 63 united states fcc class a notice 63 upper side panels installing and removing 13 82

Warranty service type 57 warranty service obtaining 42 warranty terms country unique 45 web site directory of worldwide contacts 58 publication ordering 39 support 39 support line telephone numbers 40 weight and size specifications of rack 7 82

1p p n 46m1371 84

Part number 46m1371 84

Printed printed in usa 84

IBM expsell s2 42u standard rack, 16r1442 [51/84] Under popular links click parts documents lookup 4 from the product family menu select rack storage enclosures and click continue

Содержание

Похожие устройства
