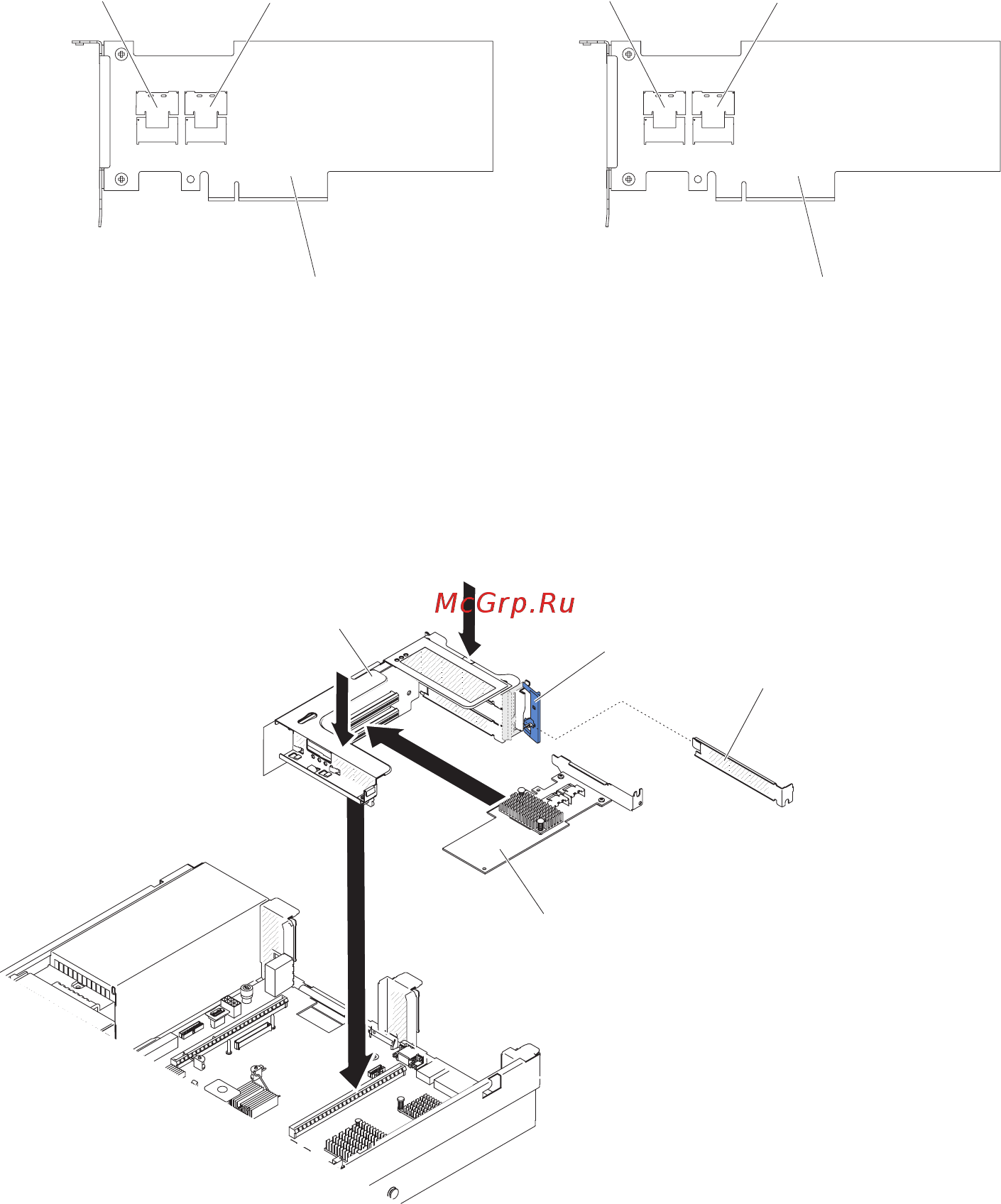

RAID adapter
Connector for
drive bays 16-19
signal cable
Connector for
drive bays 20-23
signal cable
RAID adapter
Connector for
drive bays 8-11
signal cable
Connector for
drive bays 12-15
signal cable
c. Connect a SAS signal cable that comes with the option kit to the RAID
adapter connector for drive bays 16-19.
d. Connect a SAS signal cable that comes with the option kit to the RAID
adapter connector for drive bays 20-23.
12. Align and install the PCI riser-card assembly 1 in the server (see “Installing a
PCI riser-card assembly” on page 56).
Adapter
Expansion-slot
cover
Bracket
PCI riser-card
assembly
13. Route the cables underneath the cable retention.
Chapter 2. Installing optional devices 87
