System-board internal connectors

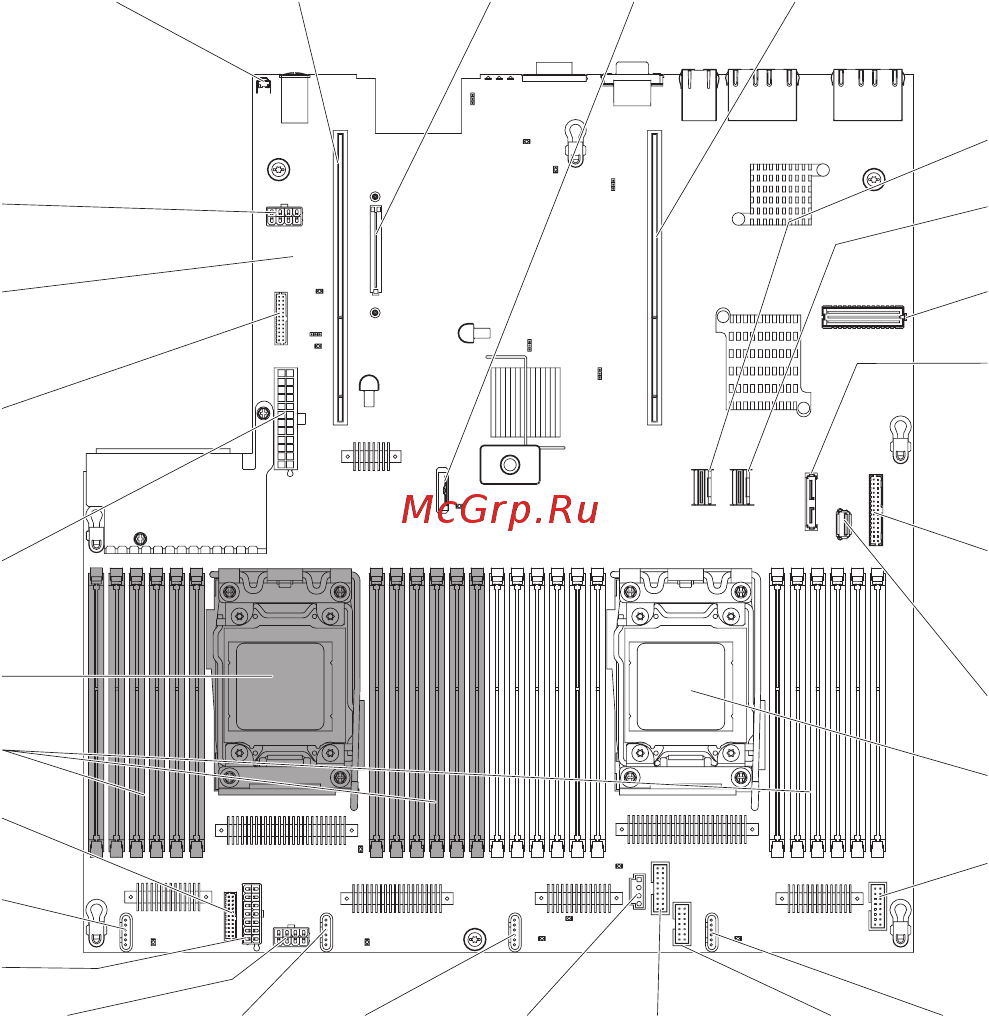

The following illustration shows the internal connectors on the system board.
RAID upgrade
connector
Optial disk drive
connector
USB tape drive
connector
Operator information
panel connector
PCI riser
connector 1
10G Ethernet
connector
PCI riser
connector 2
Video card power
connector 1
USB hypenisor
connector
Power signal
connector
(2nd power supply
to system board)
Power supply
connector
(2nd power supply
to system board)
Microprocessor 2
Fan 4 connector
Fan 3
connector
Fan 2
connector
Fan 1
connector
Front video
connector
SAS/SATA backplane
config connector 1
Front USB
connector
Tape drive
power
connector
Microprocessor 1
DIMM connectors
NMI button
Battery
SAS 0
SAS 1
SAS/SATA backplane
power connector
SAS/SATA
backplane
config
connector 2
Video card power
connector 2
Chapter 2. Installing optional devices 33
