IBM x3250 m4, 2583kcg [38/102] System board internal connectors

System-board internal connectors

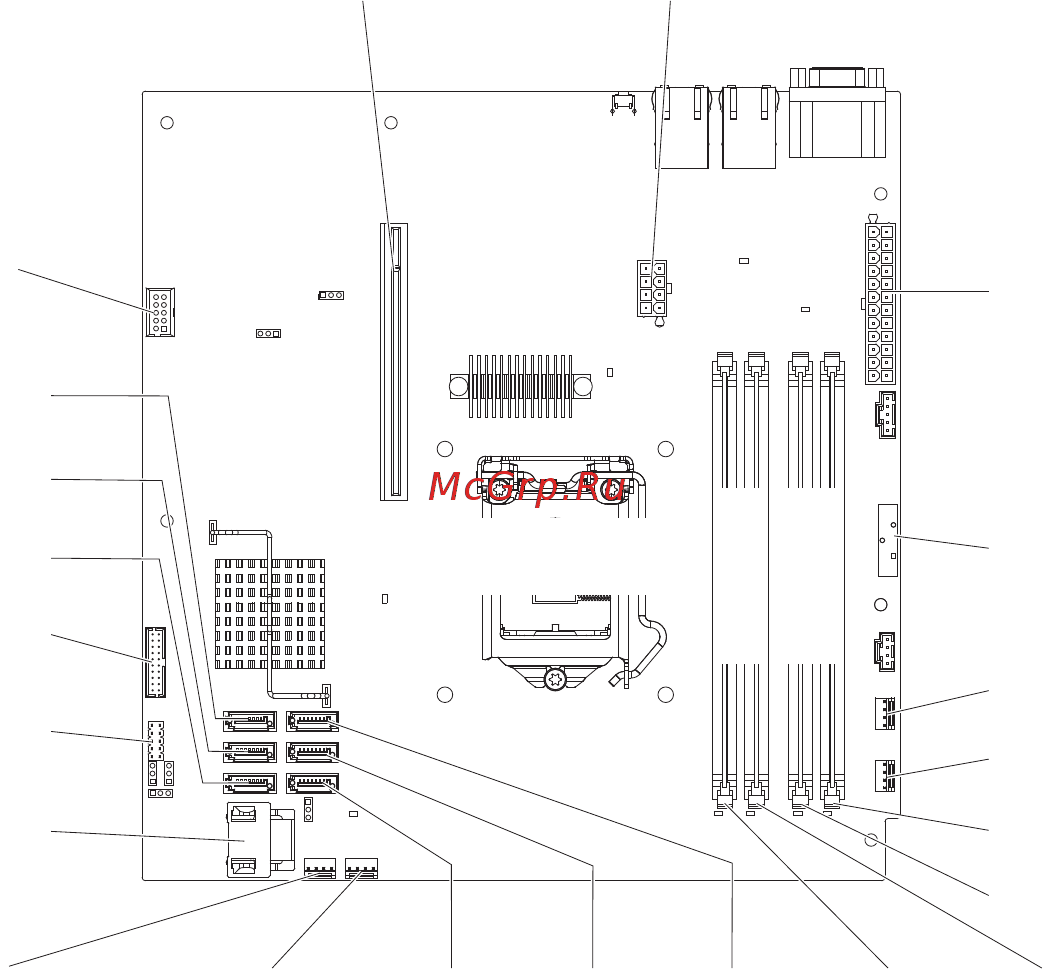

The following illustration shows the internal connectors on the system board.

DIMM 1

DIMM 2

DIMM 3

DIMM 4

Microprocessor

Power 2

Battery

Fan 4 connector

Fan 3 connector

DIMM 1

DIMM 2

DIMM 3DIMM 4Fan 2 connectorFan 1 connector

SATA 2 SATA 1 SATA 0

SATA 3

SATA 4

SATA 5

Operator information

panel connector

Front USB assembly

connecotr

USB hypervisor key

connector

PCI riser connector

Power 1

SAS backplane

configuration

connector
