BEFORE YOU OPERATE THE MONITOR 7

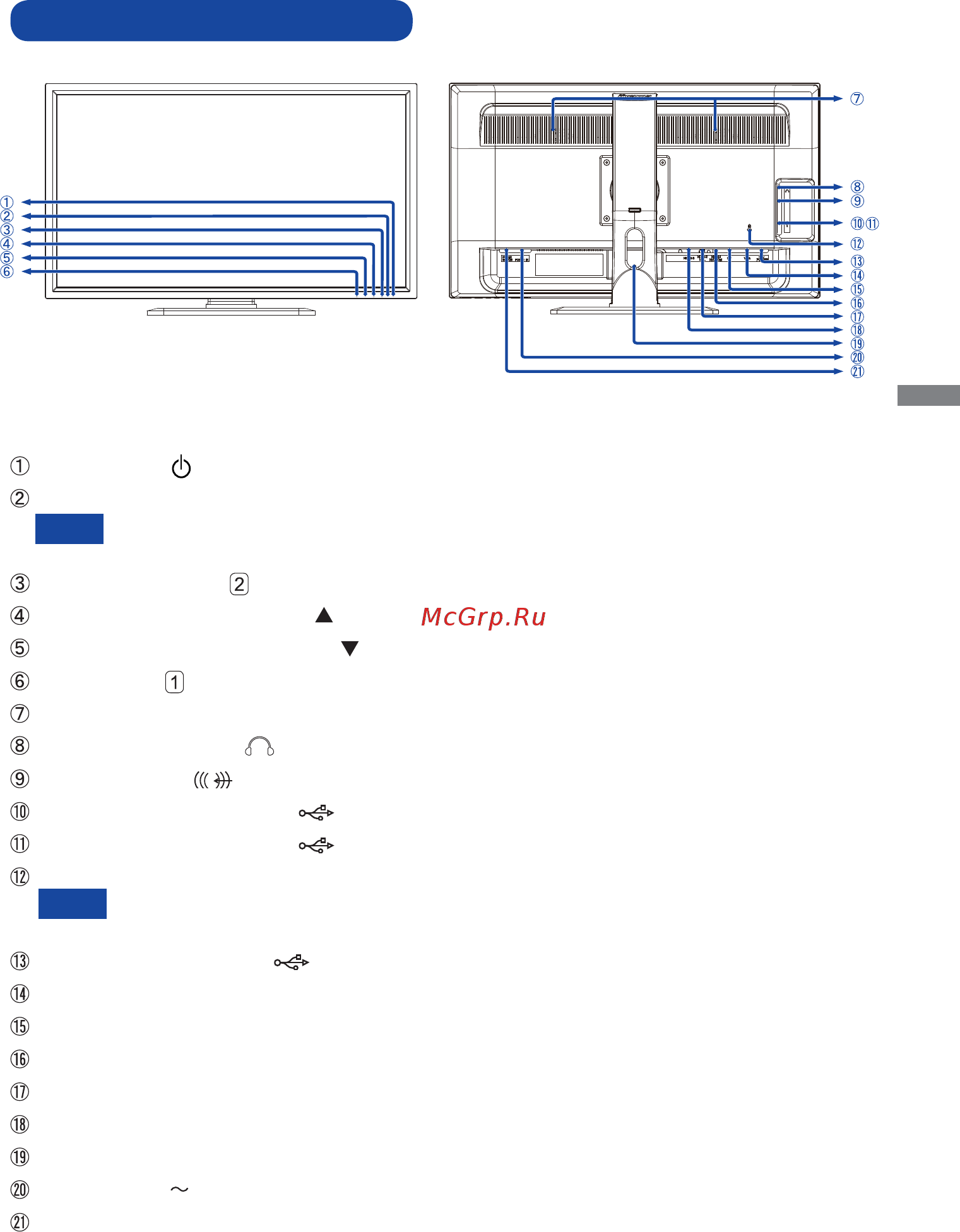

CONTROLS AND CONNECTORS
Power Switch ( )
Power Indicator
Blue: Normal operation
Orange: Power Management
Input / Select Button ( )*
Scroll up / Audio Adjust Button ( )*
Scroll down / i-Style Mode Button ( )*
Menu Button ( )
Speakers
Headphone Connector ( )
Audio Connector ( )
USB Downstream Connector ( )
USB Downstream Connector ( )
Keyhole for Security Lock
You can fasten a security lock and cable to prevent the monitor from being removed
without your permission.
USB Upstream Connector ( PC USB)
VGA(D-sub) Connector (VGA)
DisplayPort Connector (DP)
HDMI Connector (HDMI-1 4K 60p)
HDMI / MHL Connector (HDMI-2 / MHL)
HDMI Connector (HDMI-3)
Cable Holes
AC Connector
( : Alternating current)
(AC POWER IN)
Main Power Switch (POWER SWITCH)
* You can skip the Menu items and display an adjustment scale directly.
<Front>
<Back>
NOTE
NOTE
